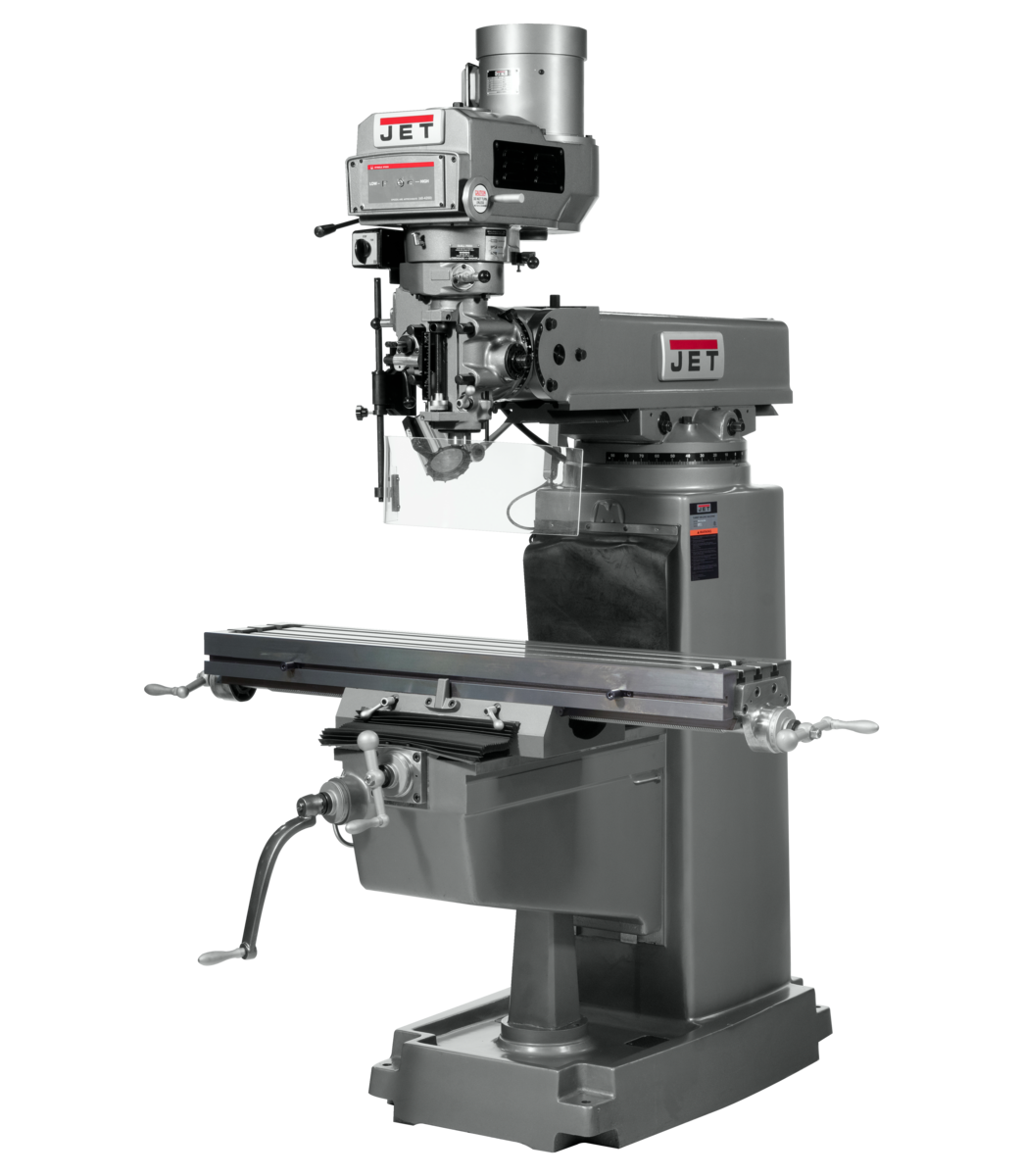

Jet JTM-1050VS2 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds 691206

Jet JTM-1050VS2 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds 691206 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee
• Heavy duty motor drive
• The JET JTM-1050VS2 features Certified Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. The spindle head is internally cooled to keep maintenance and repair needs down. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Precision bored and honed milling head
• Tolerance test sheet included
• Specification: Value
• Powerfeed: X and Y-Axis
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 2
• Table Size (L x W) (In.): 10 x 50
• Weight (Lbs.): 2900
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 19
• Distance Spindle to Column (Max.) (In.): 26
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 70 – 3,800
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 35
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 720
• Travel of Knee (In.): 14-1/4
• Travel of Ram (In.): 20-1/2
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Height: 87.0000
• Length: 63.7500
• Weight: 2900.0000
• Width: 95.7500

Specifications

• Manufacturer: JET
• SKU: JT9-691206
• UPC: 662755513619
• Shipping Method: LTL Freight
• Weight: 2,900 lb
• Dimensions: 63.75 × 95.75 × 87 in
• Country of Origin: Taiwan
