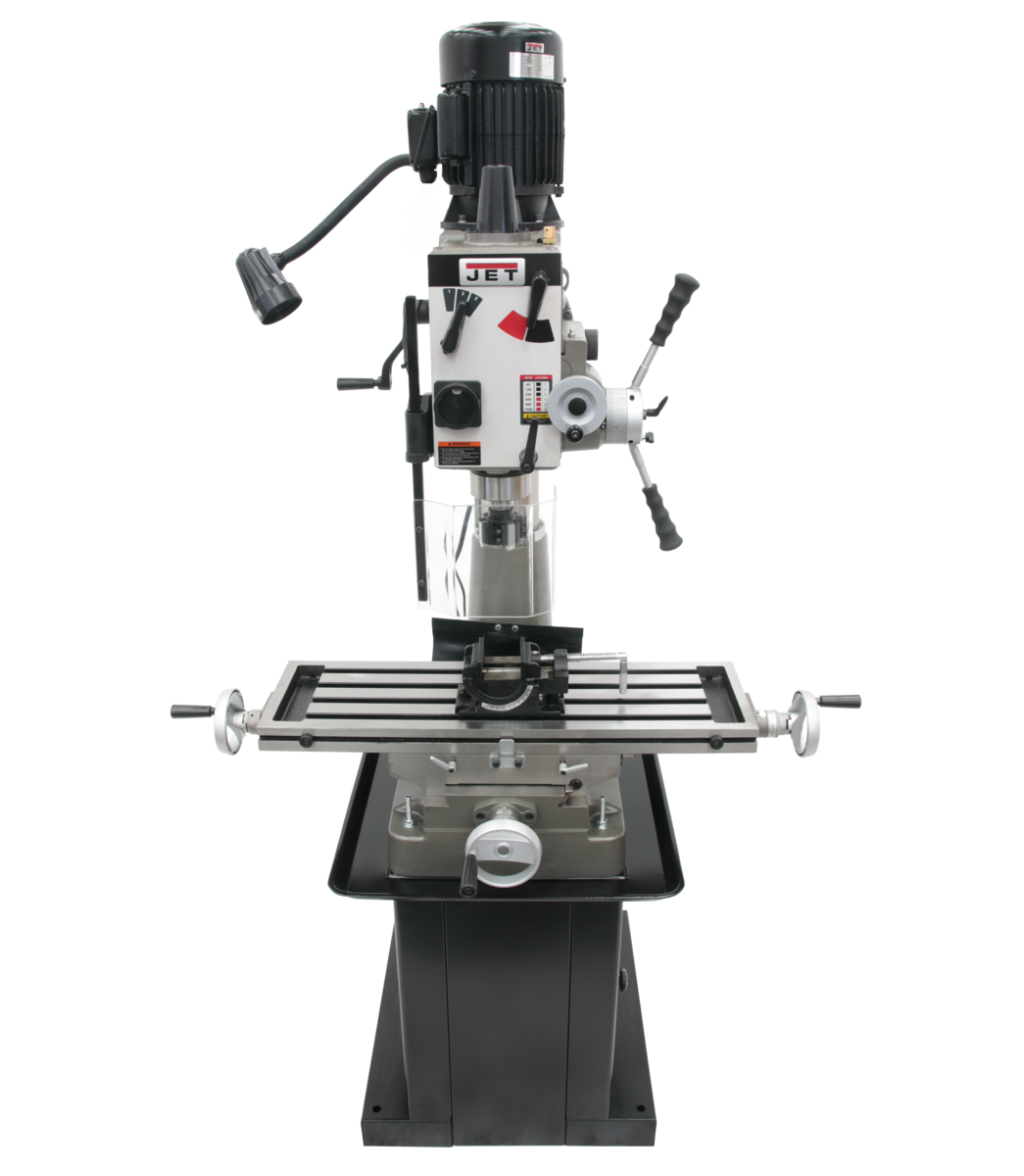

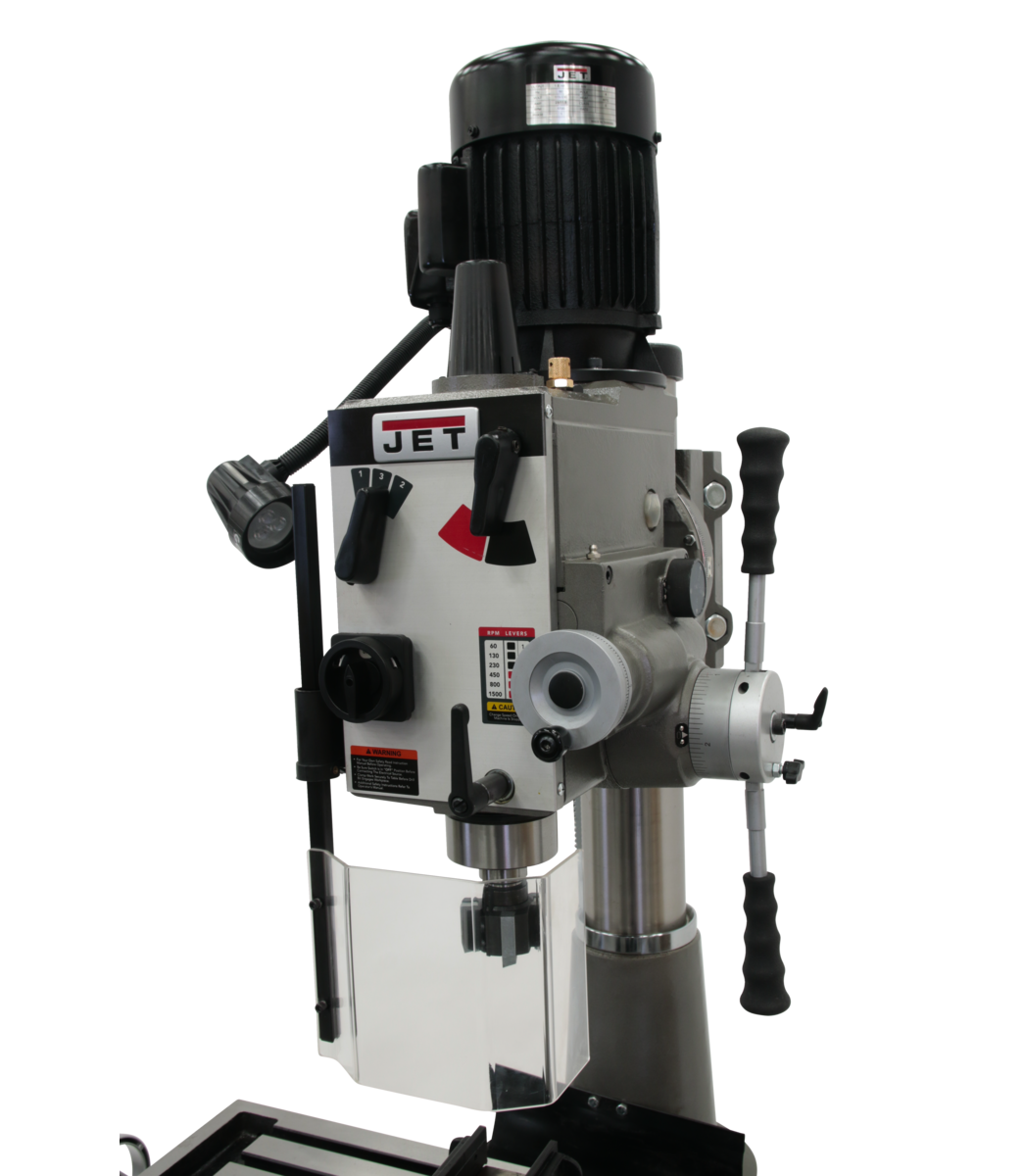

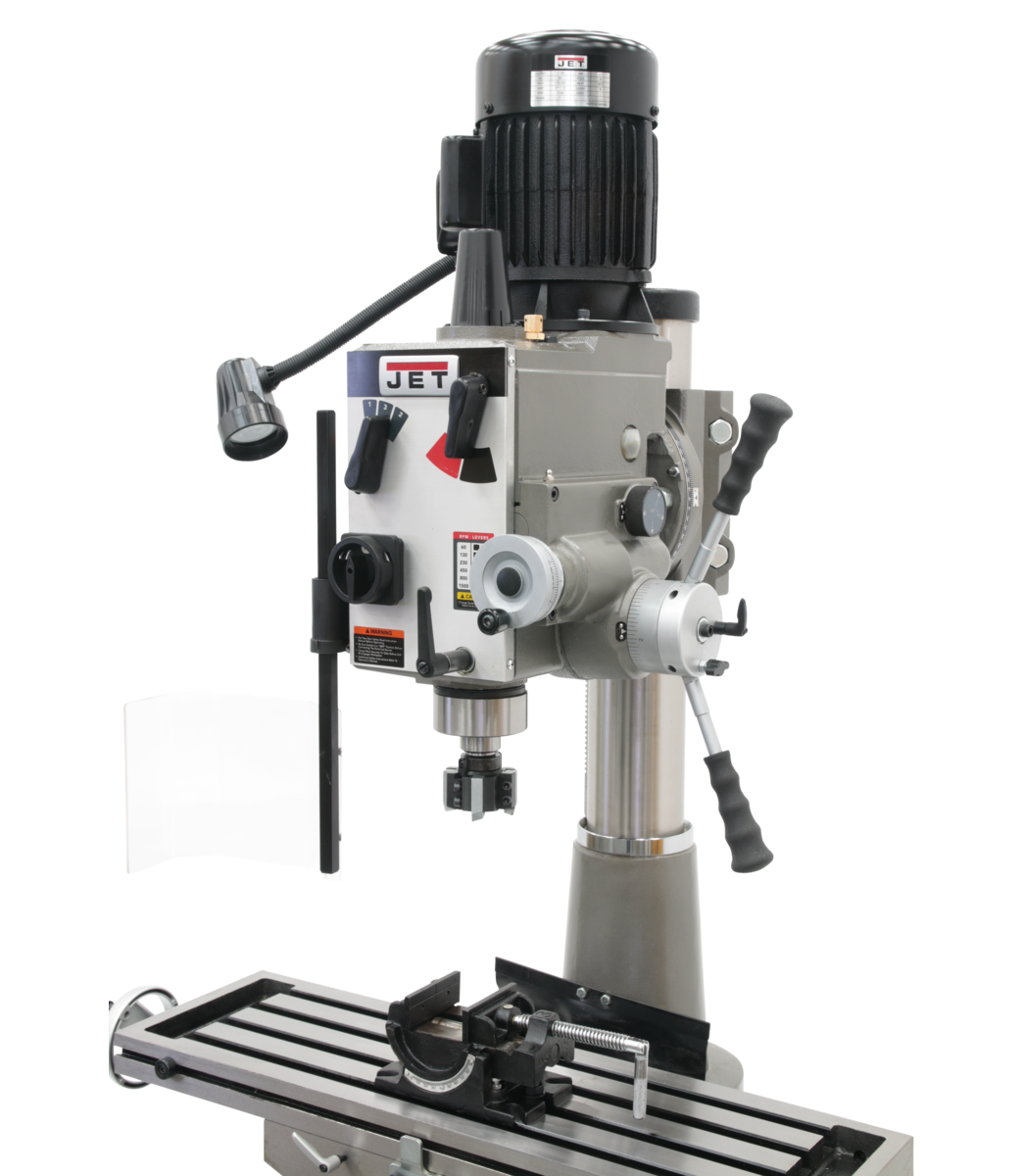

Jet JMD-40GHPF Geared Head Mill/Drill with Power Downfeed 351041

Jet JMD-40GHPF Geared Head Mill/Drill with Power Downfeed 351041 is a JET product in the Milling Machines collection.

Product Details

• Calibrated fine down feed built in
• CSA/CUS Certified
• Easy to read internal depth gauge
• Full power to the cutting tools through 6 speed geared head
• Heavy-duty design allows for a variety of precision drilling applications
• Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.
• Mill Drill Stand, p/n 350045, shown in some images, is optional
• Milling table allows for movement
• Power Downfeed standard
• R8 spindle allows use of all mill tooling
• Rapid spindle speed changes through quick-select gear shift levers
• Specification: Value
• Swing (In.): 21
• Spindle Travel (In.): 5
• Number of Spindle Speeds: 6
• Face Mill Capacity (In.): 4
• Table Size (L x W) (In.): 8-1/4 x 28-3/4
• Weight (Lbs.): 721
• Spindle Taper (In. x TPI): R8
• Max Distance Spindle to Table (In.): 15-3/4
• Spindle Travel Auto (In.): 4-1/2
• Quill Diameter (In.): 3
• Range of Spindle Speeds (RPM): 65-1550
• Table Longitudinal Travel (In.): 20-1/2
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 24-1/4 x 15-15/16
• Motor (HP): 1-1/2HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
• Height: 55.1100
• Length: 43.7000
• Weight: 721.0000
• Width: 32.0000

Specifications

• Manufacturer: JET
• SKU: JT9-351041
• UPC: 731325512854
• Shipping Method: LTL Freight
• Weight: 721 lb
• Dimensions: 43.7 × 32 × 55.11 in
• Country of Origin: Taiwan
