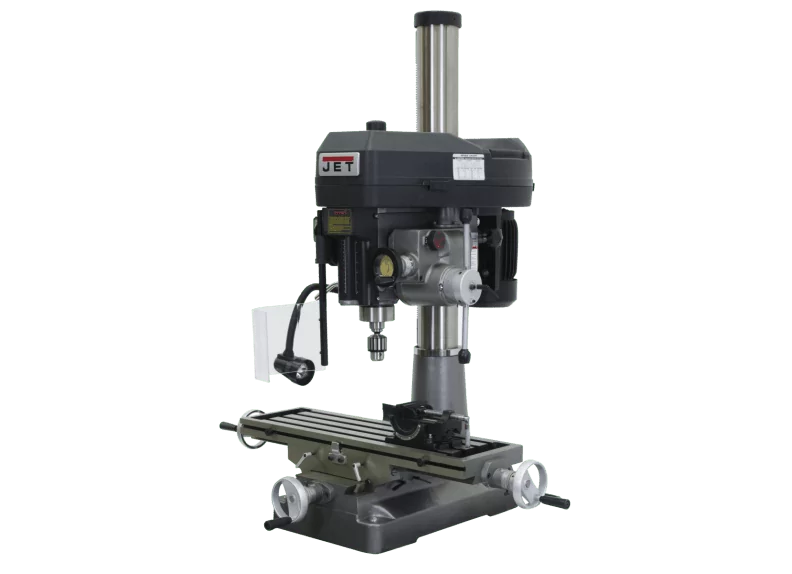

Jet JMD-18PFN 115V Single Phase Mill/Drill with X-Axis Table Powerfeed JT9-350140

Jet JMD-18PFN 115V Single Phase Mill/Drill with X-Axis Table Powerfeed JT9-350140 is a JET product in the Milling Machines collection.

Product Details

• Face mill capacity: 3”
• Max distance spindle to table: 28”
• Number of spindle speeds: 12
• Table size: 9½” x 31¾”
• Description
• Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capacity
• Features
• ½” drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read internal depth gauge
• Heavy-duty power downfeed with manual feed
• One-piece cast iron column for added support
• Positive quick-stop knob and easy to read internal depth gauge
• UL Listed
• Specifications
• Prop 65: Cancer and Reproductive Harm
• Quill diameter: 3”
• Quill down feed rates: 0.0047, 0.007, 0.001 IPR
• Range of spindle speeds: 150-3,000 RPM
• Spindle taper: R-8
• Spindle travel: 5”
• T-slot centers: 1-13/16”
• T-slots number and size: 4 and 5/8”
• Table longitudinal travel: 20½”
• Work table weight capacity: 400 lbs
• Electrical Requirements: 115V Single Phase 2HP
• Machine Dims: 47” x 40” x 51”
• Approx weight: 700 lbs
• Optional Add-Ons
• Mill Dill Stand (sku 320020)

Specifications

• Manufacturer: JET
• SKU: JT9-350140
• UPC: 662755717741
• Shipping Method: LTL Freight
• Weight: 750 lb
• Dimensions: 55 × 50 × 55 in
