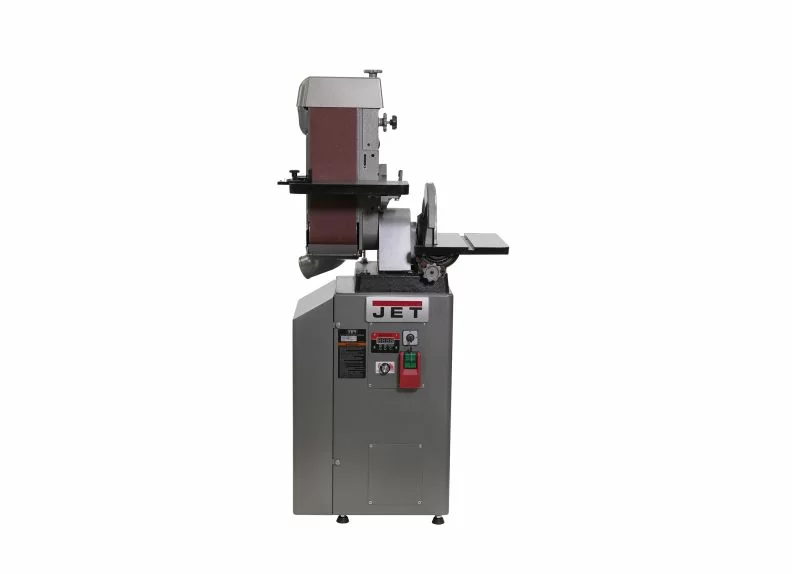

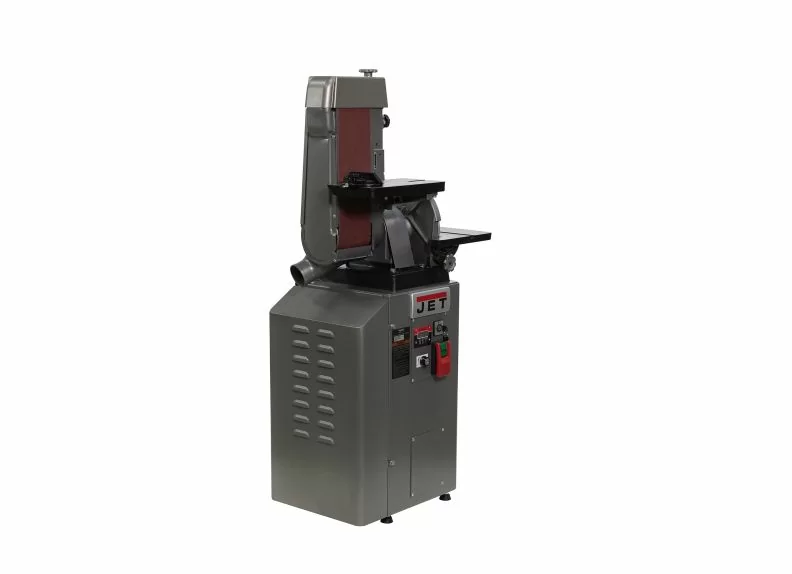

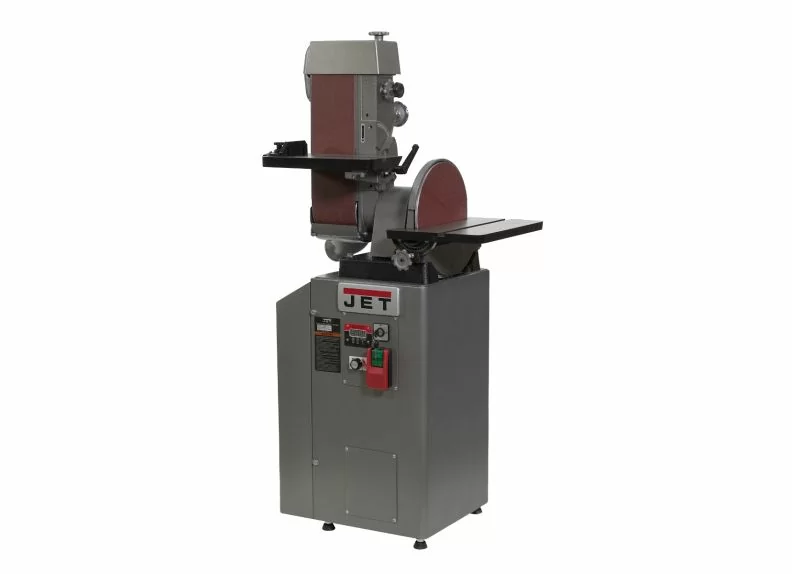

Jet J-64812VS 230V Three Phase Combination 6” x 48” Variable-Speed Belt and 12” Disc Finishing/Grinding Machine JT1-112

Jet J-64812VS 230V Three Phase Combination 6” x 48” Variable-Speed Belt and 12” Disc Finishing/Grinding Machine JT1-112 is a JET product in the Grinding & Sanding collection.

Product Details

• Belt speed: 2200-4400 sfpm
• Belt table tilt: 45° out
• Disc table size: 16½” x 9”
• Disc diameter: 12”
• Description
• JET’s variable speed combination Belt & Disc machine conveniently grinds and finishes delivering the top characteristics and benefits of both a belt and a disc finishing system in one machine. This workhorse features a compact footprint (20.5”x27”x58”)and provides a variable speed solution to finish or grind a wider range of material including mild steel, aluminum, and even plastics. Remove material with precision thanks to speeds ranging from 2200-4000 SFPM (belt) and 1547-2813 RPM (disc). Both worktables tilt 45 degrees for added versatility and are quickly dialed in with the included measurement gauge. Jet has fine-tuned the design for reduced vibration and a quieter operating level to make your next project nearly effortless.
• Features
• Variable speed range from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc) allows users to finish or grind a wider range of material including mild steel, aluminum, and even plastic by changing abrasive belt & disc grits
• The belt head is capable of both vertical and horizontal adjustments, allowing operation at any angle
• Contour finishing, mitering, flat finishing, beveling, and precision finishing are simple
• The drums are fully enclosed, and the sanding belt is guarded for safety
• Maximizing the operator’s safety, the inverter allows for quick stopping of the belt and disc
• Variable position locks that can be used to create a sturdy work surface
• A fully machined and balanced disc runs smoothly without any vibration
• The heavy-duty cast iron platen is both adjustable and removable
• The standard die-cast aluminum miter gauge allows for easy attainment of both plain and compound miters
• Both the dust collector and dust chute are adjustable to maximize collection
• Specifications
• Belt size: 6” x 48”
• Belt table size: 7-1/16” x 14-11/16”
• Belt grit: 80.0000
• Motor speed: 1720 rpm
• Dust port size: 3”
• Prop 65: Cancer and reproductive harm
• Wheel diameter: 12”
• Dust port outside diameter: 3¼”
• Electrical Requirements: 230V Three Phase
• Machine Dims: 31½” x 22-27/32” x 49-3/16”
• Approx weight: 350 lbs

Specifications

• Manufacturer: JET
• SKU: JT1-112
• UPC: 662755526299
• Shipping Method: LTL Freight
• Weight: 385 lb
• Dimensions: 35 × 25 × 55 in
