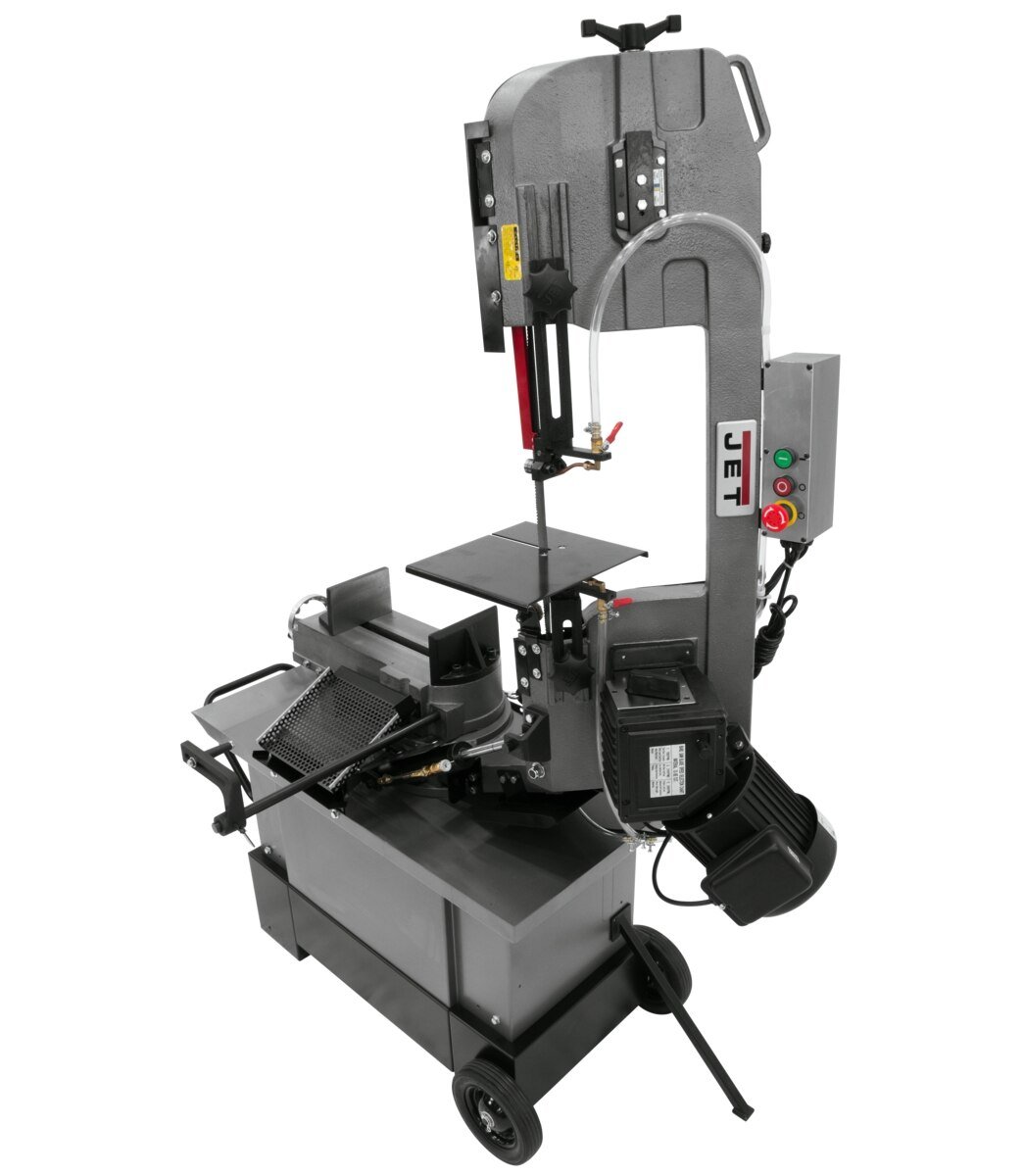

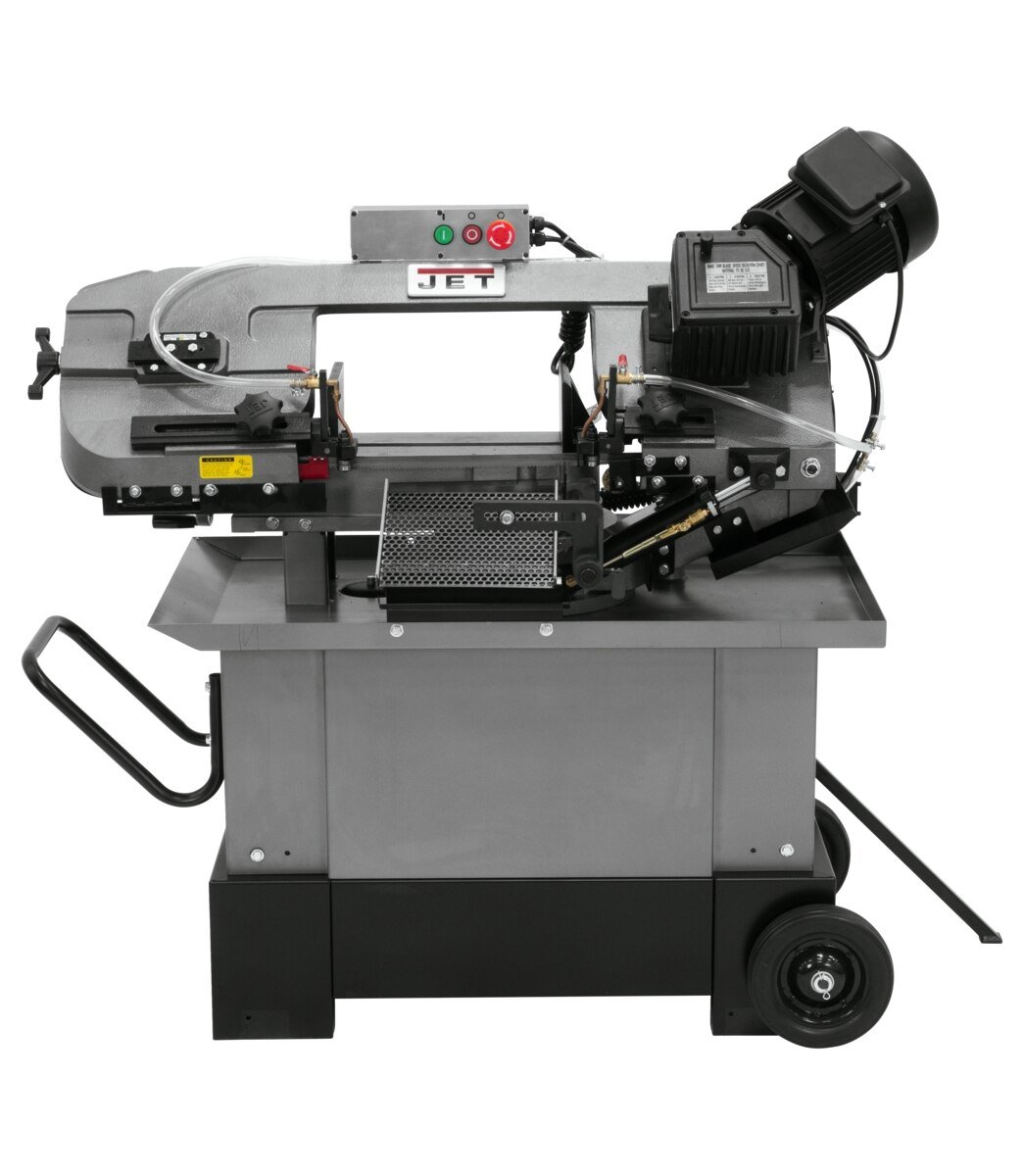

Jet HVBS-710G, 7″ x 10-1/2″ Horizontal/Vertical Mitering Geared Head Bandsaw 413452

Jet HVBS-710G, 7″ x 10-1/2″ Horizontal/Vertical Mitering Geared Head Bandsaw 413452 is a JET product in the Band Saws collection.

Product Details

• Adjustable Material Stop
• Built-in, self-propelled blade brush extends blade life
• Fully adjustable hydraulic downfeed system
• Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
• Heavy-duty cast iron saw bow and bed
• JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
• Large 8" wheels and handle for easy movement
• Mitering head swivels to cut any angle 0° – 45° while the work piece remains secured
• Quick-positioning vise with fully adjustable jaws
• Wheels and handle for easy movement
• Specification: Value
• Round at 45 Degrees (In.): 4
• Round at 90 Degrees (In.): 7
• Rectangle at 45 Degrees (In.): 4-3/4 x 4
• Rectangle at 90 Degrees (In.): 7 x 10-1/2
• Vise Swivels (Deg.): 45°
• Weight (Lbs.): 396
• Blade Wheel Diameter (In.): 11-3/4
• Bed Height (In.): 23
• Motor (HP): 1 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 51 x 22-1/2 x 41
• Prewired Voltage (V.): 115
• Drive: Geared Head
• Height: 43.0000
• Length: 51.0000
• Width: 22.5000
• Weight: 462.0000

Specifications

• Manufacturer: JET
• SKU: JT9-413452
• UPC: 731325193589
• Shipping Method: LTL Freight
• Weight: 462 lb
• Dimensions: 51 × 22.5 × 43 in
• Country of Origin: Taiwan
