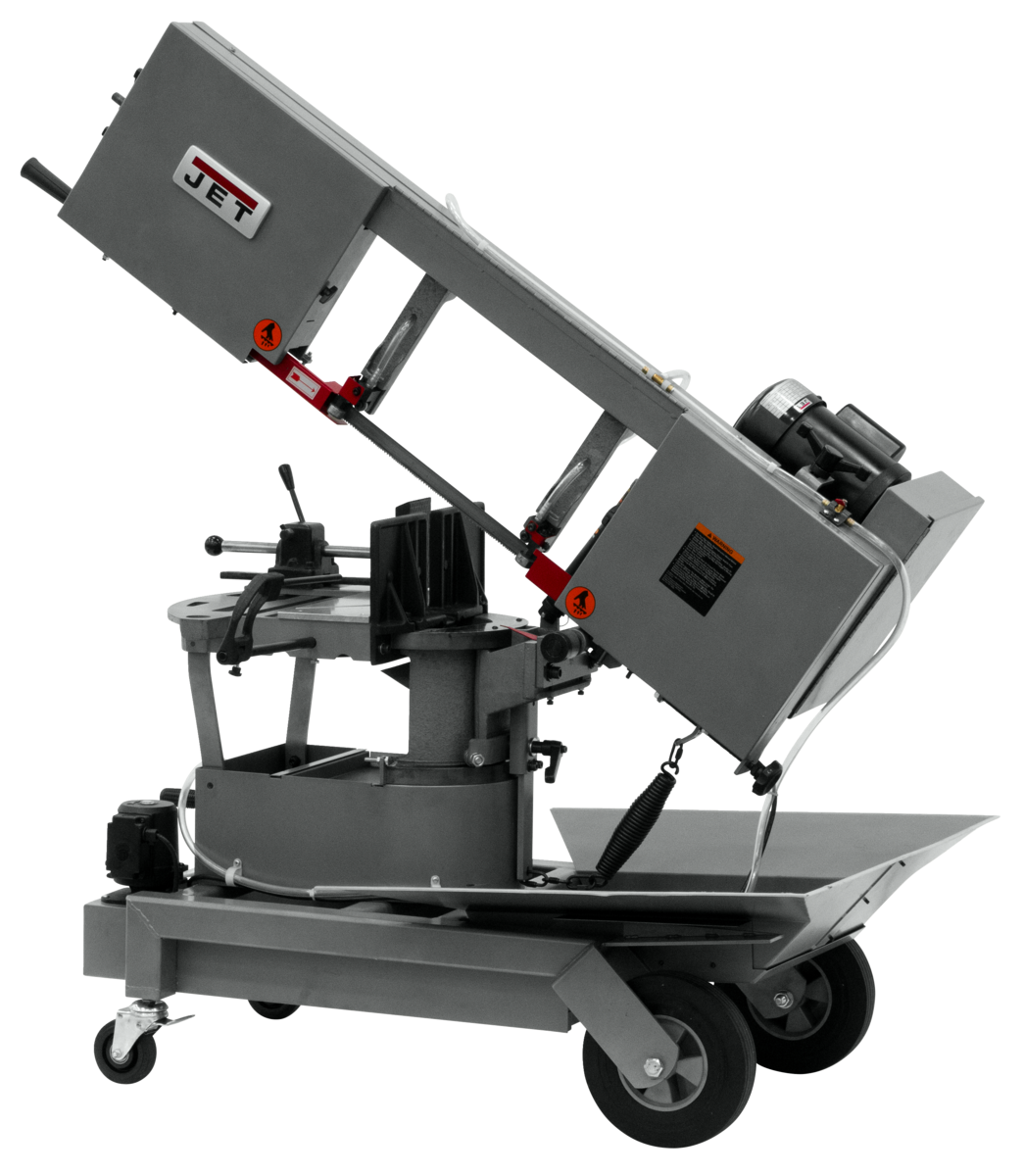

Jet HVBS-10-DMWC 10” Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph 424465

Jet HVBS-10-DMWC 10” Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph 424465 is a JET product in the Band Saws collection.

Product Details

• Adjustable vise
• Automatic shut off switch stops the sawing process
• Blade is fully guarded for Operator safety
• Built-in, self-propelled blade brush prevents chip build up in blade guides
• Head is pressure controlled by a hydraulic cylinder
• The JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.
• Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
• Large 16" x 10" Vertical cutting table
• Power switch with safety key prevents accidental start up
• Protractor for fast and accurate angle cutting
• Removable chip tray
• Specification: Value
• Vertical Cutting Capacity: 13 x 10
• Round at 45 Degrees (In.): 6-1/2
• Round at 90 Degrees (In.): 10
• Rectangle at 45 Degrees (In.): 8 x 5-1/2
• Rectangle at 90 Degrees (In.): 8 x 9
• Weight (Lbs.): 558
• Head Movement (Deg.): +/- 45
• Maximum Vise Opening (In.): 10
• Table Height (In.): 30 13/32
• Motor (HP): 1HP, 115V, Single Phase
• Overall Dimensions (L x W x H) (In.): 72 x 34.5 x 46
• Height: 46.0000
• Length: 72.0000
• Width: 34.5000
• Weight: 558.0000

Specifications

• Manufacturer: JET
• SKU: JT9-424465
• UPC: 731325513516
• Shipping Method: LTL Freight
• Weight: 558 lb
• Dimensions: 72 × 34.5 × 46 in
• Country of Origin: Taiwan
