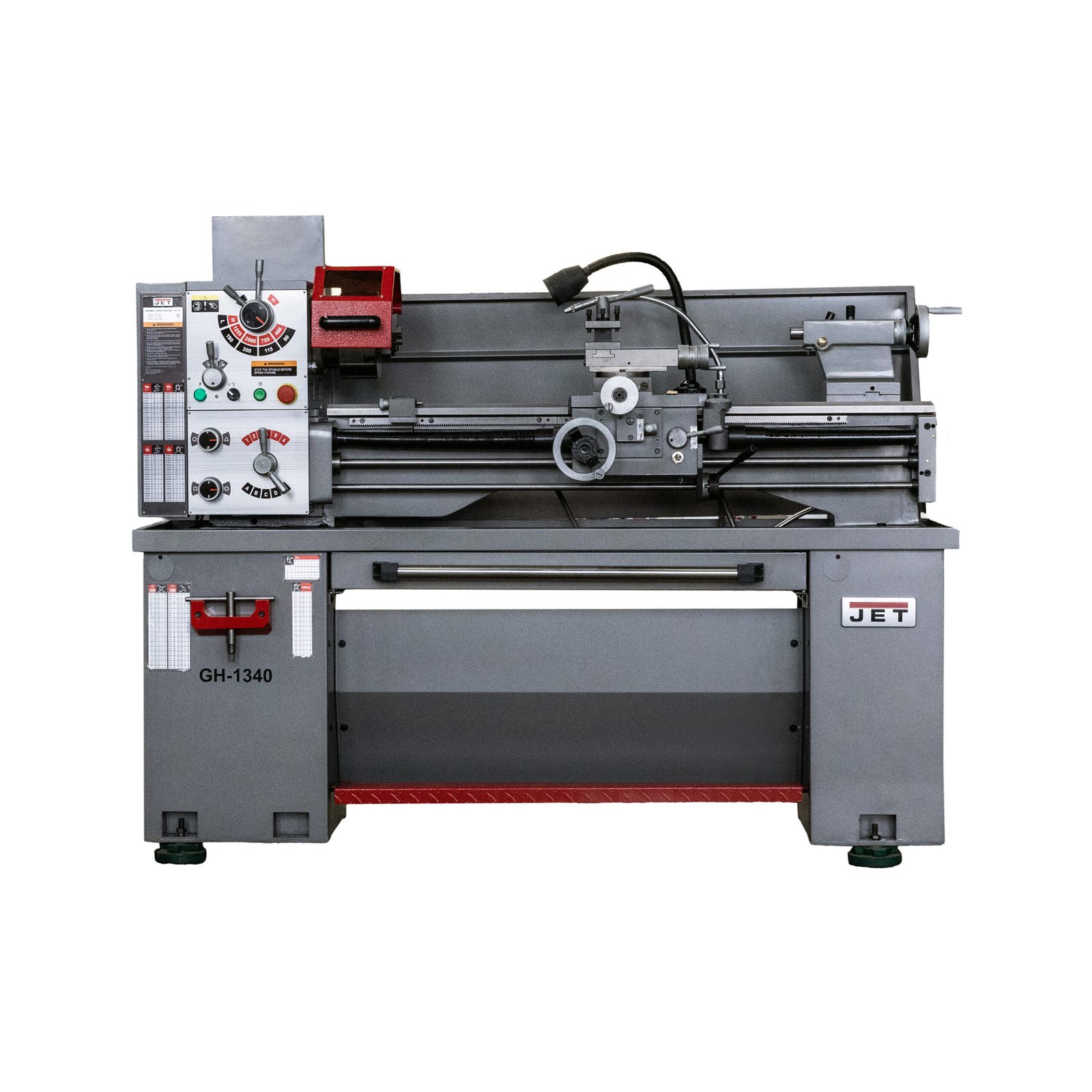

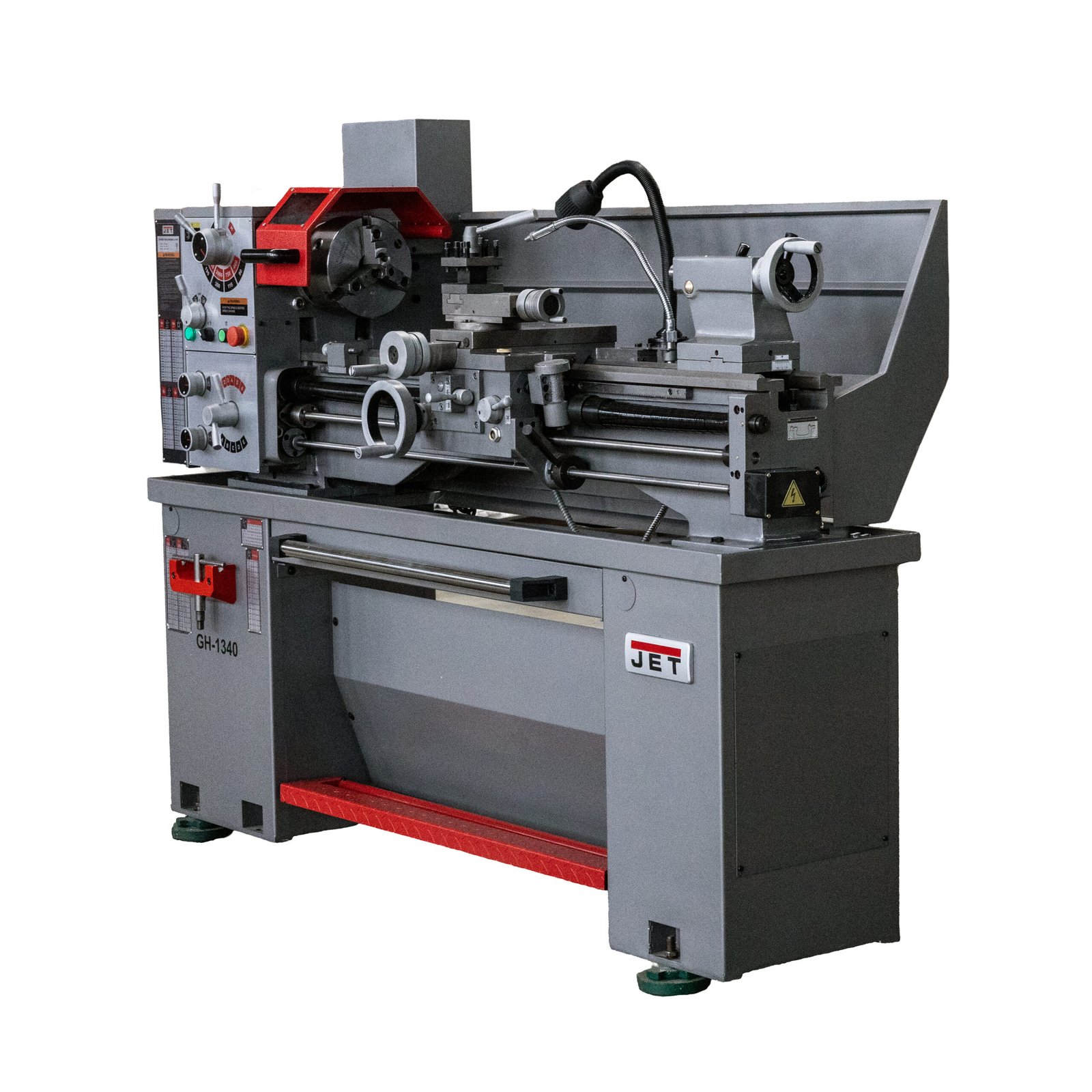

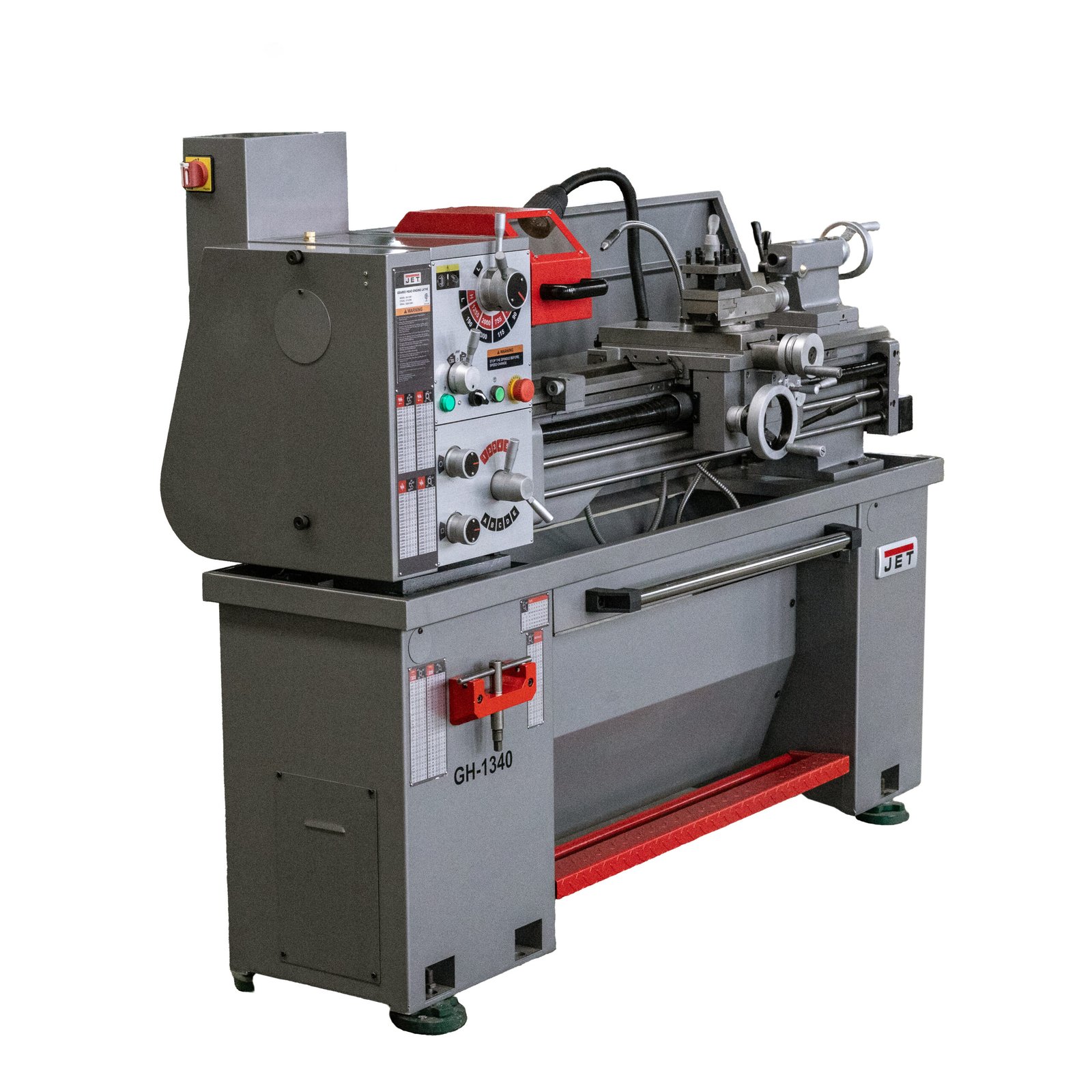

Jet GH-1340 13” x 40” Single Phase Gear Head Lathe with Newall NMS300 DRO JT1-3256

Jet GH-1340 13” x 40” Single Phase Gear Head Lathe with Newall NMS300 DRO JT1-3256 is a JET product in the Lathes collection.

Product Details

• 2” Spindle Bore
• 8 Spindle Speeds (90–2000 RPM)
• 2HP 230V 1 PH Motor
• 2-Axis Digital Readout (DRO)
• Description
• The JET GH-1340 Gear Head Lathe is built for shops that demand precision, durability, and operator safety without compromise. Designed for MRO, fabrication, and precision machining environments, this 13” x 40” manual lathe delivers powerful cutting performance, industry-leading safety features, and the support backing of JET’s nationwide service network.
• With a large 2” spindle bore, rigid cast iron construction, and 8-speed gear head drive, the GH-1340 is engineered for reliable turning across a wide range of materials and applications.
• Built for Safer Operation
• Unlike many competitor machines that treat safety as an add-on, the GH-1340 includes critical safety features as standard equipment:
• JET Electronic Chuck Key Holder (E-Chuck Key) to reduce the risk of leaving a key in the chuck
• Foot Brake for rapid spindle stopping
• Emergency Stop
• Chuck Guard
• Leadscrew Cover to prevent debris buildup and reduce maintenance issues
• UL 987 Certified Electrical System
• These integrated safety features help reduce shop-floor hazards and protect both new and experienced operators.
• Productivity That Maximizes Uptime
• The GH-1340 is designed to keep your shop running:
• Rigid Cast-Iron Base for reduced vibration and improved accuracy
• 2 HP Motor (230V, 1 Phase) for dependable cutting power
• 8 Spindle Speeds (90–2000 RPM) for material flexibility
• Integrated Coolant System
• Full-Length Splash Guard
• Chip Tray for Easy Cleanup
• Halogen Work Light
• Every GH-1340 undergoes a 30-Point Pre-Shipment Inspection to verify setup and operation before it reaches your shop, reducing installation time and startup headaches.
• Backed by a 2-Year Parts & Labor Warranty, the GH-1340 offers predictable ownership costs and long-term reliability.
• Industries Served
• MRO (Maintenance, Repair & Operations)
• Utilities
• Institutional maintenance shops
• Manufacturing facilities
• Ideal for repairing and reverse-engineering cylindrical components.
• Fabrication & Contract Shops
• Construction
• Infrastructure
• Job shops
• Perfect for turning, facing, and threading custom components.
• Precision Machining
• Aerospace
• Automotive
• Defense
• Medical device manufacturing
• Technical education programs
• Engineered for repeatable accuracy and reliable performance.
• Why Choose the JET GH-1340?
• Shops choose JET because the GH-1340 solves real-world frustrations:
• Safer standard features — not costly add-ons
• Verified electrical compliance (UL 987 Certified)
• Larger 2” spindle bore for increased versatility
• 30-point inspection before shipment
• 2-year parts & labor warranty
• Nationwide service network with 250+ authorized service centers
• Features
• Large 2" spindle bore and 14" swing handle bigger stock and reduce secondary operations.
• Foot brake, chuck guard, lead screw cover, and JET e-chuck key holder come standard for controlled operation.
• Full-length splash guard, integrated coolant system, and chip tray contain chips and coolant.
• 2 HP motor and geared head drive system provide consistent torque across 8 speeds (90–1800 RPM).
• JET 30-Point Inspection ensures proper assembly, function testing, and safety validation.
• UL 987 Certified electrical system supports safer workplace installations.
• 2-year parts and labor warranty plus nationwide authorized service network.
• Included option: 2-Axis Digital Readout (DRO)
• Specifications
• Stock Number: JT1-2708
• Compound Slide Travel (In.): 3.9”
• Drive: Geared Head
• Length of Gap (In.): 7.5”
• Max Tool Size (In.): 5/8”
• Model Number: GH-1340
• Motor (HP): 2 HP, 230V, 1Ph
• Number of Inch Threads: 32
• Number of Longitudinal and Cross Feed Rates: 40/40
• Number of Metric Threads: 32
• Number of Spindle Speeds: 8
• Overall Dimensions (L x W x H) (In.): 75.6” x 29.1” x 47”
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0032”-0.1068”
• Range of Inch Threads (TPI): 4-56
• Range of Longitudinal Feeds (IPR): 0.0011” – 0.0367”
• Range of Metric Threads: 0.4-7mm
• Range of Spindle Speeds (RPM): 90-2000
• Size: 13 x 40
• Spindle Bore (In.): 2”
• Spindle Mount: D1-5
• Spindle Taper with Sleeve: MT-4
• Style (Type): Bench – Geared Head
• Swing Over Bed (In.): 13”
• Swing Over Cross Slide (In.): 8.7”
• Swing Through Gap (In.): 16.9”
• Warranty: 2 Years
• Width of Bed (In.): 7.3”
• Bed Height: 11.41”
• Center Height: 6.5”
• Cross Slide Travel: 6.7”
• Distance Between Centers: 39”
• Digital Readout (DRO): Yes
• Net weight (lbs): 1146
• Gross Weight (lbs): 1278

Specifications

• Manufacturer: JET
• SKU: JT1-3256
• UPC: 019907008842
• Shipping Method: LTL Freight
• Weight: 1,278 lb
• Dimensions: 77 × 30 × 59 in
• Country of Origin: China
• Warranty: 2 Years (Parts)
