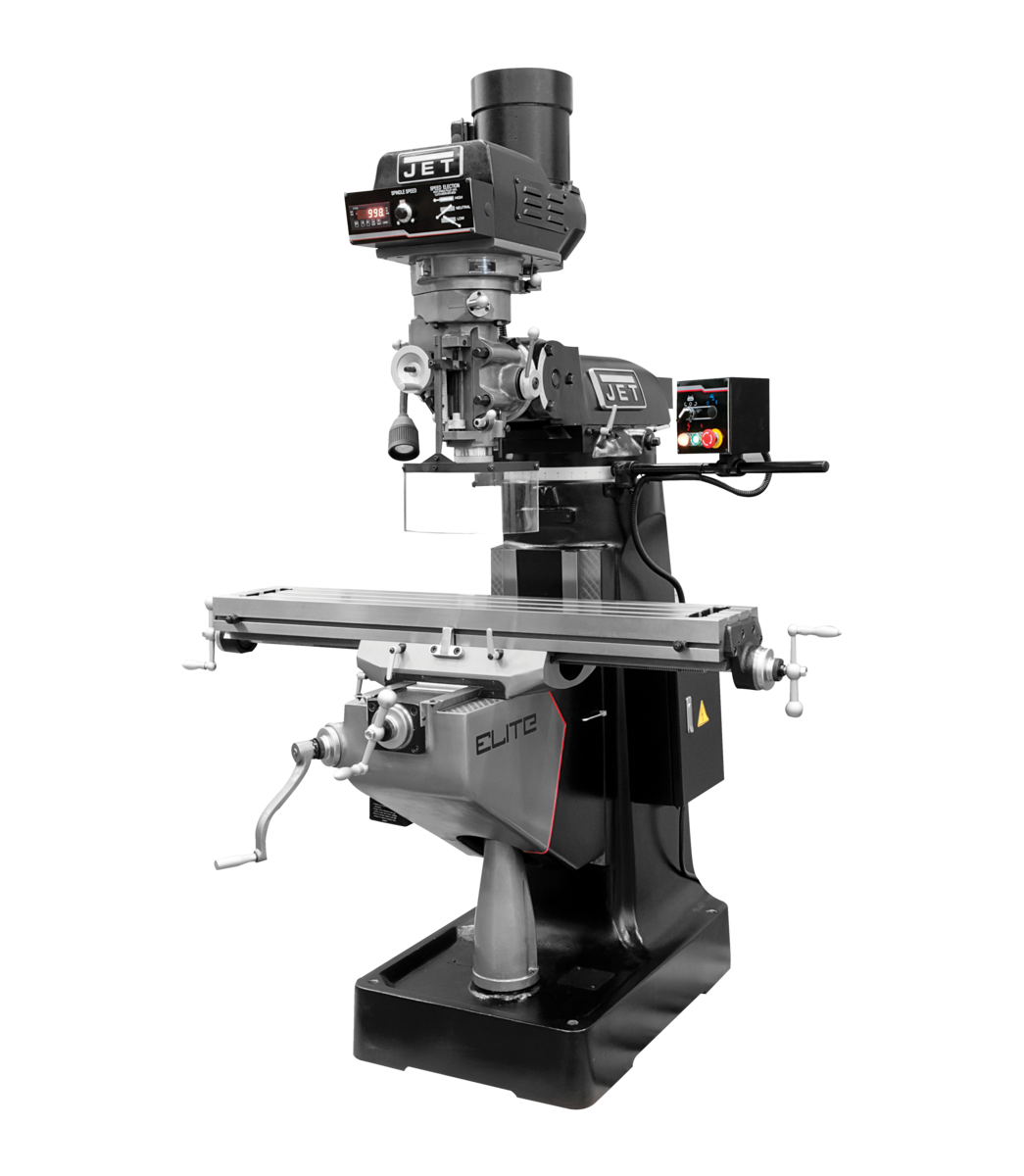

Jet EVS-949 Mill with 3-Axis ACU-RITE 303 (Knee) DRO 894344

Jet EVS-949 Mill with 3-Axis ACU-RITE 303 (Knee) DRO 894344 is a JET product in the Lathes collection.

Product Details

• Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
• Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
• Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
• Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
• The mounted control box houses major mill functions as well as an emergency stop button
• Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.
• The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
• Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): Variable Speed
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2300
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 18-3/4
• Amperage Draw @ 230V 3Ph: 18
• Distance Spindle to Column (Max.) (In.): 21-2/5
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 60 – 5,000
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Table Longitudinal Travel (In.): 36
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 550
• Travel of Knee (In.): 16
• Travel of Ram (In.): 14
• Motor (HP): 3 HP, 230V, 3 Ph
• Overall Dimensions (L x W x H) (In.): 68 x 63 x 84
• Height: 0.0000
• Length: 0.0000
• Weight: 2450.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-894344
• UPC: 731325287561
• Shipping Method: LTL Freight
• Weight: 2,450 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
