Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment 892466

Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment 892466 is a JET product in the Lathes collection.

Product Details

• 4-Position Carriage Stop
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine

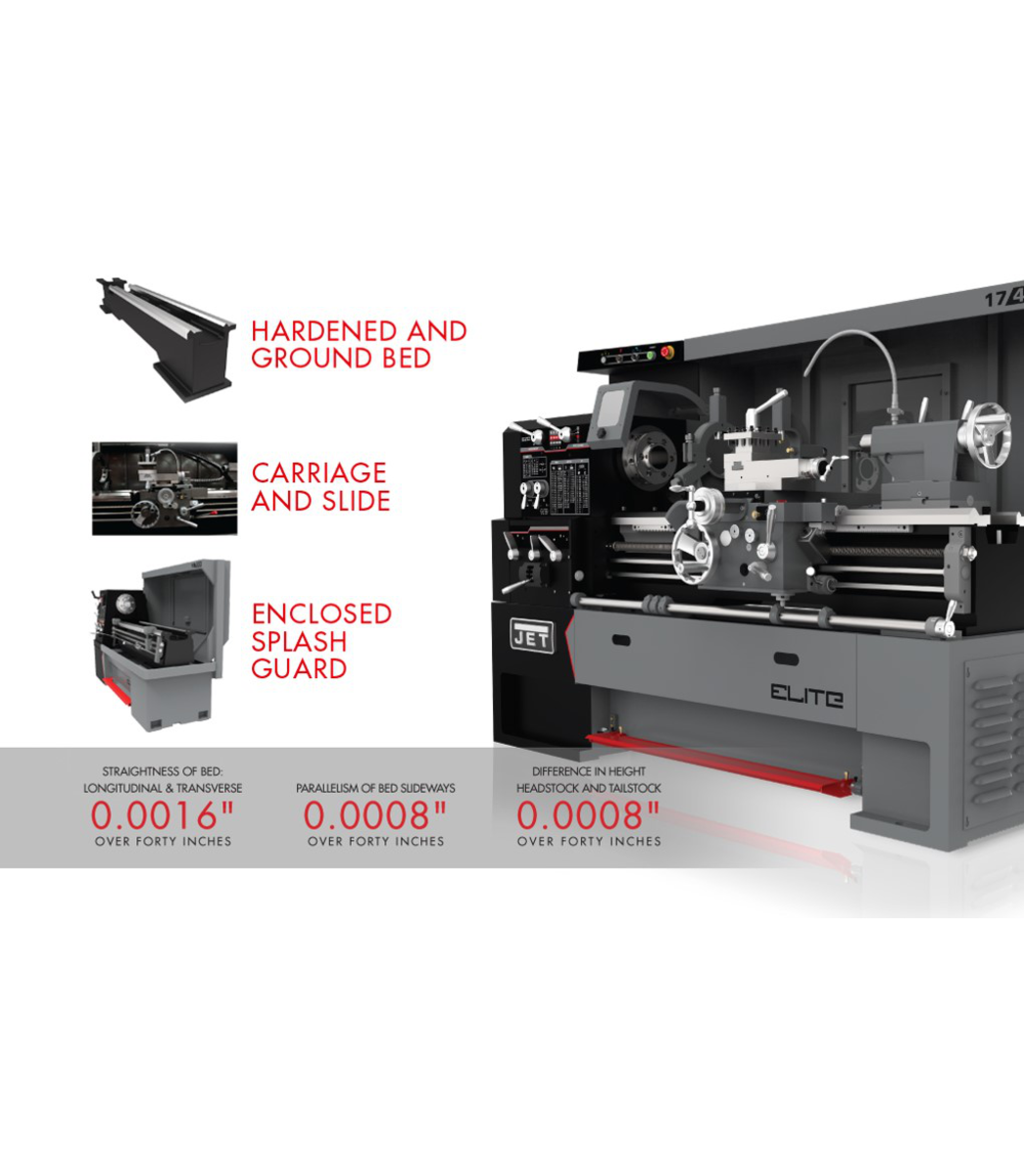

• Hardened and ground gears in headstock reduce vibration and deflection
• Inverter drive system provides infinitely variable spindle speeds
• Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
• LED RPM readout allows for precise turning speeds
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
• Specification: Value
• Size: 14 x 40
• Style (Type): ELITE EVS
• Swing Over Bed (In.): 14
• Swing Over Cross Slide (In.): 8-5/8
• Swing Through Gap (In.): 20
• Length of Gap (In.): 9
• Spindle Bore (In.): 1-1/2
• Spindle Mount: D1-4
• Weight (Lbs.): 1653
• Amperage Draw @ 230V 3Ph: 9
• Spindle Taper with Sleeve: MT-5
• Range of Spindle Speeds (RPM): 0 – 2,200
• Number of Longitudinal and Cross Feed Rates: 80
• Range of Longitudinal Feeds (IPR): 0.0012 – 0.0294
• Range of Cross Feeds (IPR): 0.0003 – 0.01
• Number of Inch Threads: 40
• Range of Inch Threads (TPI): 4 – 112
• Number of Metric Threads: 22
• Range of Metric Threads: 0.45 – 7.5
• Compound Slide Travel (In.): 4
• Cross Slide Travel (In.): 7
• Motor (HP): 3 HP, 230V, 3Ph
• Tailstock Spindle Travel (In.): 4-3/4
• Taper in Tailstock Spindle: MT-3
• Steady Rest Capacity (In.): 1/4 – 2-3/4
• Width of Bed (In.): 8-1/2
• Overall Dimensions (L x W x H) (In.): 77 x 30 x 58
• Drive: EVS
• Height: 0.0000
• Length: 0.0000
• Weight: 1940.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-892466
• UPC: 731325282870
• Shipping Method: LTL Freight
• Weight: 1,940 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
