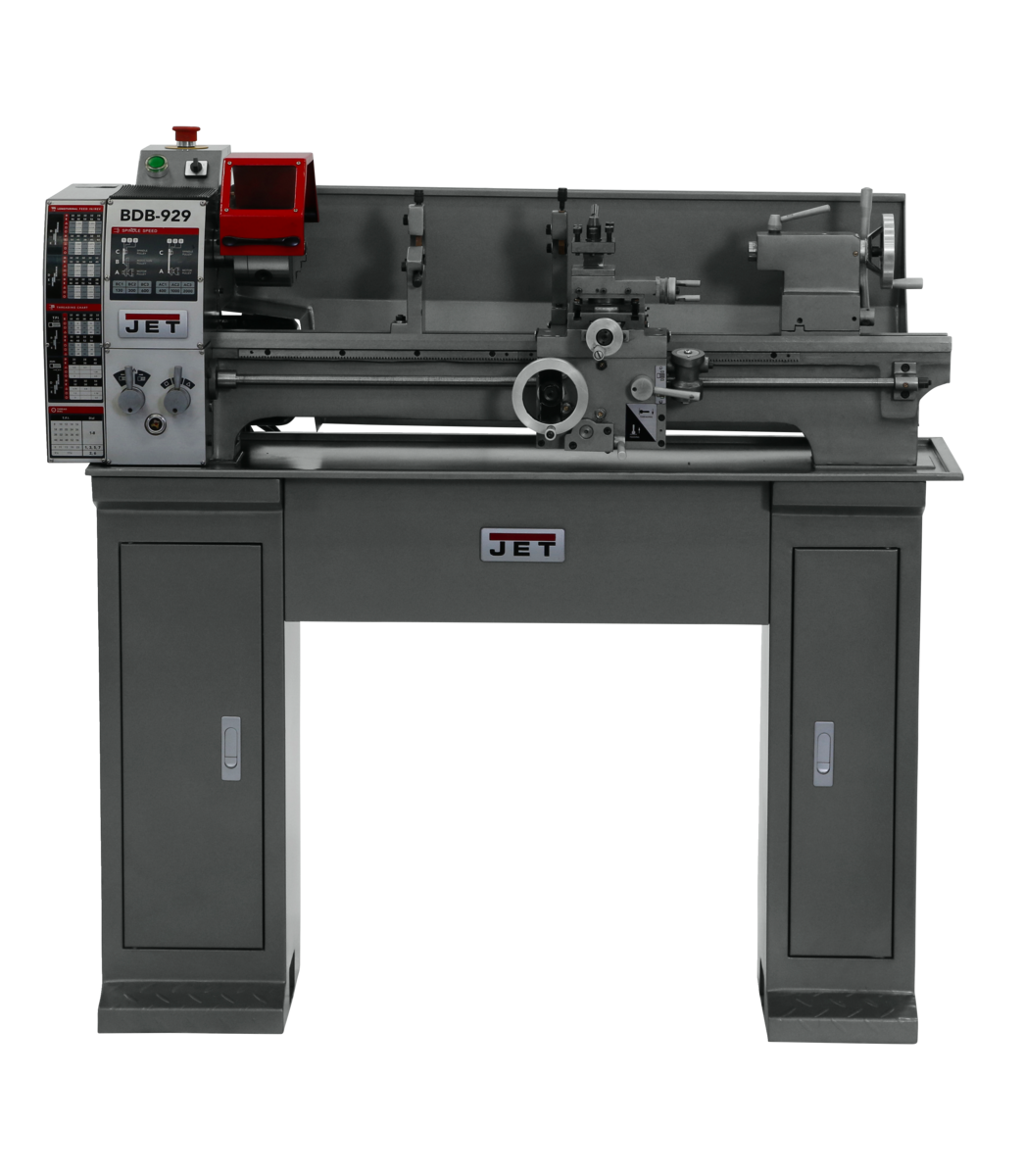

Jet BDB-929 Belt Drive Bench lathe with stand 321372K

Jet BDB-929 Belt Drive Bench lathe with stand 321372K is a JET product in the Lathes collection.

Product Details

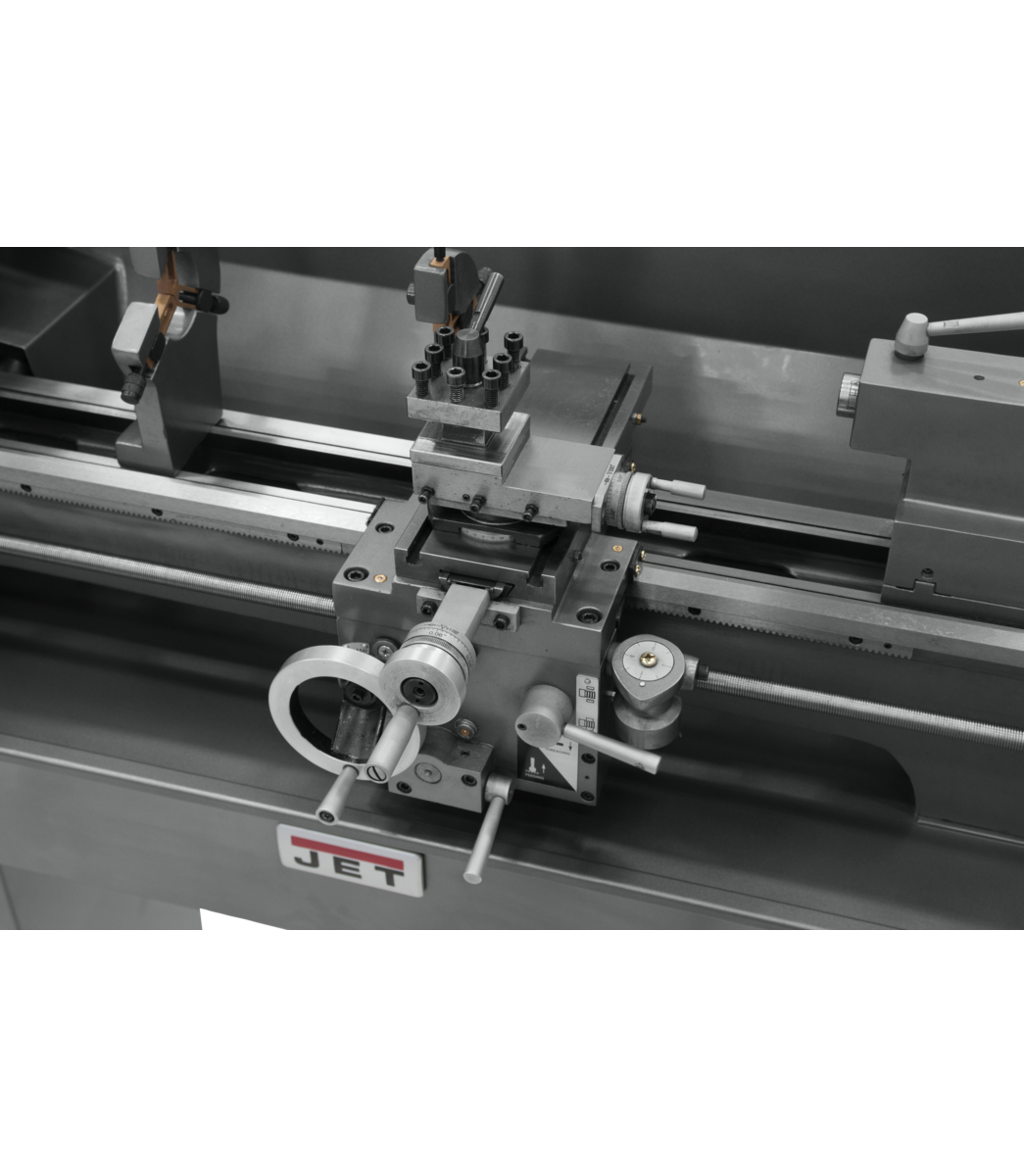

• Backlash adjustments provided throughout the carriage
• Emergency stop within easy reach of the Operator

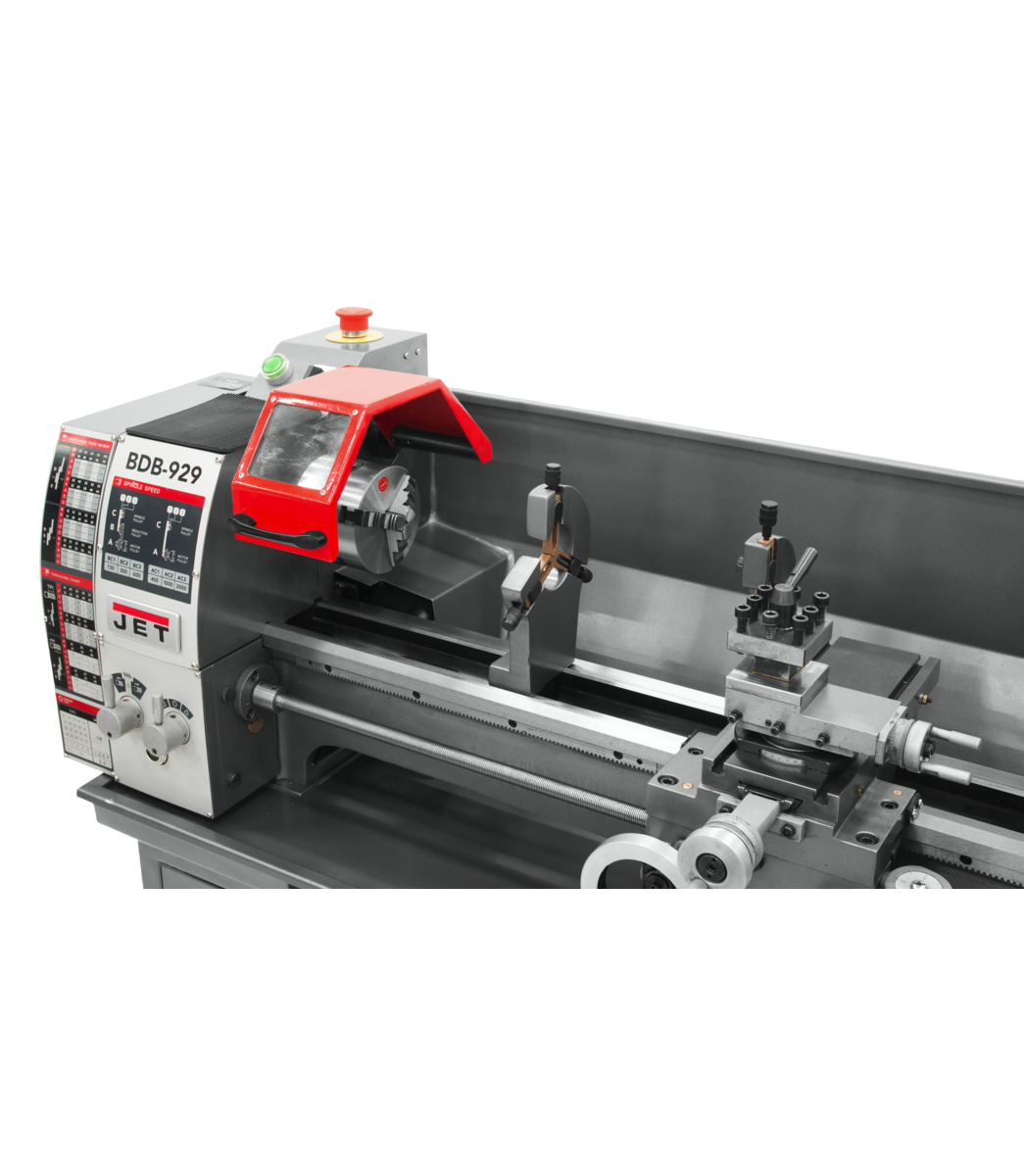

• Full Length Splash Guard
• Induction hardened and ground bedway
• Power longitudinal feed allows threading and reverse threading
• The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.
• Quick change gearbox provides wide range of inch and metric threads
• Reversing switch for added versatility
• Safety on/off switch
• Spindle supported by precision tapered roller bearings
• Standard Accessories
• Specification: Value
• Number of Spindle Speeds: 6
• Swing Over Bed (In.): 8-3/4
• Swing Over Cross Slide (In.): 5
• Spindle Bore (In.): 3/4
• Spindle Mount: 1-1/2 x 8TPI
• Weight (Lbs.): 287
• Range of Spindle Speeds (RPM): 130-2000
• Spindle Taper with Sleeve: MT-3
• Number of Longitudinal and Cross Feed Rates: 60
• Range of Longitudinal Feeds (IPR): 0.0006-0.0368
• Number of Inch Threads: 27
• Range of Inch Threads (TPI): 8 – 56
• Number of Metric Threads: 12
• Range of Metric Threads: 0.5 – 3.5
• Max Tool Size (In.): 1/2
• Compound Slide Travel (In.): 1-7/8
• Carriage Travel (In.): 26.5
• Motor (HP): 3/4 HP, 115V, 1PH
• Tailstock Spindle Travel (In.): 1-9/16
• Taper in Tailstock Spindle: MT-2
• Steady Rest Capacity (In.): 1-3/4
• Width of Bed (In.): 4-1/2
• Overall Dimensions (L x W x H) (In.): 51x22x20
• Height: 0.0000
• Length: 0.0000
• Weight: 402.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-321372K
• UPC: 731325733891
• Weight: 402 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: China
