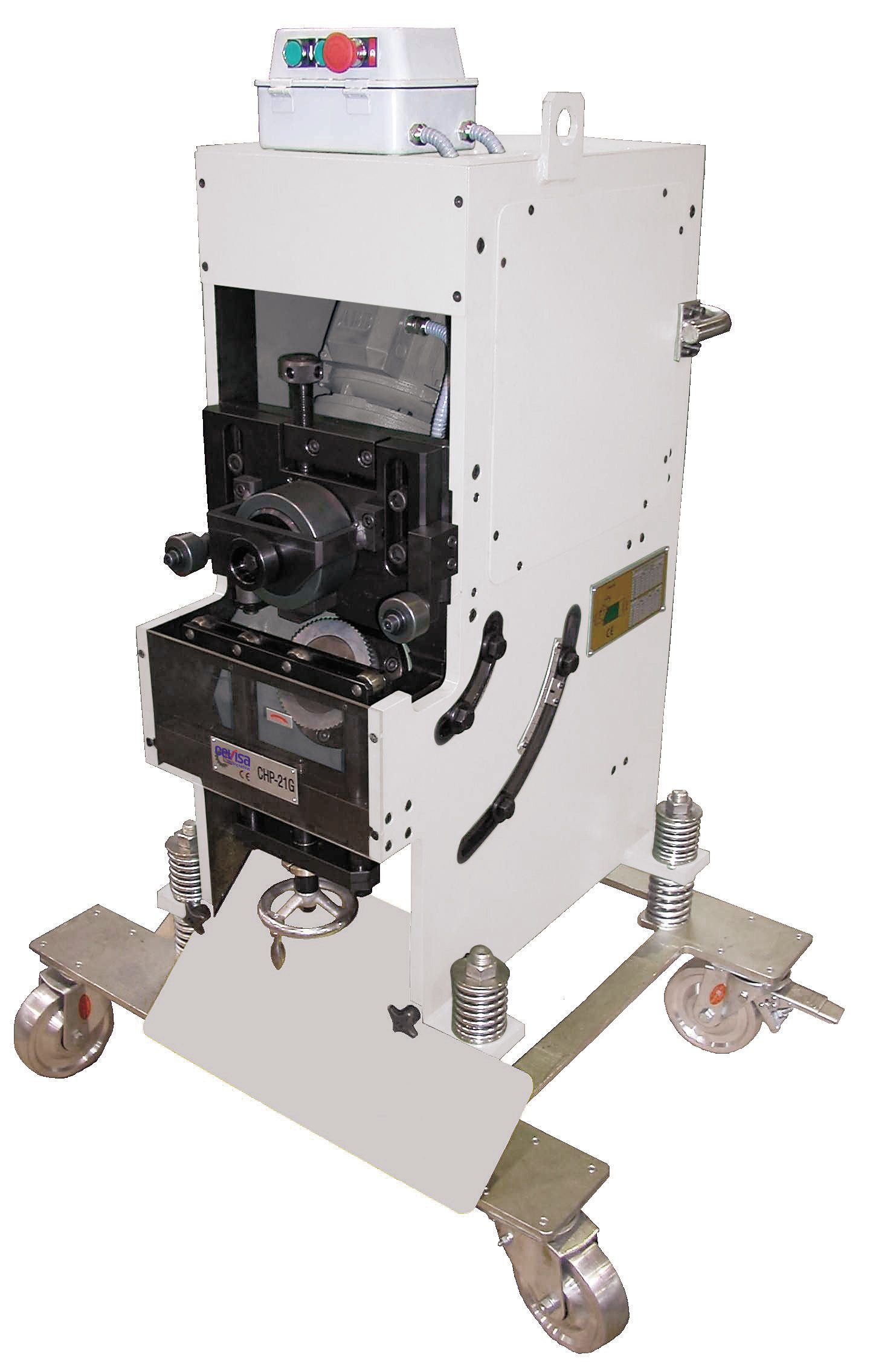

Heck Variable Angle Power Feed Beveling Machine PRO-21-G-INV

Heck Variable Angle Power Feed Beveling Machine PRO-21-G-INV is a Heck Industries Inc product in the Beveling Machines collection.

Product Details

• Angles from 20° – 45°
• Self-Propelled
• Direct Drive Gear Boxes – No Inefficient Belts
• Variable Angle by single hand wheel
• Description
• Introducing the most powerful beveler in the Cevisa Lineup, the PRO21G INV. This workhorse has the ability to bevel up to 7/8” and can handle material up to 2” thick. It features the ability to change the angle of bevel simply by adjusting the single hand wheel from 20 to 45°, and can also be inverted to work the bottom of the material. Great for applications where multiple angles are needed as the adjustment of this machine is very fast. No more replacement of tooling and rollers.
• This machine performs 6 feet/min. at a maximum bevel depth of .787 inches. It can handle material up to 2” thickness. A spring loaded trolley is included.
• Features
• Reversible
• Specifications
• Maximum Bevel Depth: .785″
• Maximum Material Thickness: 2.00″
• Minimum Material Thickness: .312″
• Bevel Speed: 5fpm
• Bevel-Angle: 20-45°
• Motor: 5hp
• Weight: 946 lbs

Specifications

• Manufacturer: Heck Industries Inc
• SKU: PRO-21-G-INV
• Shipping Method: LTL Freight
• Weight: 946 lb
