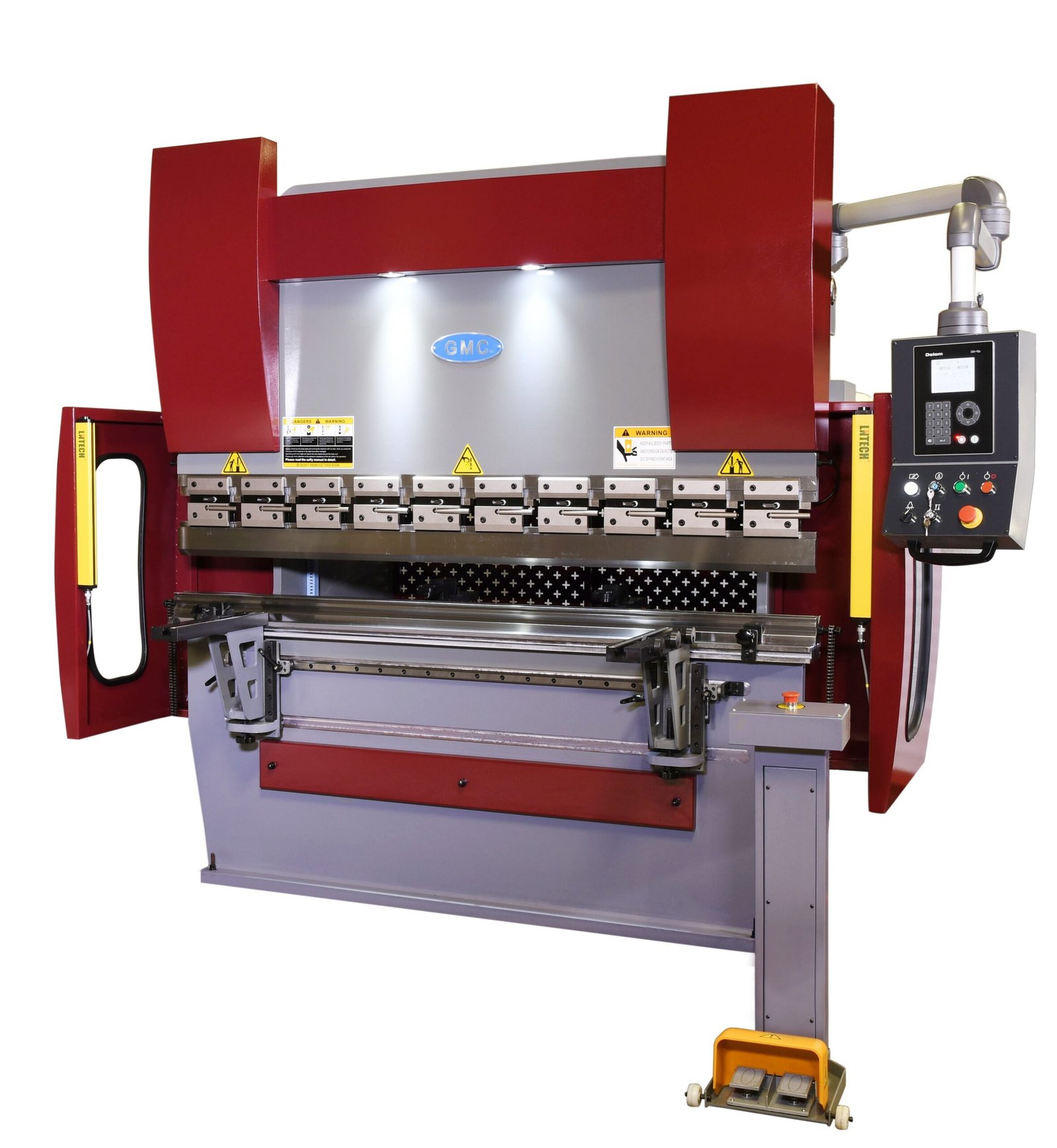

GMC Machinery 70 Ton 6’ 220V Three Phase Hydraulic Press Brake HPB-7006CNC

GMC Machinery 70 Ton 6’ 220V Three Phase Hydraulic Press Brake HPB-7006CNC is a GMC Machinery product in the Press Brakes collection.

Product Details

• Maximum pressure: 70 Tons
• Bending length capacity: 80” ( 6’8”)
• Distance between uprights (housing): 63”
• Throat Depth: 10”
• Features
• ISO 9001 certified
• Meets OSHA and CE safety standard

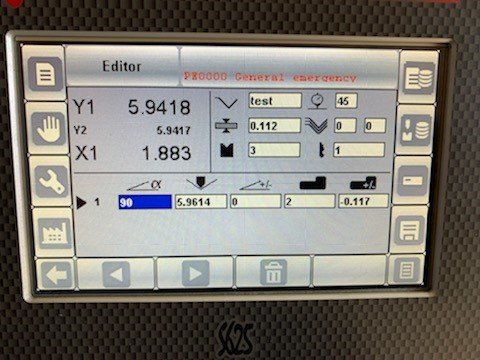

• ESA (Italy) Model 625, 2 Axis CNC Controller
• Die library, offline programming, stores thousands of programs
• Programmable Angle/ Angle Correct
• Germany Rexroth hydraulic system
• Yaskawa Servo motor and Drives
• Schneider electrical components
• Hydraulic crowning
• All steel construction for maximum rigidity
• Hydraulic logic system centrally located and quiet
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• Standard Equipment
• (2) 24” front support arms, Quick Release for easy positioning
• Quick release segmented (American Style Tooling) punch holder

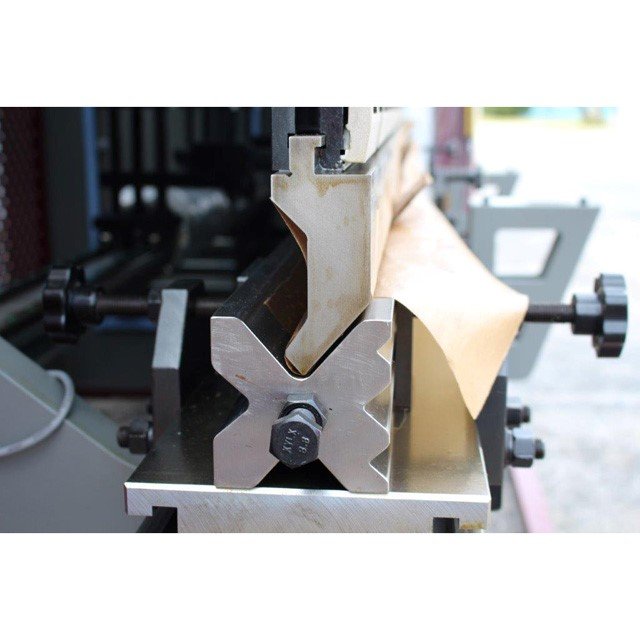

• Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts – Ask us for custom tooling quotes)
• Full Length Vee Die with 6 assorted sizes HRC 50
• Lntech Light Curtain System
• Side and Back Safety Fence
• Movable Foot Pedal with Estop meet OSHA safety standard
• Specifications
• Ram Stroke travel: 6”
• Cylinder travel adjustment, max: 3-1/8”
• Table width: 6”
• Distance between table and ram: 15-1/4”
• Back Gauge Distance: 24”
• Back Gauge Repeatability: .0039”
• Y Axis Repeatability: .0039”
• Approach speed, inch / second: 3.14”
• Working speed, inch / second: 0.35”
• Return speed, inch / second: 2.36”
• Main motor: 7-1/2 HP, 220V or 208V, 3phase
• Servo motor for back gauge: 1 HP, 220V or 208V, 3phase
• Servo motor for bending angle setting: 1/2HP, 220V or 208V, 3phase
• Hydraulic oil tank capacity: 52 Gal.
• Machine weight, LBS: 8650 LBS
• Machine size, L x W x H: 103 x 63 x 87”
• *This model does not work with a phase converter*

Specifications

• Manufacturer: GMC Machinery
• SKU: HPB-7006CNC (220V)
• Shipping Method: LTL Freight
• Weight: 8,800 lb
• Dimensions: 108 × 68 × 95 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
