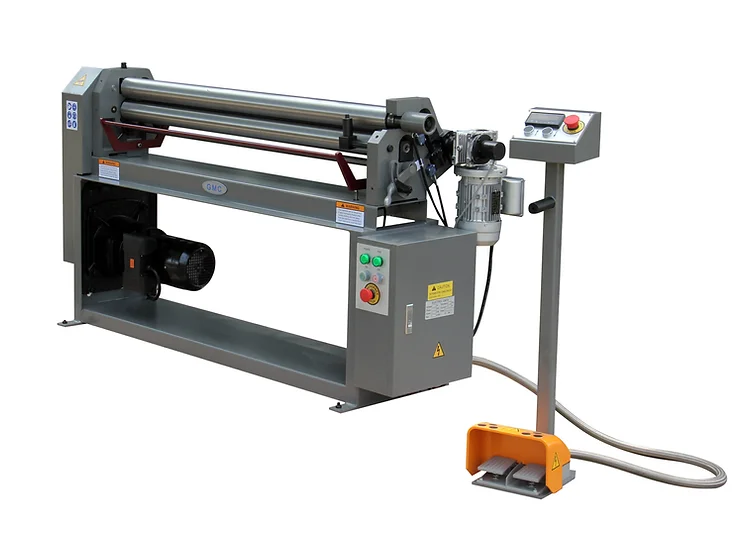

GMC Machinery 220V Single Phase 50” x 14Ga Power Slip Roll with Push Button Control PSR-5014E-1PH

GMC Machinery 220V Single Phase 50” x 14Ga Power Slip Roll with Push Button Control PSR-5014E-1PH is a GMC Machinery product in the Slip Rolls collection.

Product Details

• Rolls size (length x dia): 50” x 3”
• Min roll bending diameter: 3½”
• Rolls speed: 201”/min
• Rolls opening: ¼”
• Description
• Power Bending roll up/down with push button. This machine has a 2HP motor, rated at 220V Single Phase. Min roll bending diameter capacity 3.5”.
• Features
• ISO 9001 certified

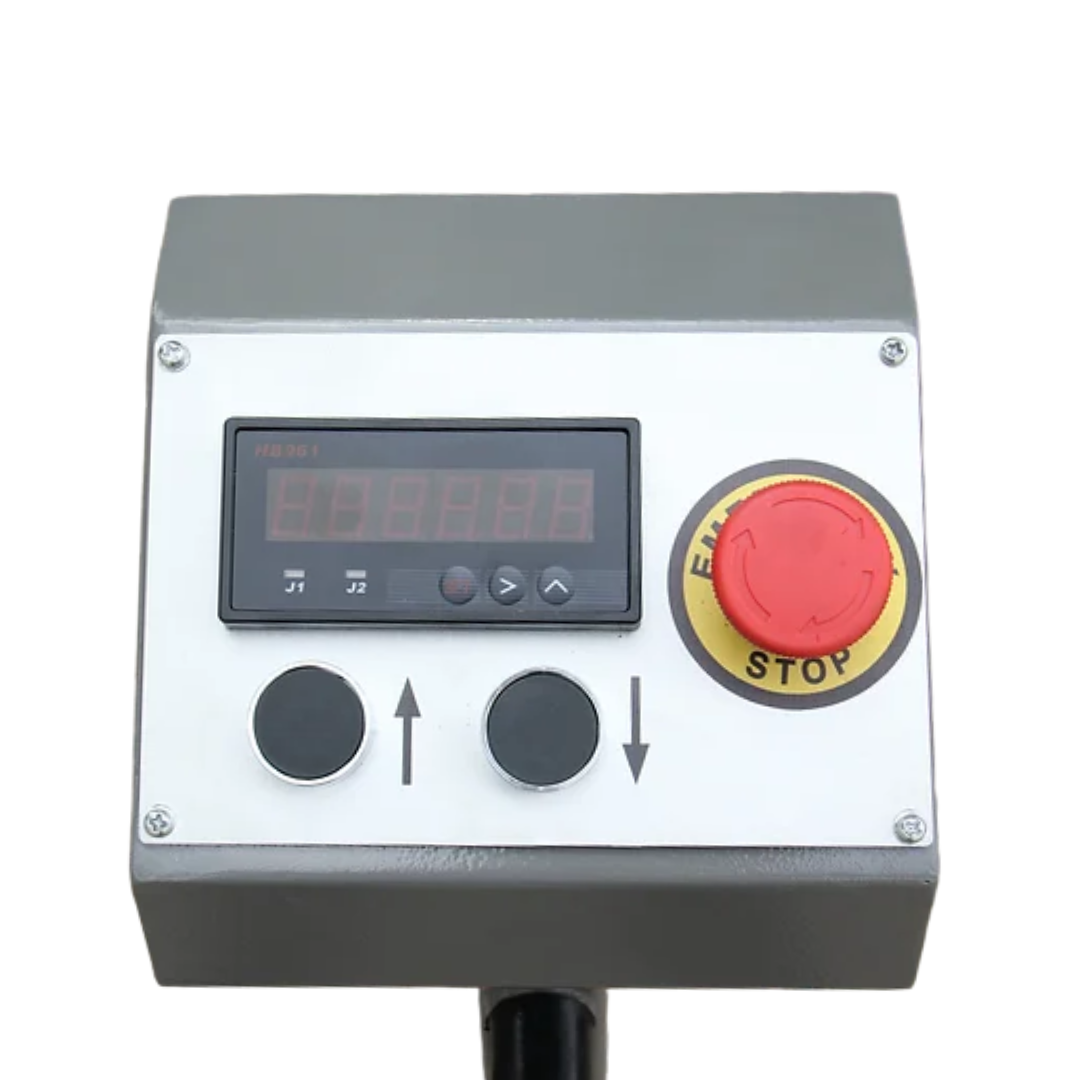

• Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts
• One handle to control pinch roll up/down, more convenient and efficiency
• Heavy welded all steel construction for maximum rigidity
• Silence electric motor
• Quick release top roller
• Two rolls are driven
• Precision ground rollers
• ¼” roll opening
• All three rolls are made of high grade alloy steel, hardened up to 50 HRC
• All rolls run forward and reverse
• Safety type removable foot pedal
• Overload protection and disconnect switch
• Standard Equipment
• Cone attachment
• Electrical cabinet
• Removable safety foot pedal
• Specifications
• Capacities Mild Steel: 50” x 14Ga Stainless Steel: 50” x 18Ga Soft Aluminum: 50” x 10Ga Min thickness: 50” x 26Ga
• Mild Steel: 50” x 14Ga
• Stainless Steel: 50” x 18Ga
• Soft Aluminum: 50” x 10Ga
• Min thickness: 50” x 26Ga
• (3) grooves sizes: 5/16”, 3/8”, ½”
• Main Motor: 220V Single Phase 2HP
• Machine dims: 68” x 32” x 49”
• Approx Weight: 985 lbs

Specifications

• Manufacturer: GMC Machinery
• SKU: PSR-5014E-1PH
• Shipping Method: LTL Freight
• Weight: 1,050 lb
• Dimensions: 70 × 35 × 52 in
