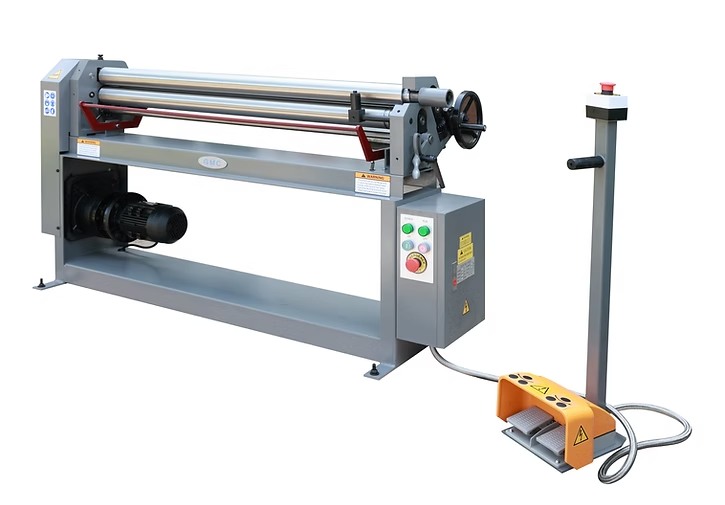

GMC Machinery 1.5HP 220V Single Phase 50″ x 14 Ga. Powered Slip Roll PSR-5014N-1PH

GMC Machinery 1.5HP 220V Single Phase 50″ x 14 Ga. Powered Slip Roll PSR-5014N-1PH is a GMC Machinery product in the Slip Rolls collection.

Product Details

• Rolls size, length x dia: 50” x 3”
• Min. roll bending dia. Capacity: 3-1/2"
• Rolls speed: 201” / min.
• Rolls opening: 1/4”
• Features
• ISO 9001 certified
• One handle for pinch roll clamping
• One handwheel for bending roll up/down
• Cone attachment to make various size cone parts
• Heavy welded all steel construction for maximum rigidity
• Silence electrical motor
• Quick release top roller
• Two rolls are driven
• Precision ground rollers
• 1” roll opening
• All three rolls are made of high grade alloy steel, hardened
• All rolls run forward and reverse
• Safety type removable foot pedal

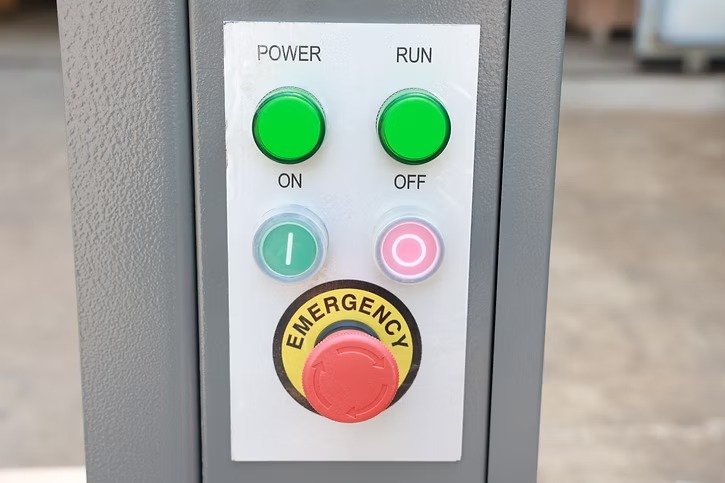

• Overload protection and disconnect switch
• Not intended for rolling rods in high production (see PRB-model)
• One year warranty for parts
• Standard Equipment
• Cone attachment
• Electrical cabinet
• Removable safety foot pedal
• Specifications
• Rolling capacity Mild steel: 50" x 14Ga. Stainless steel: 50" x 18Ga. Soft Aluminum: 50” x 10Ga Min. thickness capacity: 50" x 26Ga.
• Mild steel: 50" x 14Ga.
• Stainless steel: 50" x 18Ga.
• Soft Aluminum: 50” x 10Ga
• Min. thickness capacity: 50" x 26Ga.

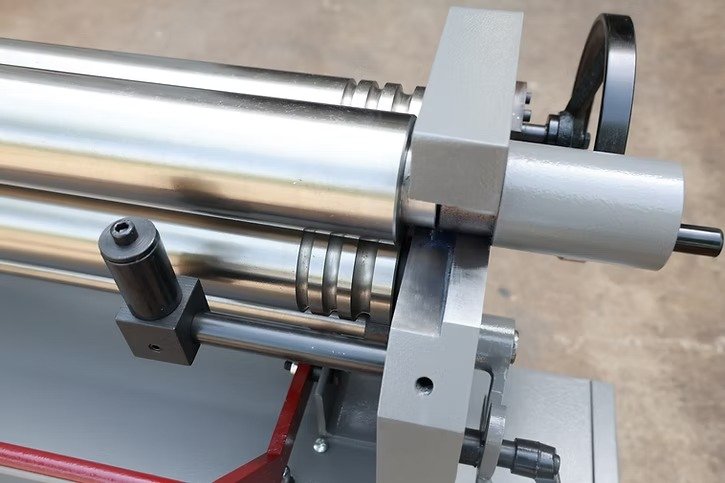

• (3) grooves sizes: 5/16”, 3/8”, 1/2”
• Main motor: 1.5 HP, 220V, 1ph
• Net weight: 837 LBS
• Machine dimensions (L x W x H): 68” x 28” x 47”

Specifications

• Manufacturer: GMC Machinery
• SKU: PSR-5014N-1PH
• Shipping Method: LTL Freight
• Weight: 837 lb
• Dimensions: 68 × 27 × 47 in
• Warranty: 1 Year (Parts)
