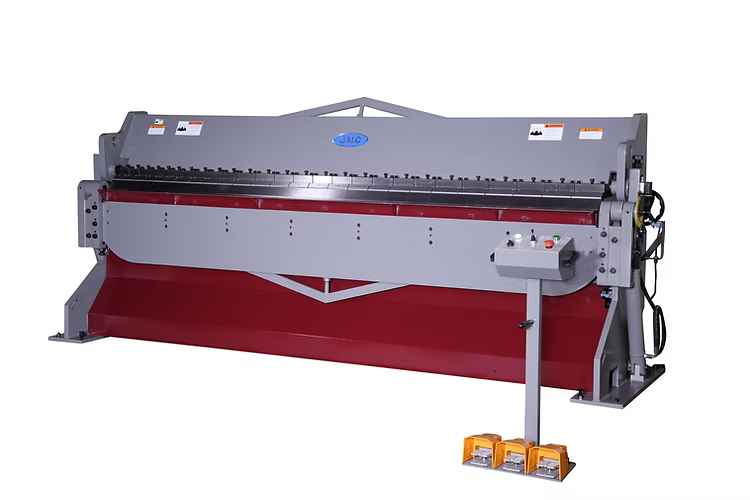

GMC Machinery 10’ x 14Ga 220V Three Phase Hydraulic Straight Apron Brake with 26” Manual Back Gauge HSB-1014

GMC Machinery 10’ x 14Ga 220V Three Phase Hydraulic Straight Apron Brake with 26” Manual Back Gauge HSB-1014 is a GMC Machinery product in the Sheet Metal Brakes collection.

Product Details

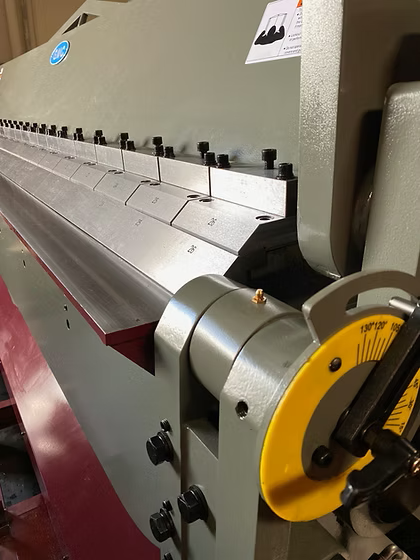

• Straight finger length: 10’1”
• Bend Degree: 135°
• Large beam opening: 3”
• Manual back gauge: 26”
• Description
• GMC’s industrial grade hydraulic straight apron brakes are constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. GMC’s straight apron brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake. Easily operate the brake in jog or auto mode to accomplish any bend between 0-135°. This body style is wide, stable, smooth, and can be bolted down in place for maximum accuracy.
• Features
• Taiwan Machine
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge handwheel
• 1” manual beam adjustment (front and back)
• Min reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth hydraulic logic system centrally located and quiet
• A wide guide body ensures strong, stable, smooth, and accurate movement
• Comes with one 10’ straight finger
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One set of assorted fingers 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs (boxed)
• Standard Equipment
• 26” manual back gauge with one side handwheel

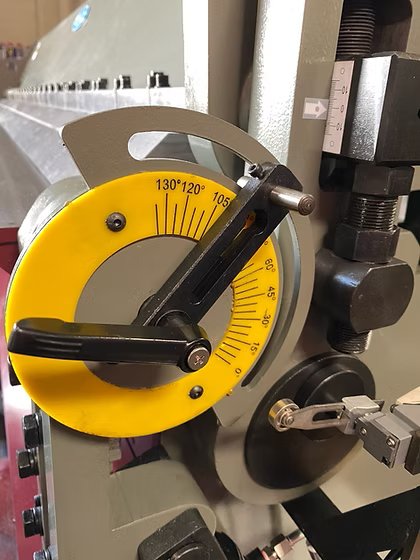

• Angle set up dial
• Hydraulic clamping system
• Foot pedal control for hydraulic clamping & auto mode
• Specifications
• Max bending length: 10’
• Bending capacities Mild steel (hot roll), 60K psi: 10’ x 14Ga Stainless steel, 85K psi: 10’ x 16Ga Soft aluminum, 28K psi: 10’ x 10Ga Hemming max thickness: 28Ga
• Mild steel (hot roll), 60K psi: 10’ x 14Ga
• Stainless steel, 85K psi: 10’ x 16Ga
• Soft aluminum, 28K psi: 10’ x 10Ga
• Hemming max thickness: 28Ga
• Max box & pan depth: 4” (requires optional finger accessories)
• Oil tank capacity: 17 gal
• Hydraulic oil: Shell #68 or equivalent
• Main motor: 220V Three Phase 5HP 20Amp
• Machine Dims: 142” x 46” x 66”
• Approx Weight: 6,850 lbs
• Optional Add-Ons
• 440V Three Phase 10Amp unit available (please contact sales rep for more info)
• Safety fence for enclosure of the front side of the machine
• Safety light curtain
• 3” replacement finger
• 4” replacement finger
• 5” or 6” replacement finger

Specifications

• Manufacturer: GMC Machinery
• SKU: HSB-1014
• Shipping Method: Flatbed
• Weight: 6,950 lb
• Dimensions: 153 × 41 × 67 in
• Country of Origin: Taiwan
