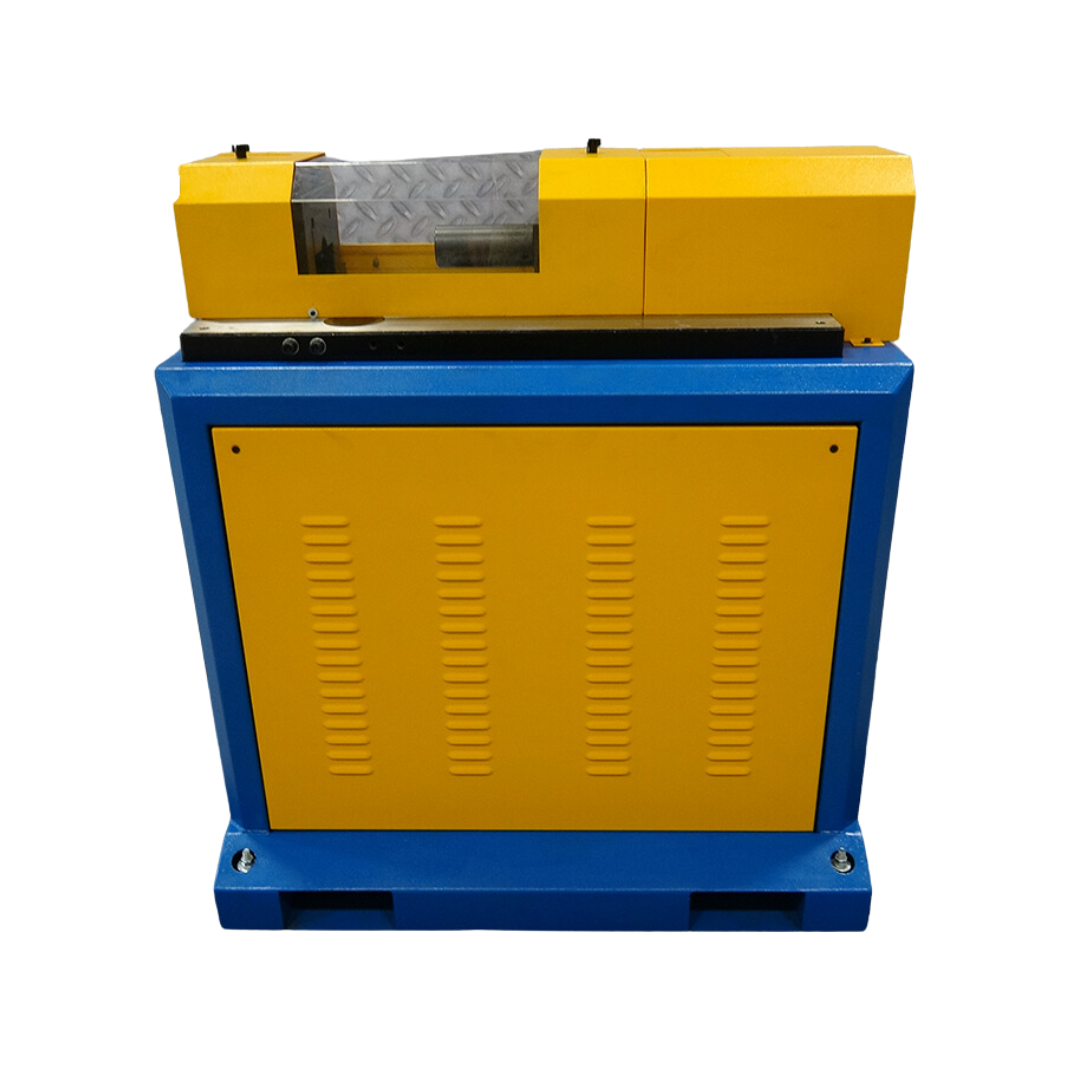

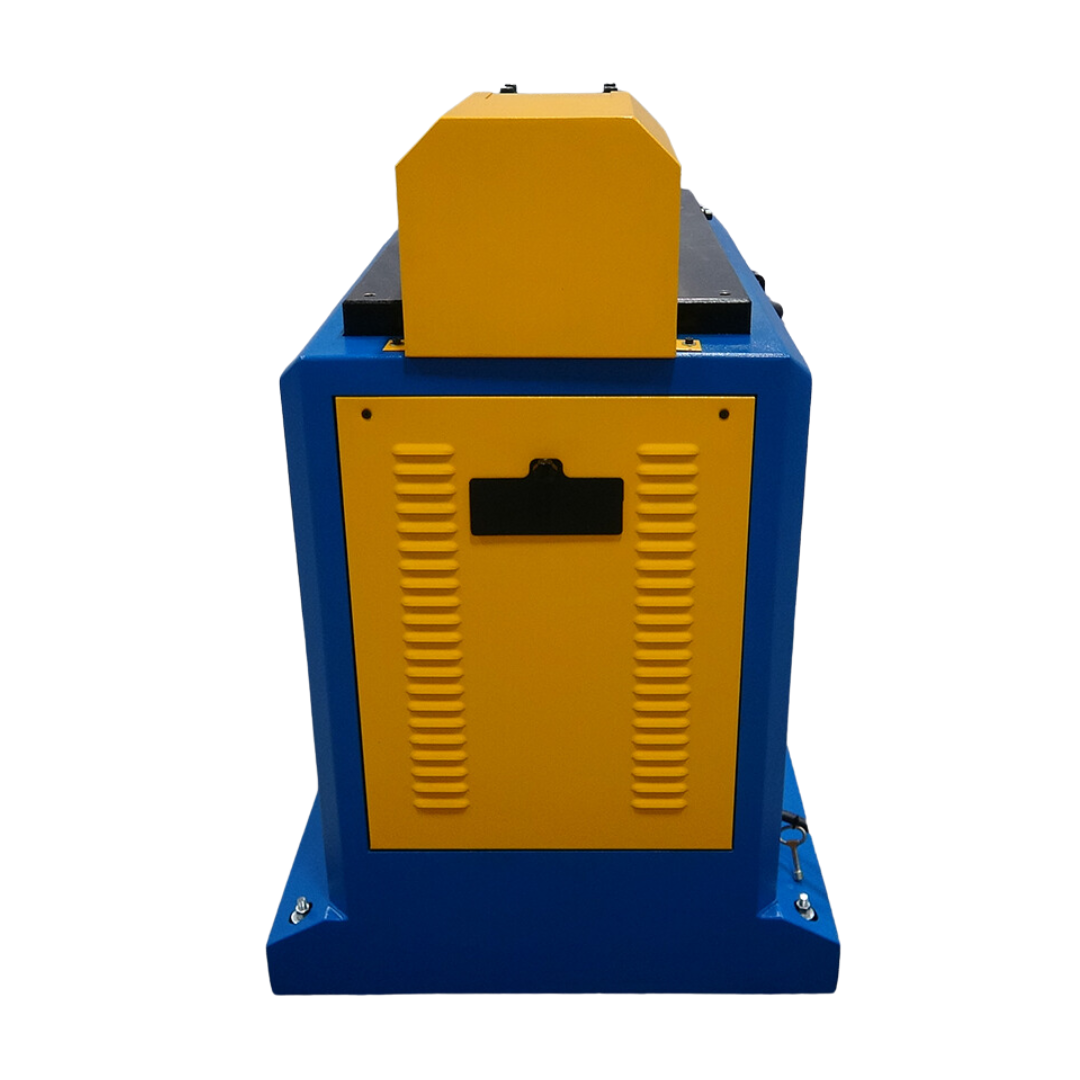

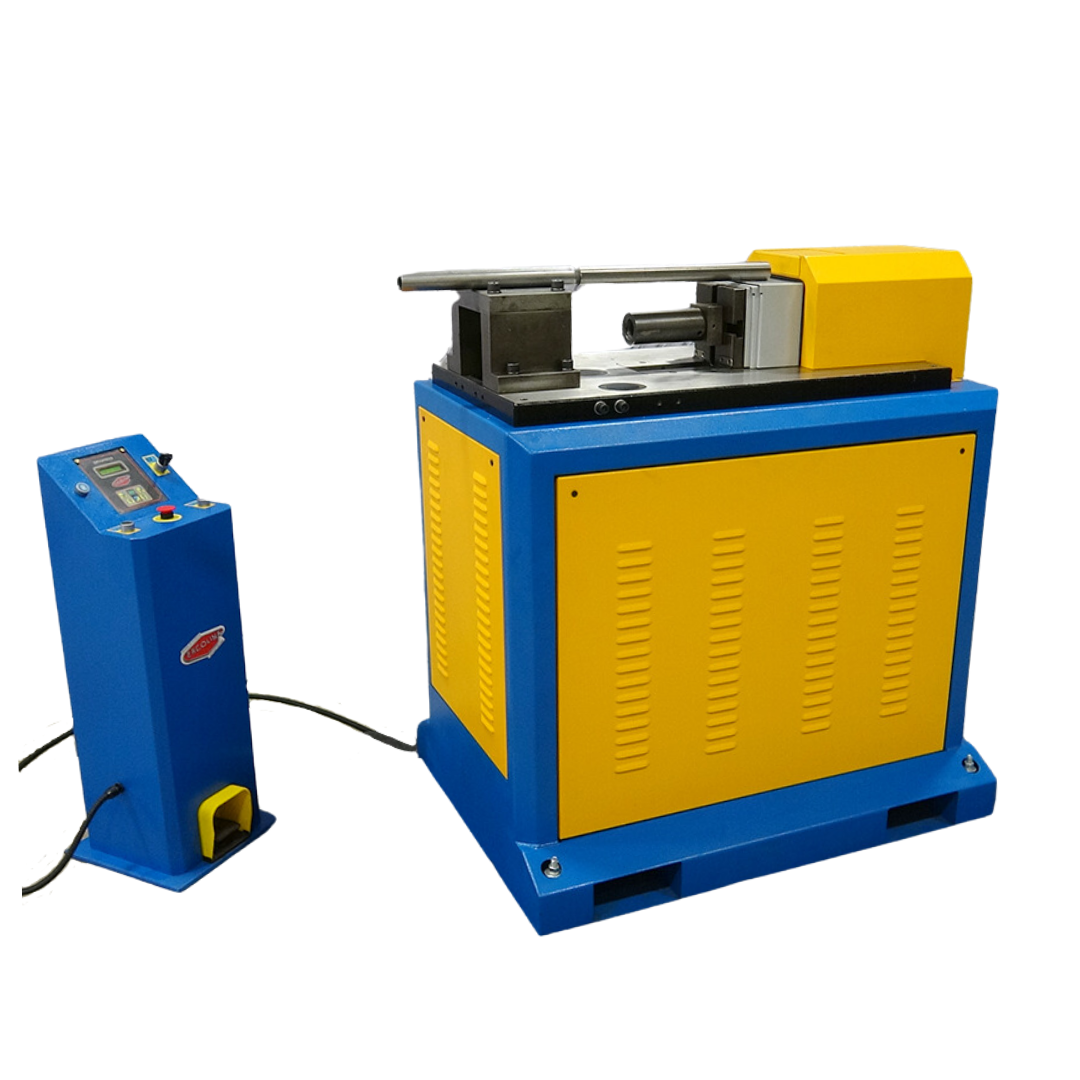

Ercolina 3.5HP 220V Three Phase 25 Ton Era Horizontal Hydraulic Press EP25H2-V2

Ercolina 3.5HP 220V Three Phase 25 Ton Era Horizontal Hydraulic Press EP25H2-V2 is a Ercolina product in the Press Brakes collection.

Product Details

• Hydraulic Force: 25 tons
• Tube Diameter Max. Expansion / Reduction: 3-1/2” x 0.120 (Tooling Dependent)
• Folding Capacity – Steel Flat Bar: 5” x 1/2”
• Working Speed: 1/2” – 1” sec.
• Description
• Ercolina’s EP25H2-V2 (25 ton hydraulic force) metalworking machine is a programmable tube and pipe swaging machine and metalworking press.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
• Features
• Expands and reduces tube and pipe ends
• Performs metalworking press operations
• Tooling available for tube flaring & flanging
• Square and rectangular tooling available
• Programmable touchpad control with backlit LCD display
• Heavy duty structure and rigid components
• Adjustable working speed and hydraulic force
• Quick change modular tooling
• Remote pendent with low voltage controls
• Programmable cylinder positioning
• Hydraulic material clamping system
• Standard Equipment
• Expansion/Reduction Holder
• Tube Expansion Tie Bar
• Prism Holder
• Straightening Supports
• Adjustable Stop
• Specifications
• Programming: Touchpad
• Horizontal Press: Yes
• Maximum Stroke of Cylinder: 6-5/8”
• Maximum Swage Depth*: 6”
• Voltage Requirement: 220V 3ph
• Motor: 3.5 HP 50-60Hz
• Motor Speed: 3650 RPM
• Dimensions (L x W x H): 41” x 29.5” x 48”
• Shipping Weight: 1,675 lbs.
• * Swage depth greater than 4½″ requires special tooling – must be specified at time of order.

Specifications

• Manufacturer: Ercolina
• SKU: EP25H2-V2 (220V)
• Shipping Method: LTL Freight
• Weight: 1,775 lb
• Dimensions: 46 × 35 × 53 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
