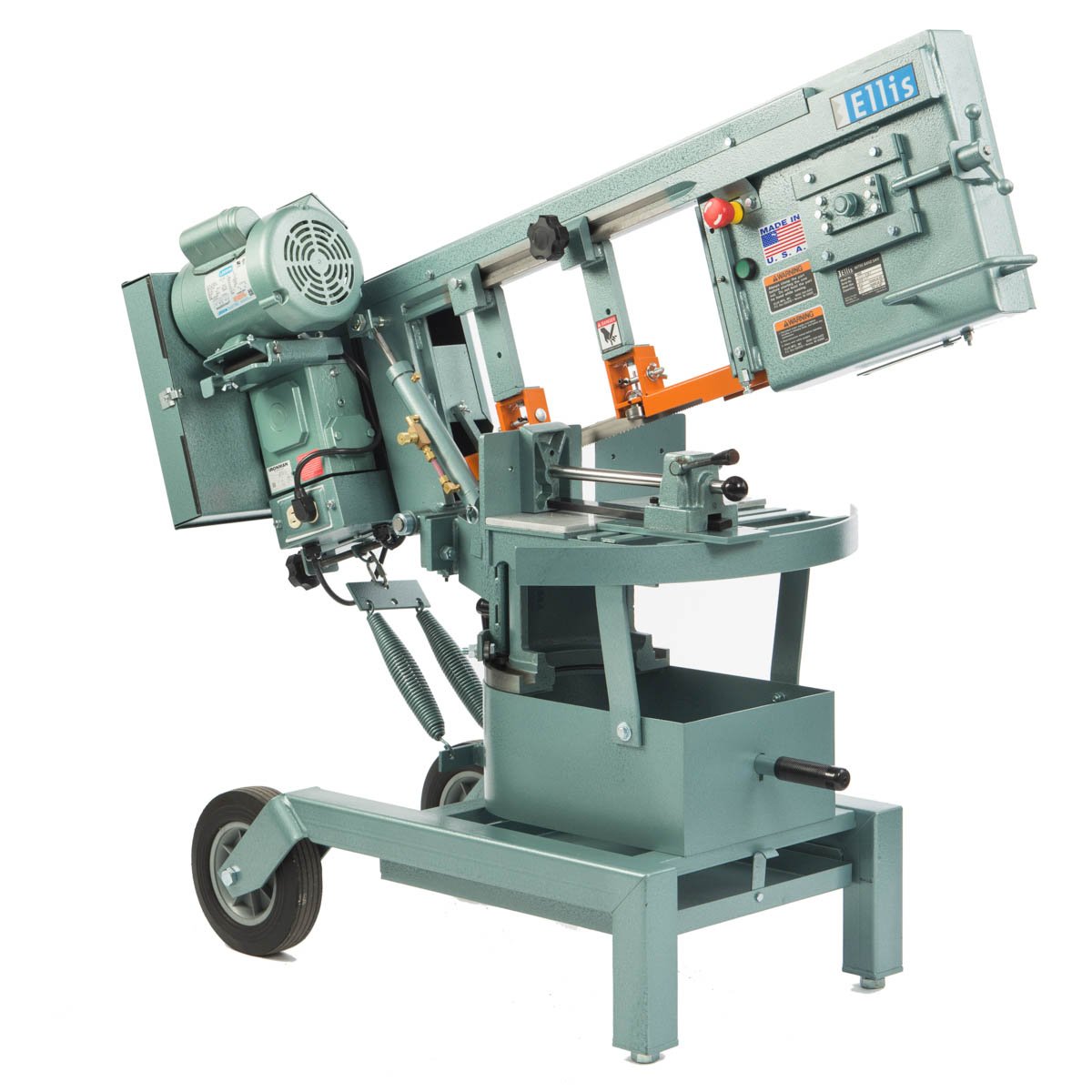

Ellis Manufacturing 220V Single Phase Dual Mitre Band Saw 1600

Ellis Manufacturing 220V Single Phase Dual Mitre Band Saw 1600 is a Ellis Manufacturing product in the Band Saws collection.

Product Details

• Round Cutting Capacity: 10” at 90°
• Flat Cutting Capacity: 11” at 90°
• Motor: 1 HP 220V Single Phase
• Vise: Quick Adjusting Camlock
• Features
• Head of band saw moves left or right for angle cutting
• Built-in protractor for fast and accurate selection of angles
• One-step conversion from horizontal to vertical band saw
• Stock remains in one position for all cuts
• Portable-this band saw moves easily to the job site
• Specifications
• Capacity (90° & 45°): 10” Round at 90° 8” Pipe at 90° 11” Flat at 90° 6-7/8” Round at 45° 6” Pipe at 45° 7-1/4” Flat at 45° 10” H x 8” W at 90° 8” H x 6” W at 45°
• 10” Round at 90°
• 8” Pipe at 90°
• 11” Flat at 90°
• 6-7/8” Round at 45°
• 6” Pipe at 45°
• 7-1/4” Flat at 45°
• 10” H x 8” W at 90°
• 8” H x 6” W at 45°
• Blade Speeds (3): 55-115-230 FPM
• Blade Size: 10’0” x 1”
• Feed Control: Hydraulic Adjusting
• Shut Off: Automatic
• Standard Motor: 1 H.P. 220 Volt Single Phase
• Optional: 3 PH 220-440-460-480-575
• Portable: 10” Wheels-Standard
• Shipping Weight: 525 lbs.
• Machine Size: Table Height 27” Length 59” Width 24-3/4” Height 47”
• Table Height 27”
• Length 59”
• Width 24-3/4”
• Height 47”
• Sealed Oil Bath Worm Gear: Standard
• Removable Chip Tray: Standard
• Construction: Heavy Steel; Welded & Machined for Accuracy & Durability
• Available Accessories
• Air System
• 2 Roller Support Stand with Stock Gauge and Micro-Adjuster
• Single Stock Stand – 1 Roller
• Stock Stand – 5’ Long (12″W) 4-Rollers”
• Pipe Clamp Attachment for Camlock Vise
• Screw Type Vise
• Pipe Clamp Attachment for Screw Vise
• Vertical Table (10” x 16”) with Blade Guard

Specifications

• Manufacturer: Ellis Manufacturing
• SKU: Ellis1600 (220V)
• Shipping Method: LTL Freight
• Weight: 575 lb
• Dimensions: 61 × 26 × 53 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
