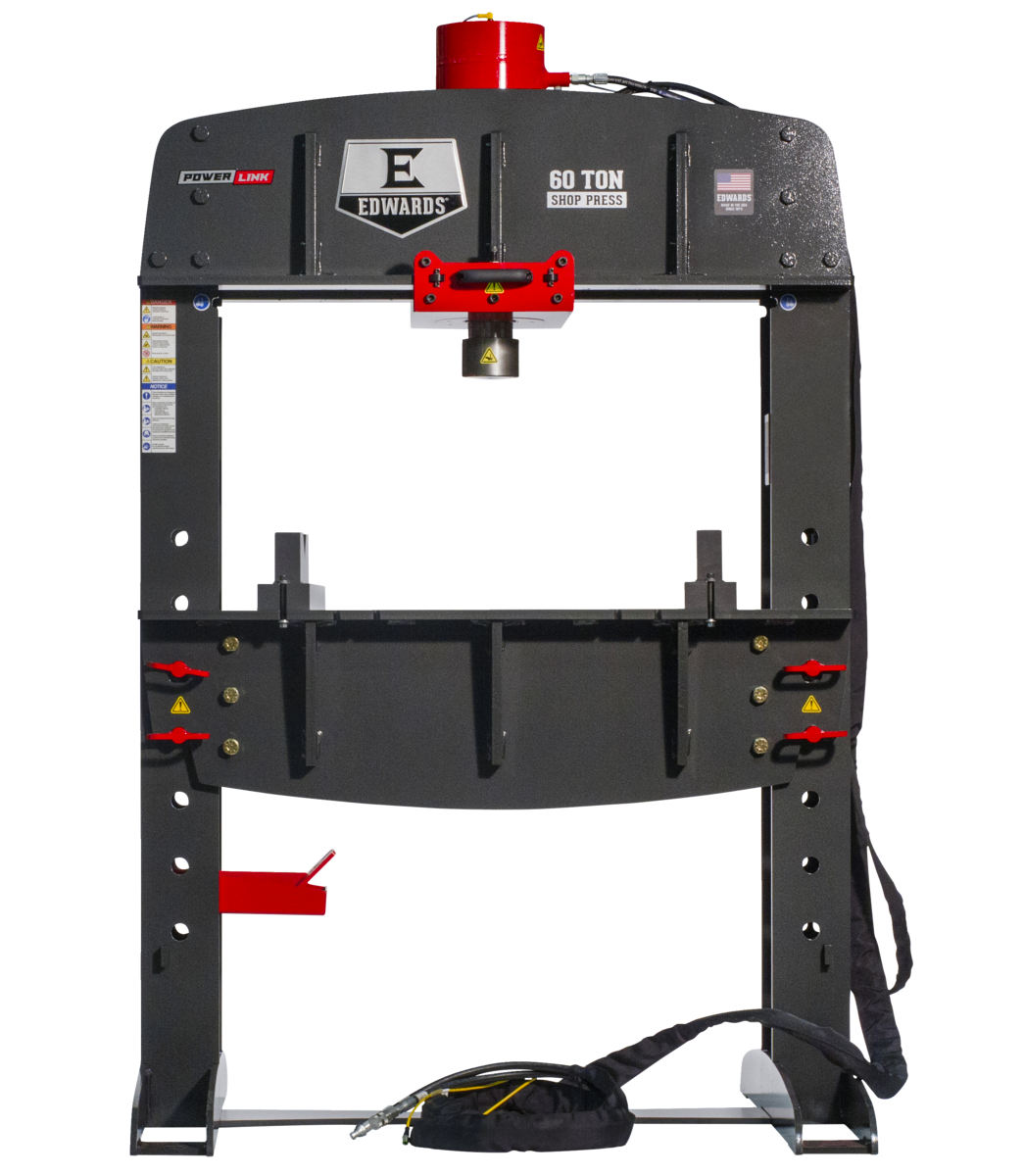

Edwards 60 Ton Shop Press and Portable Power Unit 460V, 3Ph HAT8030

Edwards 60 Ton Shop Press and Portable Power Unit 460V, 3Ph HAT8030 is a Edwards Manufacturing product in the Hydraulic Presses collection.

Product Details

• 20' quick-connect hoses for simple "plug & play" operation
• Accepts a variety of standard and custom tooling
• Electric foot pedal with integrated jog control
• Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
• Open-sided design allows longer material to pass through the frame
• Powerful and flexible, the 60 Ton Shop Press can easily improve your productivity. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).
• Pressure gauge provides accurate measurements allowing for easy repeatable parts production
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
• Rolling cylinder provides maximum adaptability
• Specification: Value
• Minimum Ram Speed (In./Sec): 0.33
• Minimum Return Speed (In./Sec): 0.456
• Stroke (In.): 12-1/4
• Work Table (In.): 39-1/4 x 42
• Weight (Lbs.): 2300
• Rating (Tons): 60
• Product Dimensions (In.): 48 x 54 x 86
• Net Weight (Lbs.): 2300
• Gross Weight (Lbs): 2300
• Height: 122.0000
• Length: 72.0000
• Weight: 1900.0000
• Width: 102.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-HAT8030
• UPC: 731325714234
• Shipping Method: LTL Freight
• Weight: 2,300 lb
• Dimensions: 72 × 102 × 122 in
• Country of Origin: United States of America
