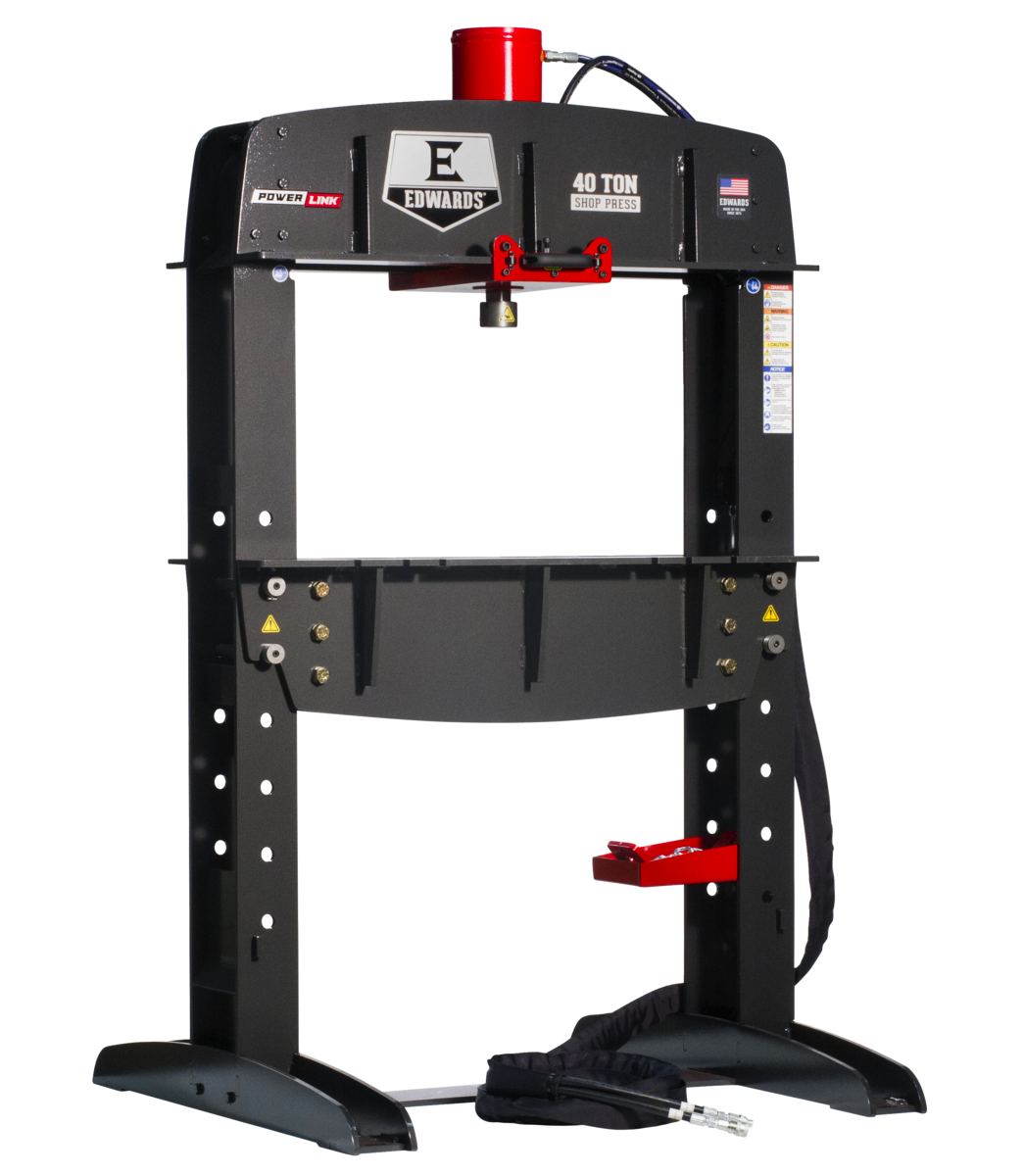

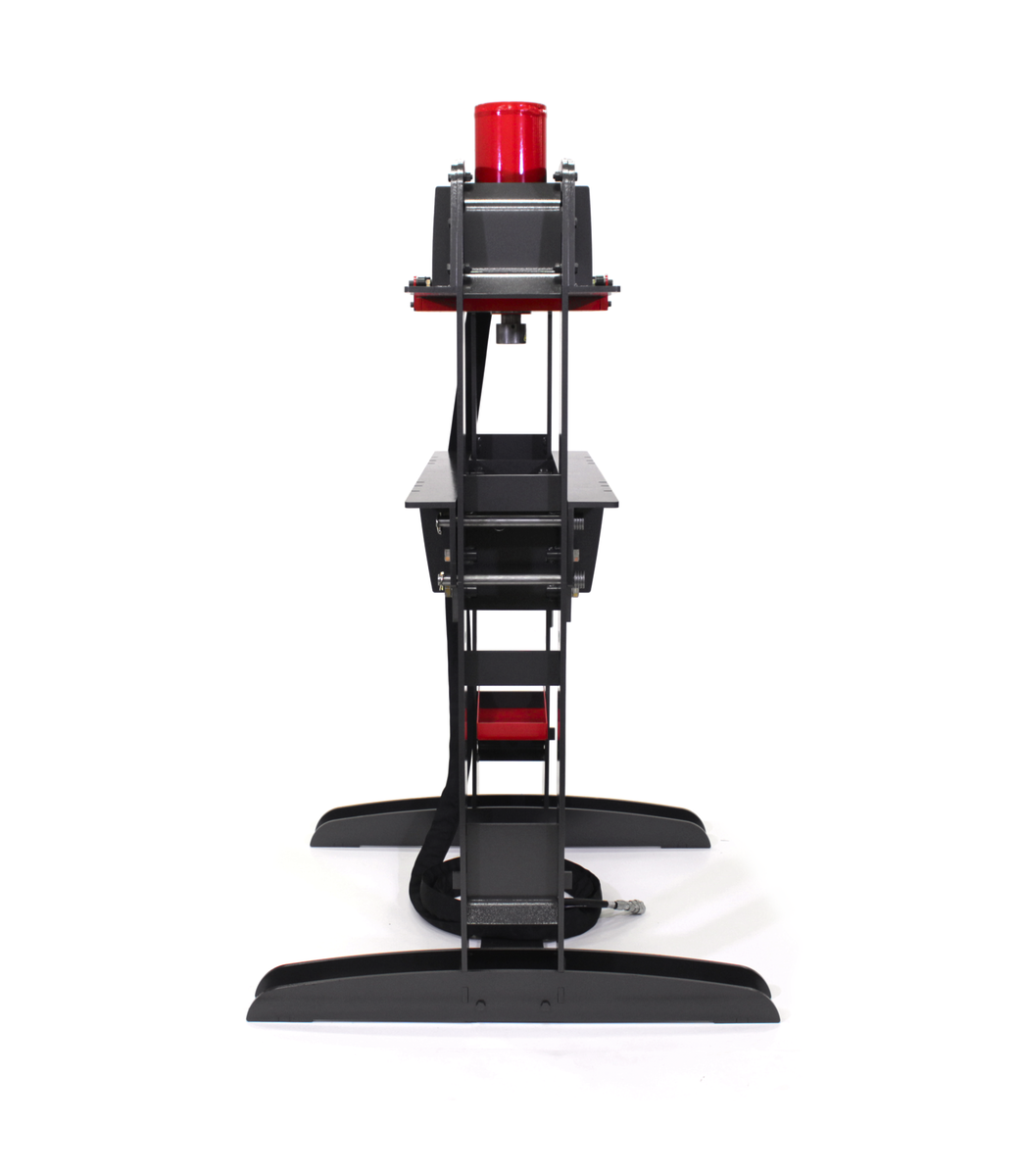

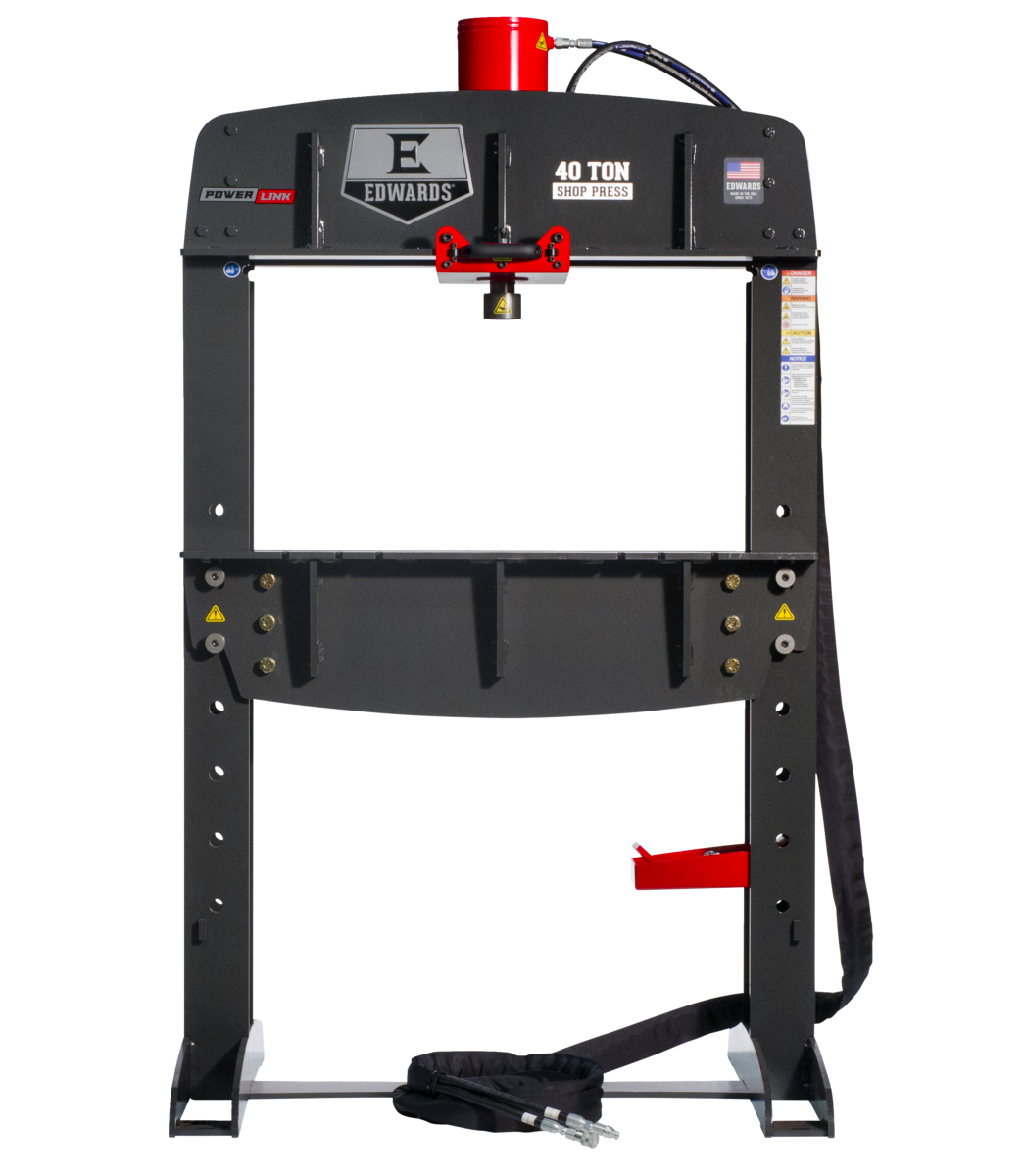

Edwards 40 Ton Shop Press and Portable Power Unit 460V, 3Ph HAT4030

Edwards 40 Ton Shop Press and Portable Power Unit 460V, 3Ph HAT4030 is a Edwards Manufacturing product in the Hydraulic Presses collection.

Product Details

• 20' quick-connect hoses for simple "plug & play" operation
• Accepts a variety of standard and custom tooling
• Easy-to-use hand/jog controls with integrated E-Stop
• Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
• Open-sided design allows longer material to pass through the frame
• The 40 Ton Shop Press is rugged and economical. With a rolling cylinder, pressure gauge, open-sided design, and hand/jog controls, it is an easy to use, powerful machine. Able to accept standard & custom tooling the smooth and precise pressure is perfect for any shop. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
• Pressure gauge provides accurate measurements allowing for easy repeatable parts production
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
• Rolling cylinder provides maximum adaptability
• Specification: Value
• Minimum Ram Speed (In./Sec): 0.517
• Stroke (In.): 12-1/4
• Steel Frame Thickness (In.): 1/2
• Work Table (In.): 38 x 40-1/2
• Weight (Lbs.): 1800
• Rating (Tons): 40
• Product Dimensions (In.): 48 x 48 x 79
• Net Weight (Lbs.): 1793
• Gross Weight (Lbs): 1830
• Height: 126.0000
• Length: 78.0000
• Weight: 1830.0000
• Width: 102.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-HAT4030
• UPC: 731325581287
• Shipping Method: LTL Freight
• Weight: 1,830 lb
• Dimensions: 78 × 102 × 126 in
• Country of Origin: United States of America
