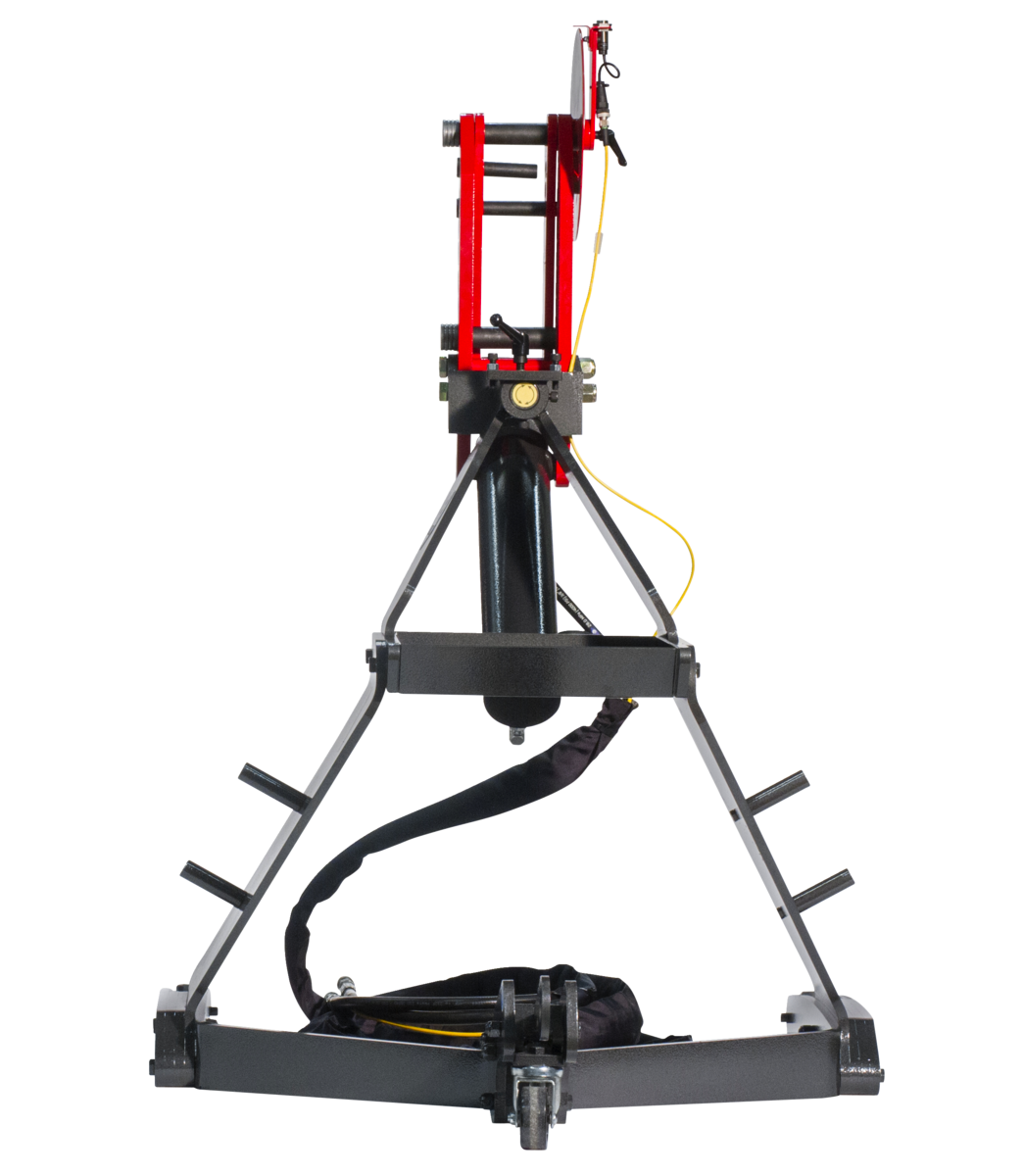

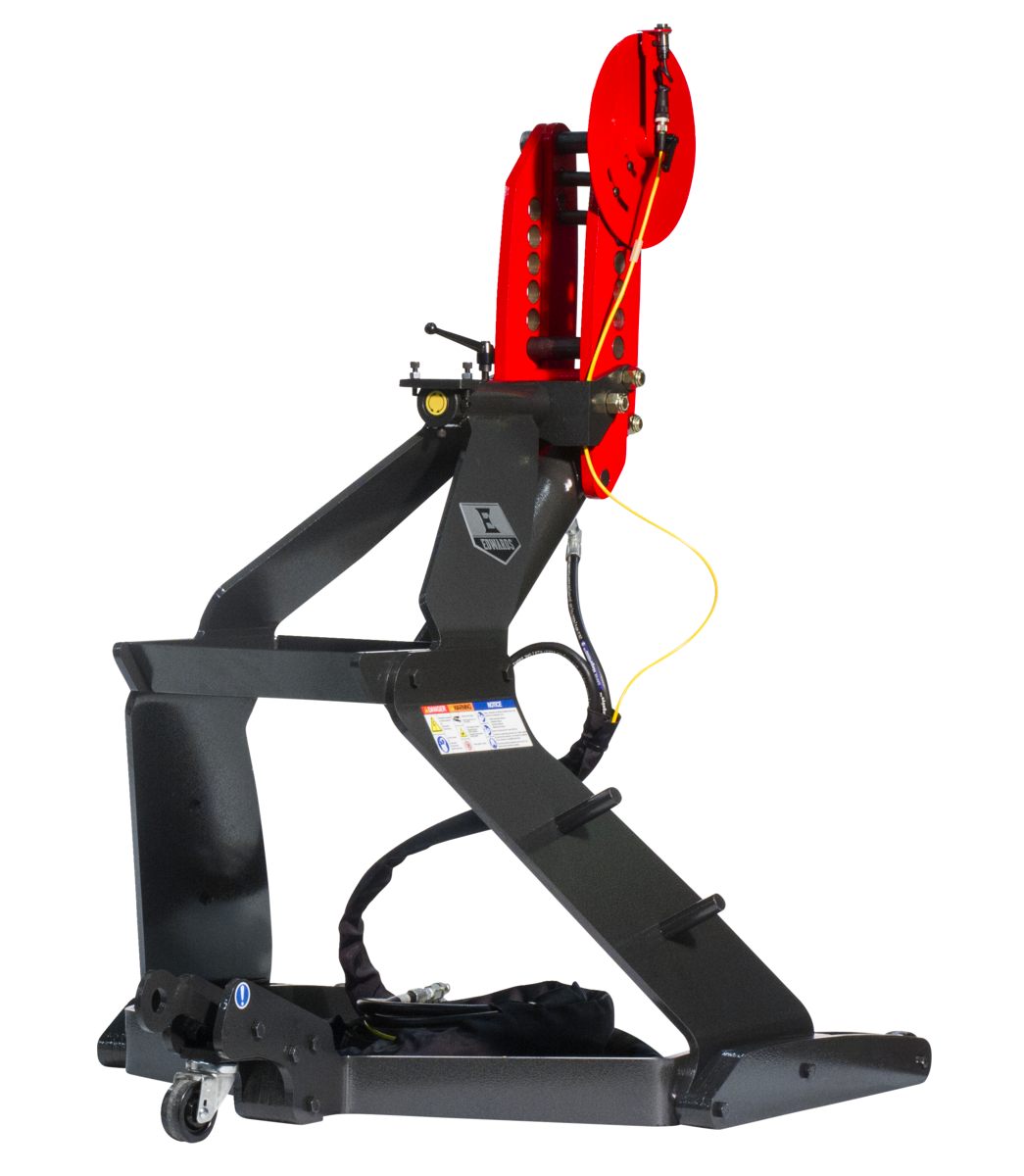

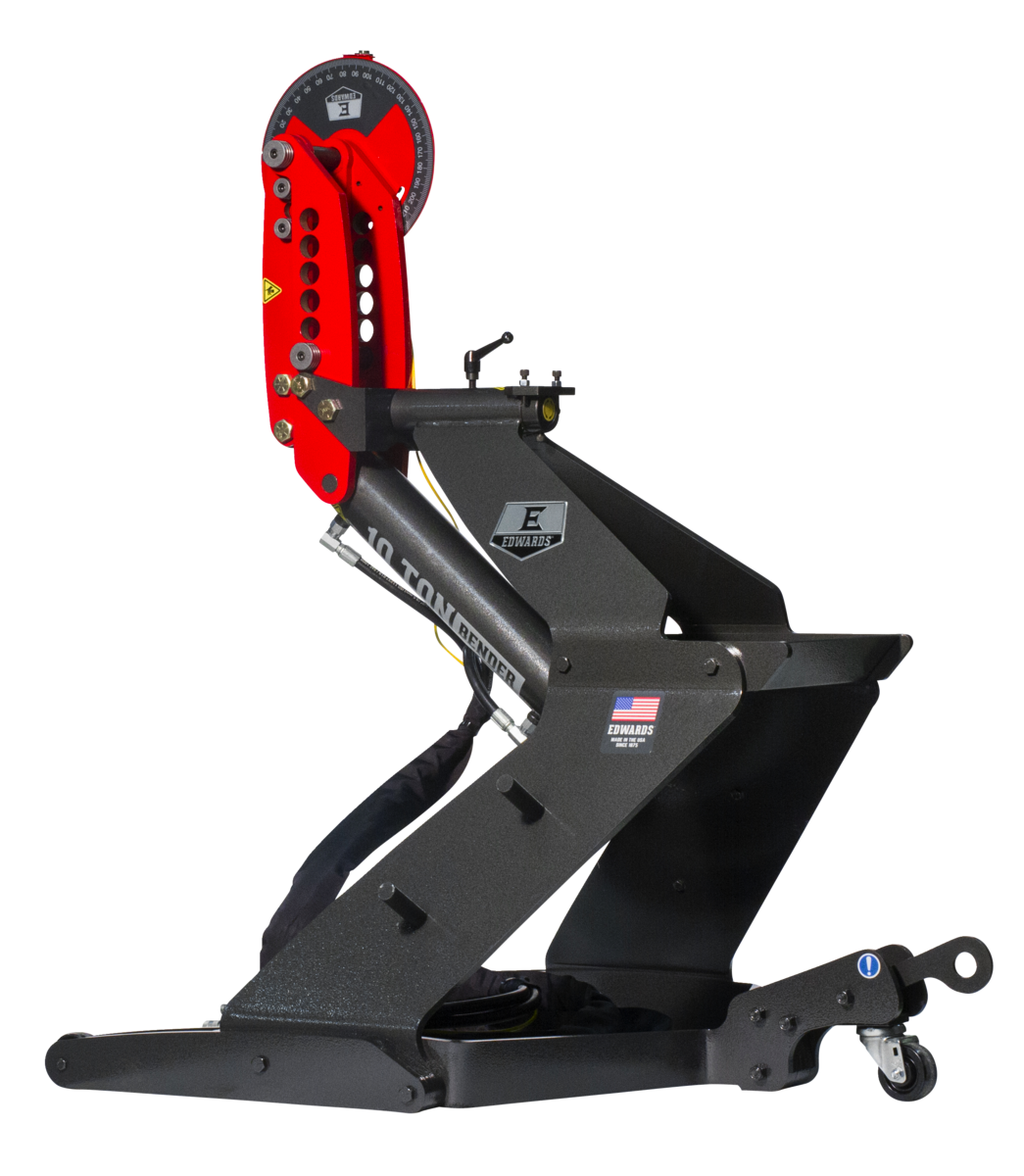

Edwards 10 Ton Bender and Porta Power 230V, 1Ph HAT1010

Edwards 10 Ton Bender and Porta Power 230V, 1Ph HAT1010 is a Edwards Manufacturing product in the Ironworkers collection.

Product Details

• 20' quick-connect hoses for simple "plug & play" operation
• Bend a wide variety of round or square tube and pipe up to 180°s
• Built-in storage on the frame keeps your Bender Dies conveniently close
• Easy-to-use hand/jog controls with integrated E-Stop
• Heavy-duty rolling stand allows you to move the Radius Roller around as needed
• The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. This Bender package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
• Horizontal or Vertical operation provides the user flexibility
• Integrated proximity sensor and degree wheel ensure you make the right bend every time
• Over 300 standard dies available to handle your bending needs
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
• Specification: Value
• Tube Capacity (In.): 2-1/2 (OD) .095
• Bend Capacity: 180
• Pipe Capacity (In.): 2 (ID) Sch 40
• Stroke (In.): 14
• Round Pipe Sch. 40 Capacity (In.): 2
• Cylinder (In): 1-3/4" Ram
• Round Tube Capacity (In.): 2-1/2
• Square Tube Capacity (In.): 2 (OD) .25
• Weight (Lbs.): 1000
• Rating (Tons): 10
• Hydraulics (GPM): 3-1/2
• Valve Pressure (PSI): 2750
• Product Dimensions (In.): 40-1/2 x 36-1/2 x 42
• Max. Bend (Deg.): 180
• Overall Dimensions (L x W x H) (In.): 66 x 93 x 100
• Net Weight (Lbs.): 1000
• Gross Weight (Lbs): 1000
• Height: 100.0000
• Length: 66.0000
• Weight: 1000.0000
• Width: 93.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-HAT1010
• UPC: 731325581201
• Shipping Method: LTL Freight
• Weight: 1,000 lb
• Dimensions: 66 × 93 × 100 in
• Country of Origin: United States of America
