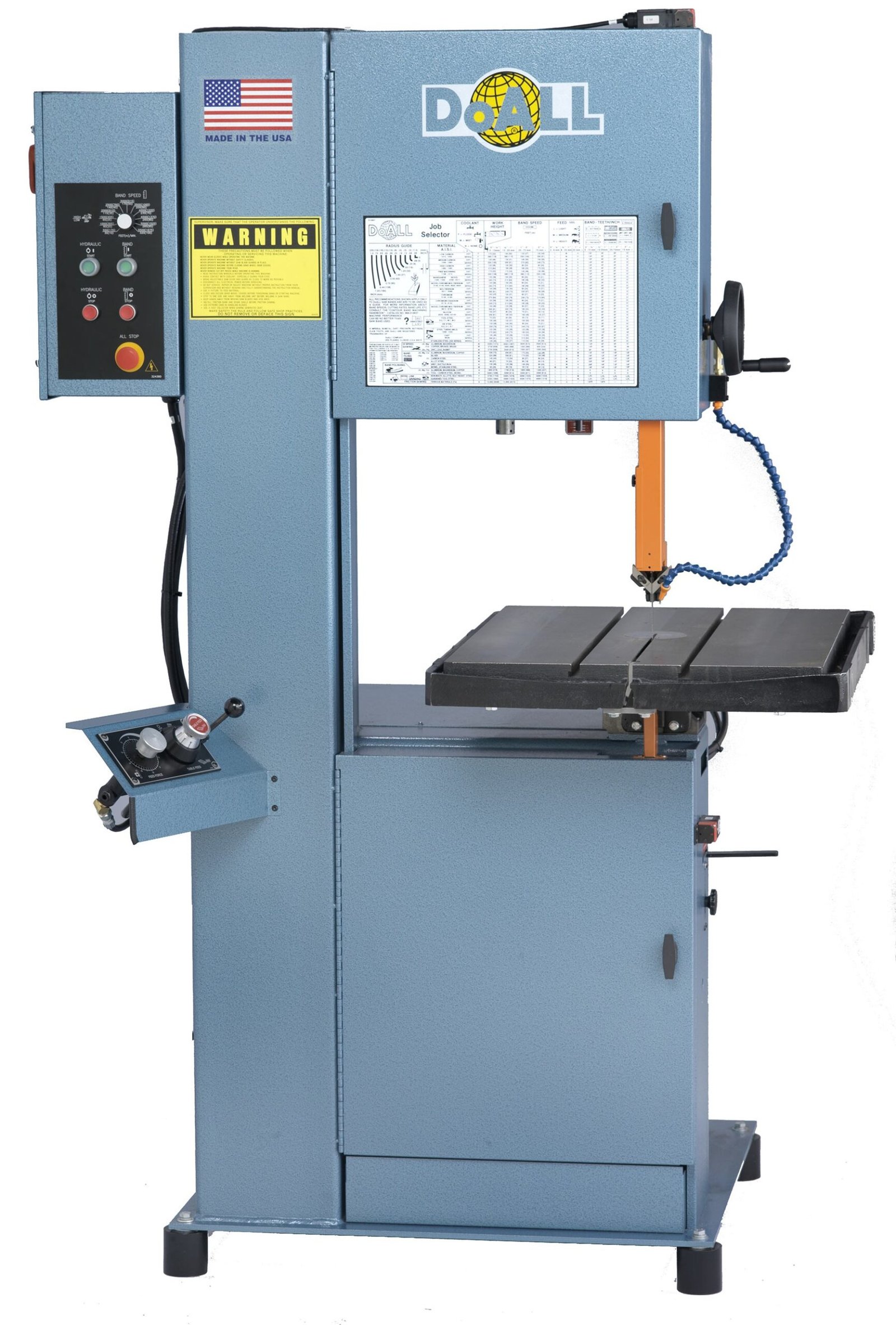

DoALL Vertical Contour Band Saw 2012-VH

DoALL Vertical Contour Band Saw 2012-VH is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 20" x 12"
• Production Level: Medium
• Throat, Band to Column: 20"
• Table Capacity: 500 lbs
• Description
• The DoALL 2012-VH vertical contour band saw features a hydraulically powered work table with 12" table stroke. These upright, variable hydraulic controlled, metal cutting band saws are among the most versatile sawing machines on the market today. The 2012-VH is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.
• Standard Equipment

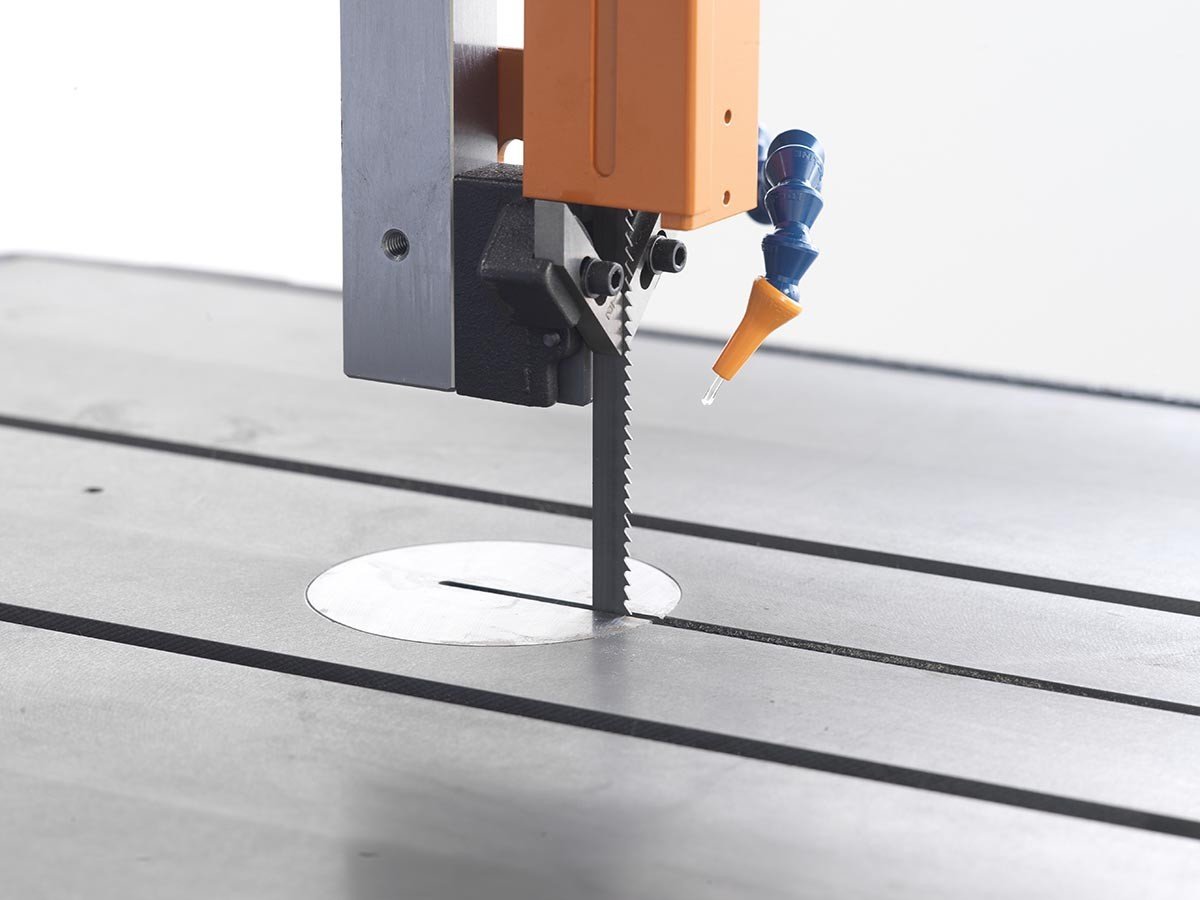

• One set of saw guide blocks w/carbide backup for bands 1/8" to 1" (3 to 25mm )
• One set of 3/4" (19mm) and 1" (25mm) carbide-faced inserts
• One set of metal saw guide inserts for bands 1/4" (6mm), 3/8" (10mm) and 1/2" (13mm)
• Mist coolant—plant air
• Variable frequency AC drive
• Chip pan
• Job selector
• Band speed indicator (ft./min.-m./min.)
• Wheel brush assembly
• Band tension indicator
• Post elevating hand wheel
• Dual-range transmission
• Table trunnion wrench
• One bi-metal saw band
• Complimentary coolant package
• Instruction and parts manual
• Hydraulic reservoir, 4 1/2 gal. (15.6 liter)
• Wrench for saw guides
• Transmission oil
• Specifications
• Band Speed: 30-5,500 fpm
• AC Motor Drive: 3 HP
• Machine Weight (net): 1,1650 lbs
• Maximum Work Height: 12"
• Band Width Capacity: 1/8" – 1"
• Band Length: 154"
• Table: 26-1/2" x 33-1/2" ; Tilts 45R, 10L
• Table to Floor Height: 40"
• Table Stroke: 12"
• Table Feed: 0-6 fpm
• Table Feed Force: 0-175 lbs
• Upper Wheel Adjustment: 3"

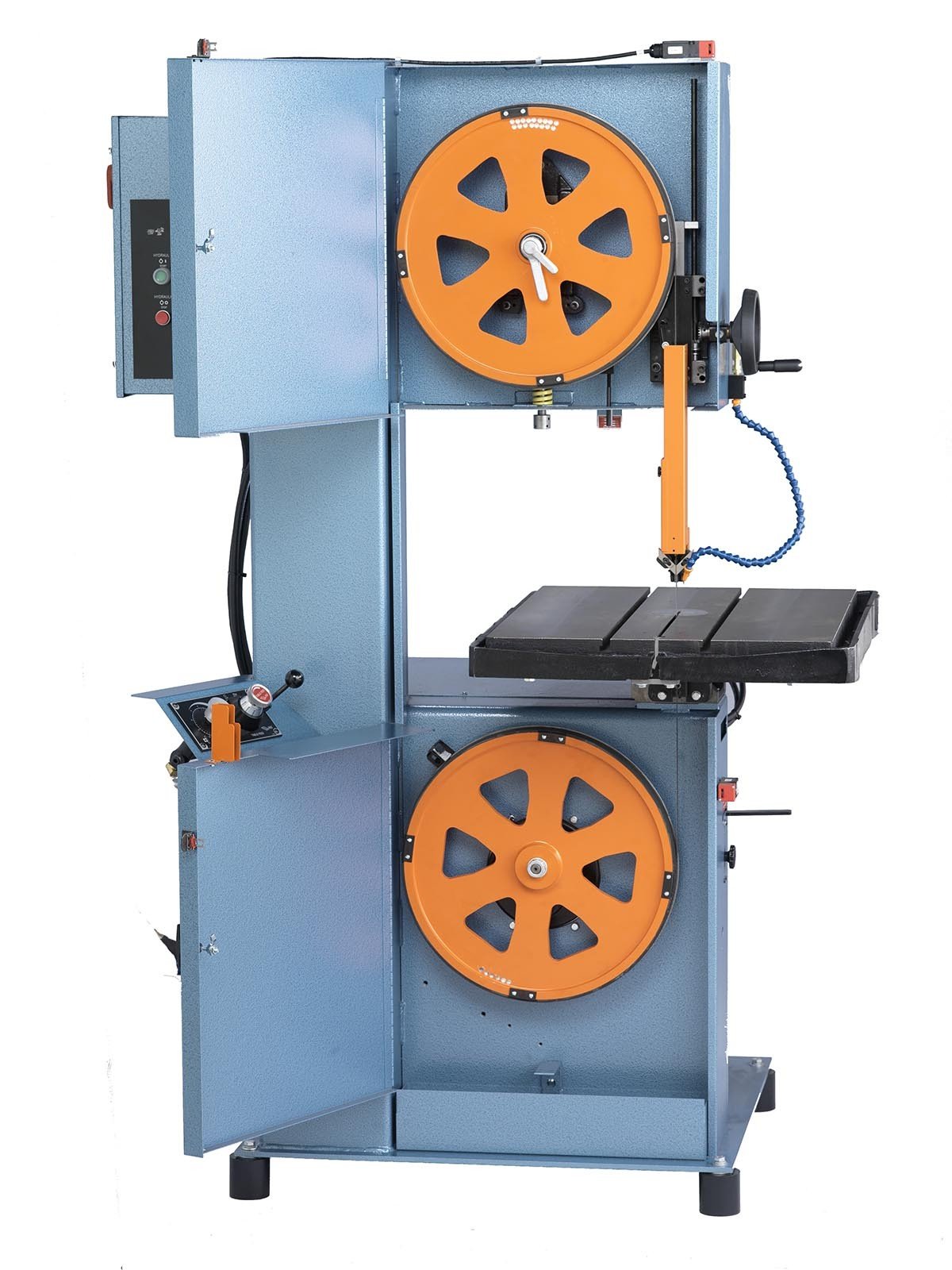

• Wheels: Flanged with steel backed rubber tires
• Height, Max: 81"
• Floor Area Req.: 54-1/4" x 58"

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: 2012-VH
• Shipping Method: Flatbed
• Weight: 1,850 lb
• Dimensions: 64 × 53 × 86 in
• Country of Origin: United States of America
