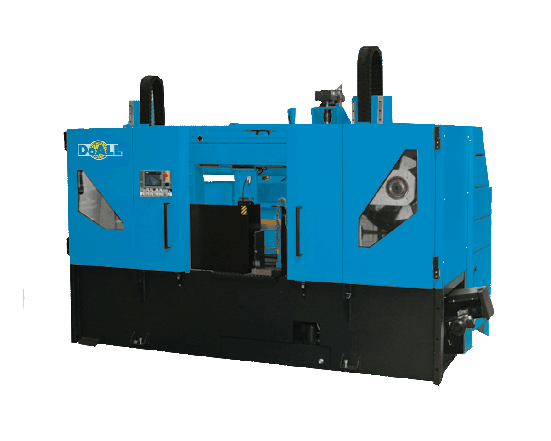

DoAll Dual Column Ball Screw Band Saw DC-620CNC

DoAll Dual Column Ball Screw Band Saw DC-620CNC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Band Saw Blade Width: 2 x 0.063" (54×1.6mm)
• Maximum Blade Length: 302-1/4" (7680mm)
• Band Speed: 50-500 fpm (15-150mpm)
• Band Drive Motor: 20hp (15kW)
• Description
• The DC-620CNC Hercules II™ high production, horizontal CNC enclosed band saws from DoALL are highly efficient, automatic, hydraulically controlled machines. The DC-620CNC operates with a ball screw servo motor using "SMART" controls. Thanks to the robust construction of the DC-620CNC, it is possible to programm and cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
• Specifications
• Cutting Capacity Round (Tube or Solid): 21.5″ (550mm) Cutting Capacity Rectangle: 24.5 x 21.5" (620x550mm) Maximum Nesting Capacity: 21.5 x 13.75" (550x350mm) Minimum Nesting Capacity: 3" (75mm) Band Saw Blade Width: 2 x 0.063" (54×1.6mm) Maximum Blade Length: 302-1/4" (7680mm) Band Speed: 50-500 fpm (15-150mpm) Band Drive Motor: 20hp (15kW) Material Pass Line Height: 31 ½" (800mm) Machine Weight: 17052 lbs (7735kg) Dimensions W x L x H: 157 x 91 x 115" (3980x2300x2900mm) Index Single Stroke Min-Max: 0.12-29.5" (3-750mm) Auto Index Multiple Stroke Max: 394" (9999mm) Minimum Butt End: 1.4" (35mm)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-620CNC
• Shipping Method: Flatbed
• Weight: 17,052 lb
• Dimensions: 157 × 91 × 115 in
