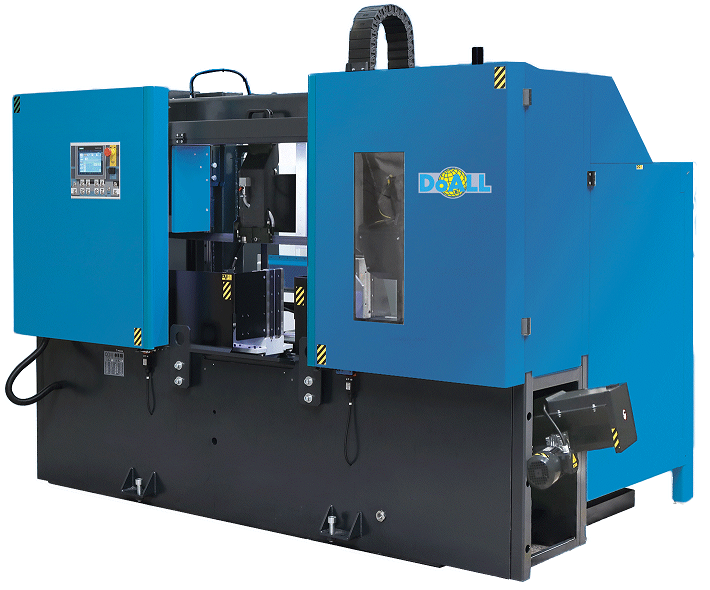

DoAll Column Enclosed CNC Band Saw DC-400CNC

DoAll Column Enclosed CNC Band Saw DC-400CNC is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Band Saw Blade Width: 1-1/2" x 0.05″ (41×1.3mm)
• Maximum Blade Length: 220″ (5580mm)
• Band Speed: 65-328 fpm (20-100mpm)
• Index Single Stroke Min-Max: 0.12-21.7″ (3-550mm)
• Description
• The DC-400CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation.
• Specifications
• Cutting Capacity Round (Tube and Solid): 15.75″ (400mm) Cutting Capacity Rectangle: 15.75" x 15.75″ (400x400mm) Maximum Bundle Capacity: 15.75 x 9.8″ (400x250mm) Band Saw Blade Width: 1-1/2" x 0.05″ (41×1.3mm) Maximum Blade Length: 220″ (5580mm) Band Speed: 65-328 fpm (20-100mpm) Band Drive: 7.5 hp (5.6kW) Hydraulic Pump: 2 hp (1.5kW) Coolant Pump: 0.16 hp (0.12kW) Material Pass Line Height: 30-1/2″ (775mm) Machine Weight: 6040lbs (2740kg) Dimensions W x L x H: 117 x 102.5 x 87″ (2970x2600x2200mm) Index Single Stroke Min-Max: 0.12-21.7″ (3-550mm) Auto Index Multiple Stroke Max: 394″ (9999mm)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-400CNC
• Shipping Method: Flatbed
• Weight: 8,125 lb
• Dimensions: 144 × 76 × 75 in
