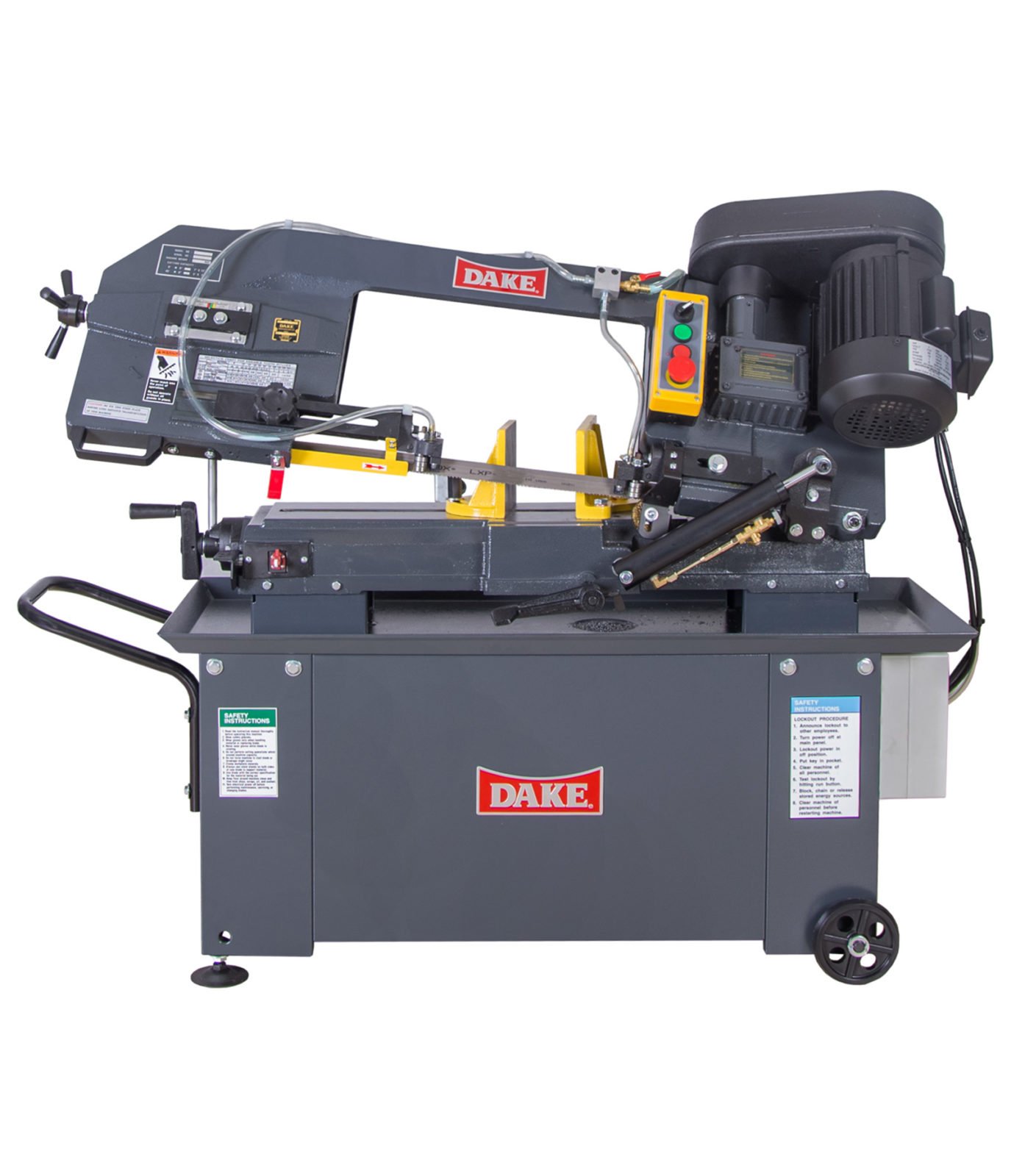

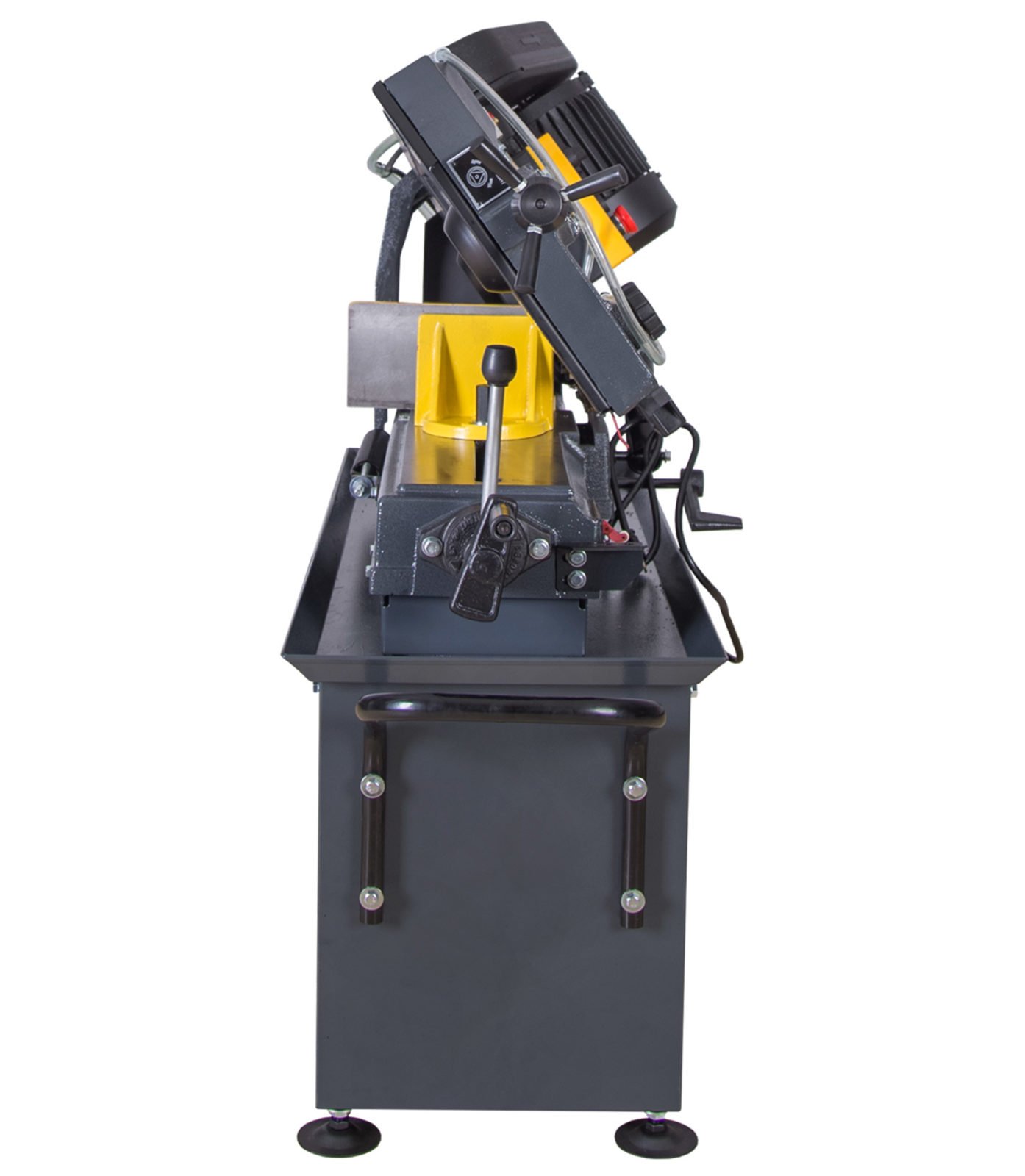

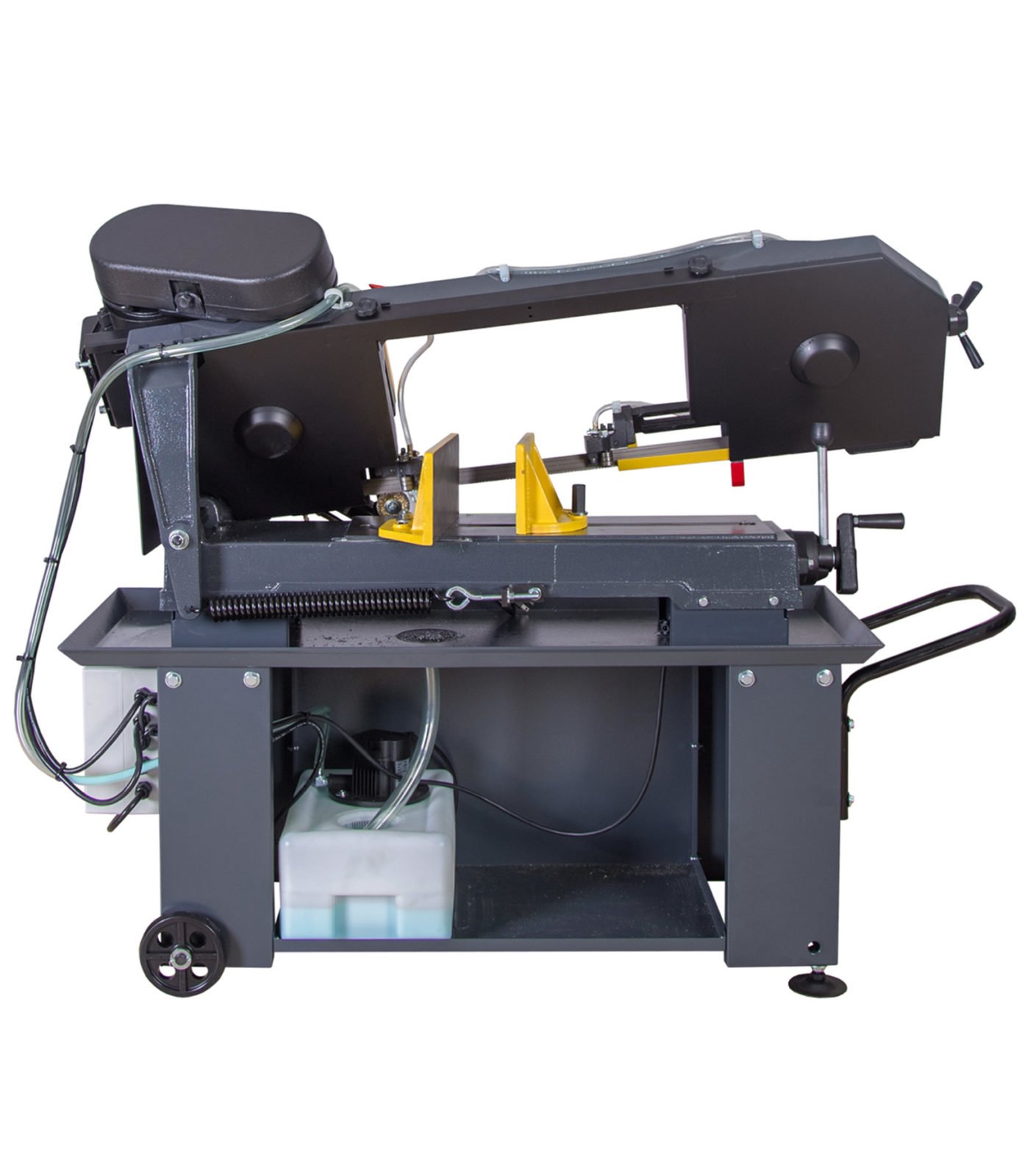

Dake Model SE912 110V Single Phase 9” Round Capacity Standard Duty Horizontal Bandsaw 983101

Dake Model SE912 110V Single Phase 9” Round Capacity Standard Duty Horizontal Bandsaw 983101 is a Dake Corporation product in the Band Saws collection.

Product Details

• Max Blade Speed: 328 fpm
• Bed Work Area: 24½” x 9”
• Floor to Bed: 21¾”
• Blade Size: 104.5” x 1”
• Description
• Standard Duty horizontal bandsaw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner, and wet or dry cutting with simple operation.
• No tool takes more abuse than a horizontal band saw and nobody offers more dependable, more trouble-free horizontal bandsaws than Dake. Their heavy-duty, double-frame construction has been an industry standard since 1941. Since then, Dake’s four models of bandsaws have provided problem-free performance and maintenance-free operation, year after year.
• Features
• Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers
• CE approved low voltage safety reset, thermos overload protection, auto shut off, blade guards, safety interlocks
• Quick release vise and hand wheel action for fast change of material sizes
• Wet/dry cutting
• Hydraulic control for head feed at variable rates to lock head at any height
• Convenient chip brush blade cleaner, storage in base and wheels that roll easily
• Standard Equipment
• Recirculating coolant system
• Steel base with wheels
• Low voltage controls
• 6-8 TPI standard blade
• Specifications
• Capacity Solid Round 90°: 9” Solid Round 45° Right: 3½” Solid Rectangle 90°: 9” x 12” Solid Rectangle 45°: 3½” x 7½”
• Solid Round 90°: 9”
• Solid Round 45° Right: 3½”
• Solid Rectangle 90°: 9” x 12”
• Solid Rectangle 45°: 3½” x 7½”
• Blade Width: 1”
• Blade Length: 104.5”
• Balde Speeds: 98 / 164 / 246 / 328 fpm
• Horsepower: 1 HP
• Electrical Requirements: 110V Single Phase
• Machine Dims: 56” x 21” x 59”
• Approx Weight: 500 lbs
• Optional Add-Ons
• 3-4 TPI Blade
• 10-14 TPI Blade

Specifications

• Manufacturer: Dake Corporation
• SKU: 983101
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 72 × 36 × 50 in
