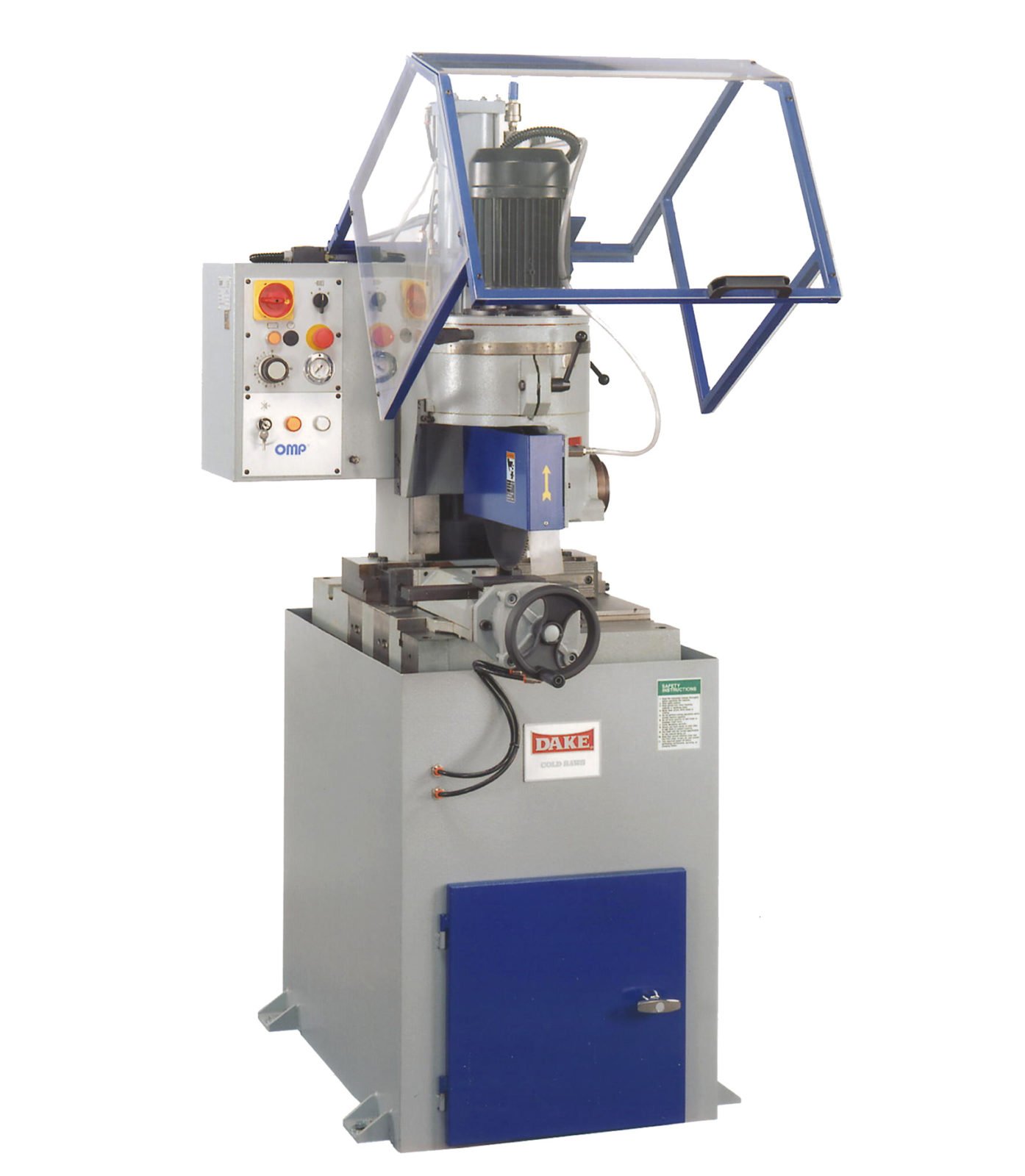

Dake Model 370S 220V Three Phase 14½” Euromatic Semi-Automatic Ferrous Cold Saw 976200-2

Dake Model 370S 220V Three Phase 14½” Euromatic Semi-Automatic Ferrous Cold Saw 976200-2 is a Dake Corporation product in the Cold Saws collection.

Product Details

• Max Vise Opening: 8¾”
• Max Angle: 45° / 90°Left/Right
• Speeds: 25/50 rpm
• Work Height: 35”
• Description
• Semi-automatic ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45° and 90° left/right, three gib guides, a manual oiler, and a self-adjusting, metal chip brush.
• Features
• Head rotates 45° right of center for miter cutting and up to 90° left of center for miter cutting and slotting
• Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
• Manual oiler to lubricate 1” thick, hardened vertical ways
• 3.5/4.5 HP motor has the muscle to drive a 14½” or 12” blade quickly and quietly through solids
• Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
• Table features two removable surface wear plates to support longer cut lengths
• Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
• Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
• Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
• Self-adjusting, metal chip brush fills removable chip drawer
• Ability to add a programmable feed system to make fully automatic with wide range of capabilities
• Swap cutting head to gain non-ferrous/ferrous option on same saw
• Standard Equipment
• Blade
• Coolant
• Saw blade selector calculator
• Tools kit for changing blades
• Instruction and service manual
• Adjustable positive stop
• Specifications
• Cutting Ability: Ferrous/Non-Ferrous/Plastic
• Max Blade Diameter: 14½”
• Slotting: Yes
• Electrical Requirements: 220V Three Phase 3.5HP
• Machine Dims: 28” x 39” x 73”
• Approx Weight: 1,360 lbs
• Capacities
• Solid Round 90°: 4¼” 45°: 3-5/8”
• 90°: 4¼”
• 45°: 3-5/8”
• Tube 90°: 5-1/16” 45°: 5”
• 90°: 5-1/16”
• 45°: 5”
• Square 90°: 4¼” 45°: 3-7/8”
• 45°: 3-7/8”
• Rectangle 90°: 4” x 7” 45°: 4” x 6”
• 90°: 4” x 7”
• 45°: 4” x 6”
• Optional Add-Ons
• 440V unit available (please contact a sales rep for more info)
• Ferrous Cutting Head (300128)
• Non-Ferrous Cutting Head (79917)
• Loading Table (301644)
• Unloading Table (301645)
• Second Main Vice (300196)
• Mist Kit (77178)

Specifications

• Manufacturer: Dake Corporation
• SKU: 976200-2
• Shipping Method: LTL Freight
• Weight: 1,420 lb
• Dimensions: 52 × 40 × 80 in
