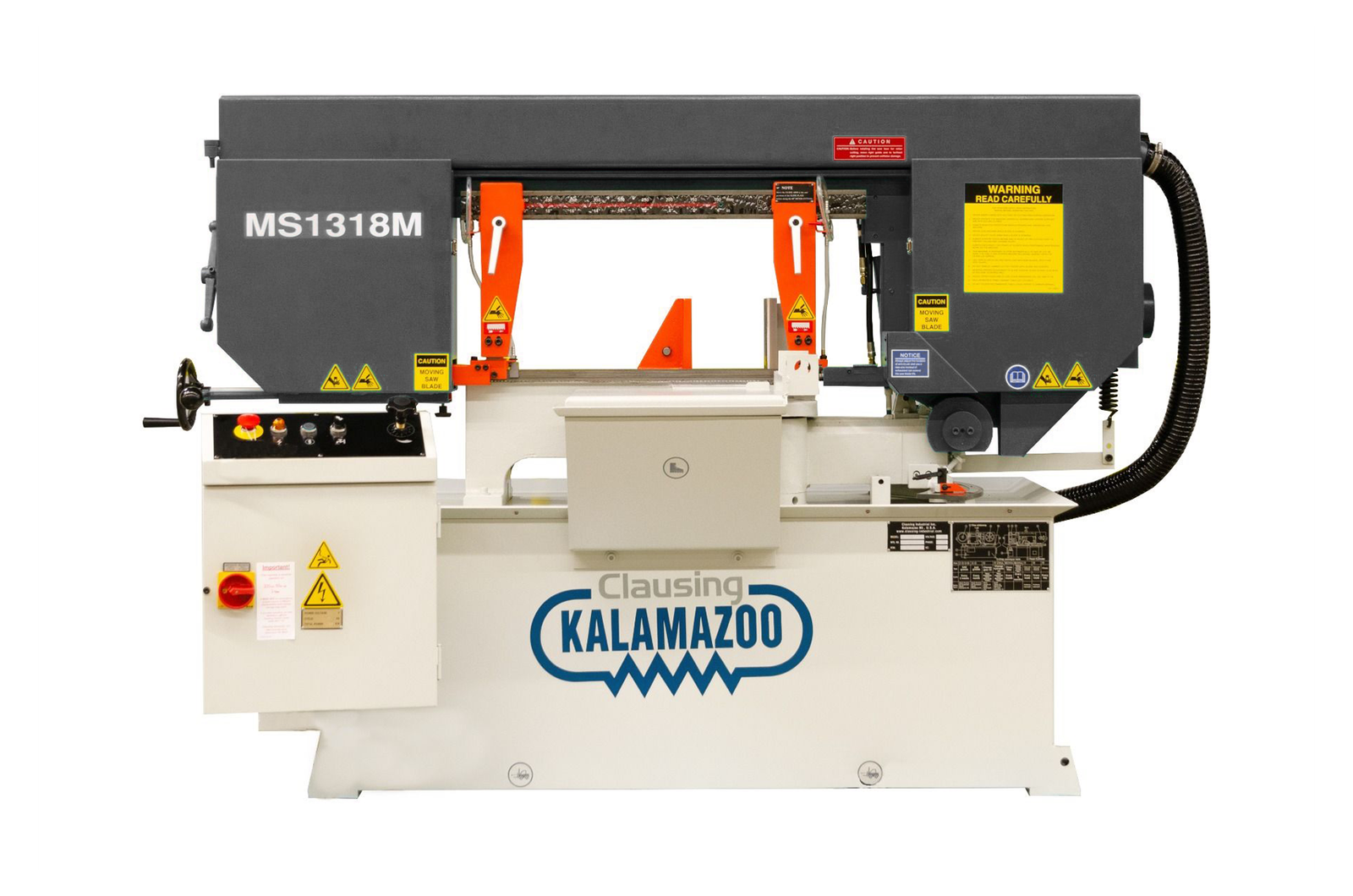

Clausing Kalamazoo 460V Three Phase 13”x18” Variable-Speed Manual Horizontal Miter Bandsaw MS1318M

Clausing Kalamazoo 460V Three Phase 13”x18” Variable-Speed Manual Horizontal Miter Bandsaw MS1318M is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1” x 0.035” x 163”
• Blade speed (variable): 98-328 FPM
• Swivel angle range: 0° to 60°
• Bed height: 32.3”
• Description
• The Clausing Kalamazoo MS1318M Manual Horizontal Miter Bandsaw can allow the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60° cuts. The manual 4 speed step pulley drive will adjust the speed of the pulleys with a button or knob. As the 3HP drive motor with magnetic starter & overload protection.
• Features
• Swivel head allows the operator to accurately pivot head for angle cuts from 0° to 60°. Swing the head to desired angle without having to move the cutting material (stock can stay at 90° to saw bed)
• 3HP drive motor with magnetic starter & overload protection
• Manual vise clamping and raising the saw head at end of cut
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed
• Chip brush removes chip from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity and stability for an accurate cut
• Quick action vise
• Flushing hose
• Adjustable work stop
• Tool box with tools
• Manual and parts list
• Cutting Capacities
• 90° Round: 13” Square: 11” Rectangular: 11” x 17.3”
• Round: 13”
• Square: 11”
• Rectangular: 11” x 17.3”
• 45ׄ° Round: 11.8” Square: 9.4” Rectangular: 11” x 9.4”
• Round: 11.8”
• Square: 9.4”
• Rectangular: 11” x 9.4”
• 60° Round: 8.6” Square: 8.6” Rectangular: 11” x 8.6”
• Round: 8.6”
• Square: 8.6”
• Rectangular: 11” x 8.6”
• Specifications
• Coolant motor: 1/8 HP
• Coolant capacity: 7.8 gallon
• Electrical Requirements: 460V Three Phase 3HP
• Machine Dims: 85” x 52” x 58”
• Approx Weight: 1,320 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Bandsaw blade tension gauge (BT01)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: MS1318M(460V)
• Shipping Method: LTL Freight
• Weight: 1,760 lb
• Dimensions: 89 × 57 × 63 in
