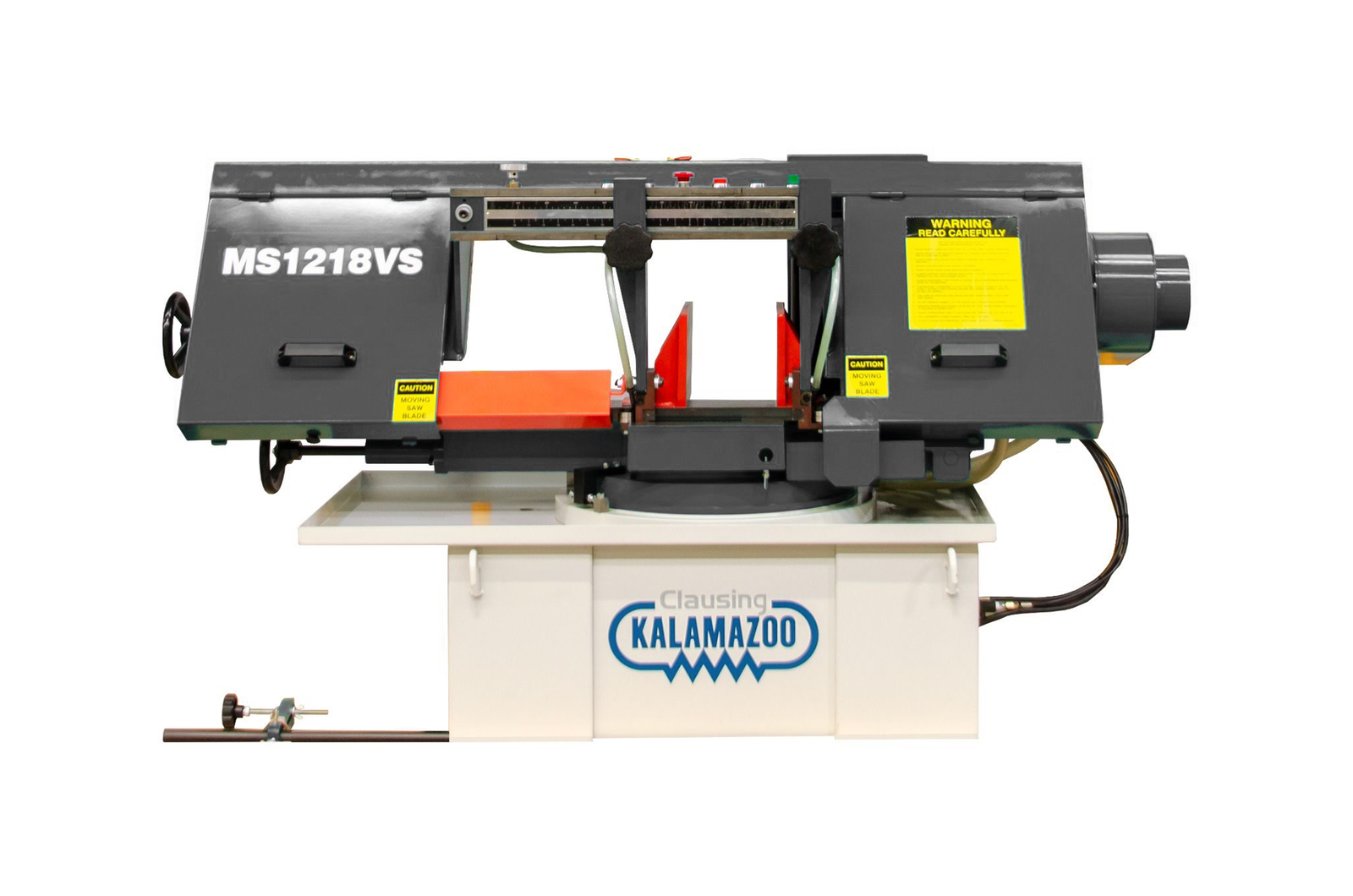

Clausing Kalamazoo 460V Three Phase 12” Variable-Speed Semi-Automatic Horizontal Miter Bandsaw MS1218VS

Clausing Kalamazoo 460V Three Phase 12” Variable-Speed Semi-Automatic Horizontal Miter Bandsaw MS1218VS is a Clausing Industrial product in the Band Saws collection.

Product Details

• Band wheel diameter: 15.4”
• Blade size: 1” x 0.035” x 136.5
• Vise opening: 18”
• Blade speeds (variable): 80-360 fpm
• Description
• Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is made. Variable drive speed will adjust the speed of the pulleys with a button or knob. Two HP main drive with magnetic starter and overload protection.
• Features
• 0°-45° miter cutting, make angle cuts without swinging material to be cut
• 2 HP main drive with magnetic starter and overload protection
• Variable speed drive
• Re-circulating coolant system with application through both guides
• Solid carbide blade guides with rollers
• Quick position vise
• Automatic shut-off at end of cut
• Totally enclosed transmission
• Blade cleaning brush
• Cast iron bed
• 1” wide blade
• Stock stop
• Easily adjusted head feed with hydraulic power lift
• Cutting Capacities
• 90° Round: 12” Square: 10” x 10” Rectangular: 10” x 16”
• Round: 12”
• Square: 10” x 10”
• Rectangular: 10” x 16”
• 45° Round: 8” Square: 8” x 8” Rectangular: 8” x 12”
• Round: 8”
• Square: 8” x 8”
• Rectangular: 8” x 12”
• Specifications
• Bed Height: 21¾”
• Hydraulic motor: ¼ HP
• Coolant pump: 1/8 HP
• Electrical Requirements: 460V Three Phase 2HP
• Machine Dims: 75” x 34” (49.5 w/stock stop) x 64”
• Approx Weight: 926 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Band saw blade tension gauge (BT01)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: MS1218VS(460V)
• Shipping Method: LTL Freight
• Weight: 1,129 lb
• Dimensions: 78 × 36 × 46 in
