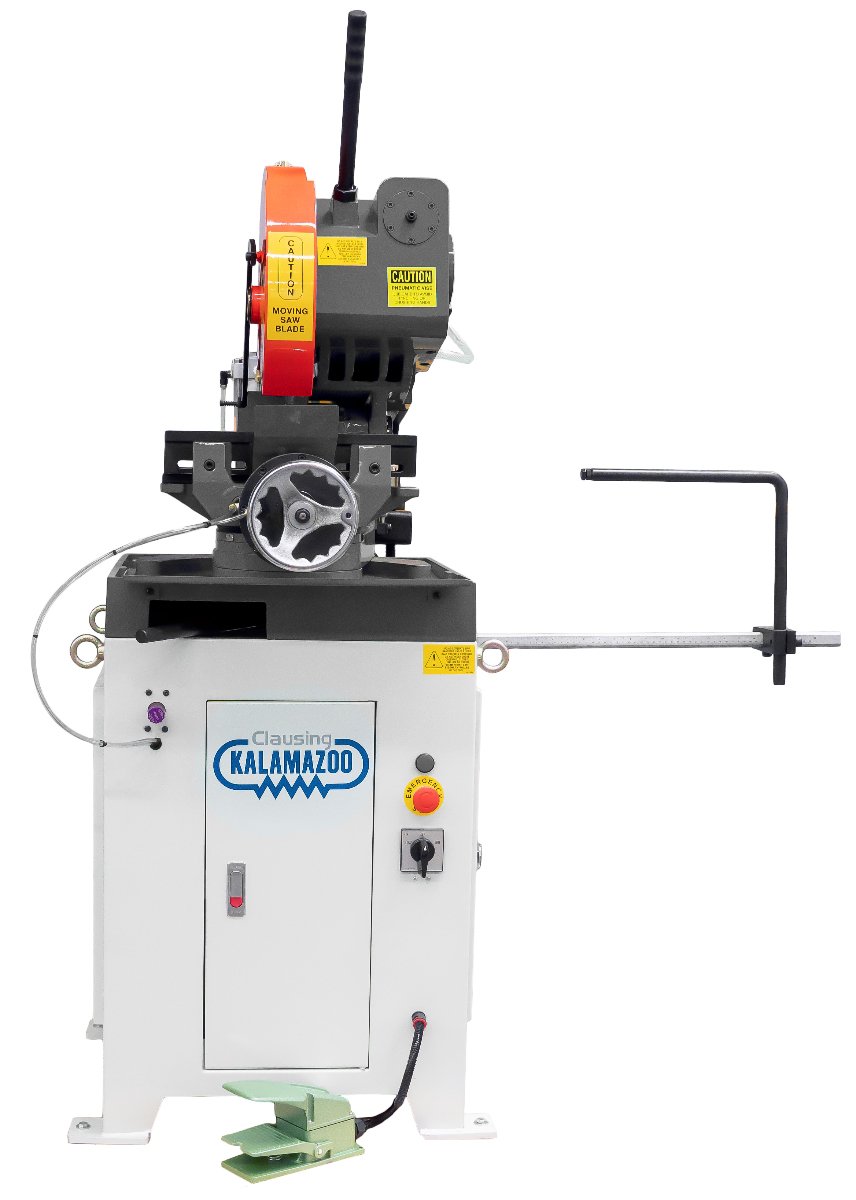

Clausing Kalamazoo 230V Three Phase 14” Dual-Speed Semi-Automatic Ferrous Circular Cold Saw with Pneumatic Power Vise FHC350SA

Clausing Kalamazoo 230V Three Phase 14” Dual-Speed Semi-Automatic Ferrous Circular Cold Saw with Pneumatic Power Vise FHC350SA is a Clausing Industrial product in the Cold Saws collection.

Product Details

• Blade Width: 0.118”
• Cutting Angles (left/right): 45°
• Blade Speeds: 26 & 52 RPM
• Max Vise Opening: 6”
• Description
• Ferrous model cold saws handle solid, tubing, and flat stock mild steel giving a burr free cut. The ability to miter from 45 degrees to 90 degrees is perfect for many fabricating applications. The 2 speed spindle motor along with blade tooth selection allows for various ferrous material cutting applications. Semi-Automatic operation allows for hands free operation of the material cutting.
• The unique self-centering vise keeps the material perfectly centered with the blade for absolutely perfect cuts.
• Three phase refers to three individual lines that connect to and run voltage through the motor.
• Features
• Semi-Automatic Operation
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Automatic cutting cycle
• Automatic feed rate
• Two motor speeds for versatility
• Cast iron construction
• Self-centering vise with angle scale
• Pneumatic power vise for fast secure part clamping
• Head rotates 45 degrees left and right of center
• Flood coolant system
• Heavy duty sheet metal base
• Adjustable stock stop
• Foot pedal cycle start
• Tool Kit
• Circular saw blade HSS 14”
• Operation and maintenance manual
• Specifications
• Machine Style: Semi-Automatic
• Drive Type; gear box w/worm gear
• Drive Motor: 3HP / 4HP
• Blade Size: 14”
• Control: 110V
• Coolant System: Yes
• Electrical Requirements: 230V Three Phase
• Machine Dims: 55” x 41” x 75”
• Approx Weight: 748 lbs
• Cutting Capacities
• Round Tube 90°: 4.3” 45°: 2.95”
• 90°: 4.3”
• 45°: 2.95”
• Square Tube 90°: 4.3” x 4.3” 45°: 3.5” x 3.5”
• 90°: 4.3” x 4.3”
• 45°: 3.5” x 3.5”
• Round Solid 90°: 2.36” 45°: 1.96”
• 90°: 2.36”
• 45°: 1.96”
• Square Solid 90°: 1.96” x 1.96” 45°: 1.77” x 1.77”
• 90°: 1.96” x 1.96”
• 45°: 1.77” x 1.77”
• Options
• Other voltages available (please contact a sales rep for more info)
• Stock Stand Assembly 37” – 46” (P12)
• Roller Stock Table 12” x 5’ (KSA64)
• Roller Stock Table 12” x 10’ (KSA63)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)
• SAWZIT 55 Gallon Drum (CSR55)
• Various Blade Sizes

Specifications

• Manufacturer: Clausing Industrial
• SKU: FHC350SA
• Shipping Method: LTL Freight
• Weight: 880 lb
• Dimensions: 30 × 42 × 60 in
