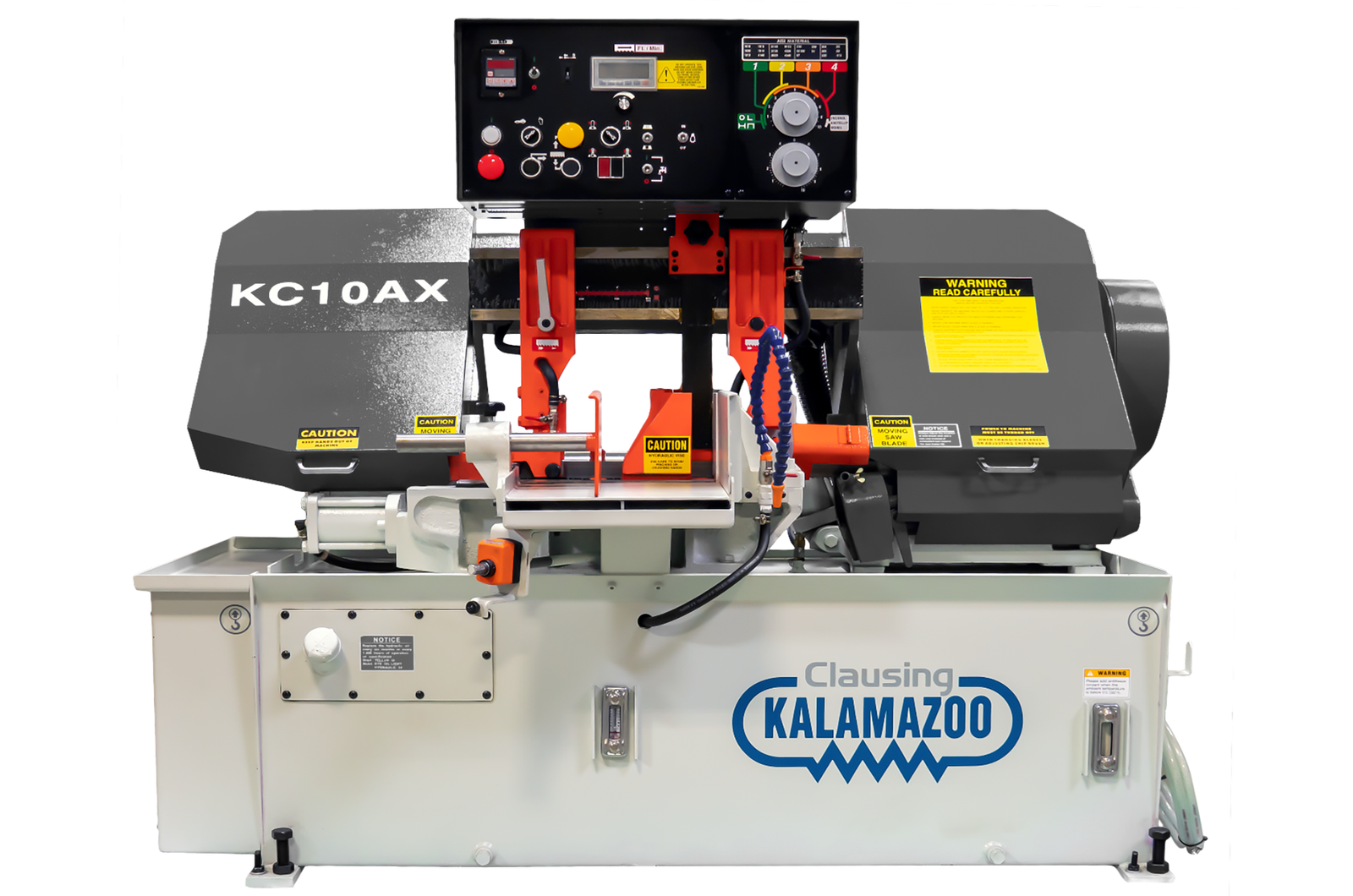

Clausing Kalamazoo 230V Three Phase 10”x11” Variable Speed Automatic Horizontal Bandsaw KC10AX

Clausing Kalamazoo 230V Three Phase 10”x11” Variable Speed Automatic Horizontal Bandsaw KC10AX is a Clausing Industrial product in the Band Saws collection.

Product Details

• Band wheel diameter: 15.75”
• Blade size: 1¼” x 0.043” x 138”
• Blade speeds: 66-328 fpm (variable speed)
• Bed Height: 26”
• Description
• This Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
• A powerful drive motor provides the power and the optional hydraulic bunding attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as its reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Full or semi-automatic operation
• Infinitely variable blade speeds
• LED blade speed readout
• Vise clamps work piece both sides of blade
• Hydraulic down feed
• Automatic height setting feature
• Auto shutoff at end of material or after preset number of cuts
• Front-mounted digital length gauge
• Blade breakage/stoppage switch
• 110V control circuit
• Overload protection
• Recirculating coolant system
• Shuttle vise
• Hydraulic blade tension system
• (1) general purpose bi-metal blade
• Flushing hose for cleanup
• Tool kit
• Operator’s manual
• 90° Cutting Capacities
• Round: 10”
• Rectangular: 10” x 11”
• Specifications
• Feed accuracy: ± 0.004” to 0.008”
• Length of remnant material (manual): 0.59”
• Length of remnant material (automatic): 1.97”
• Min cut thickness: 0.354”
• Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 6.1” x 7.87” Height: 1.97” to 4.72”
• Width: 6.1” x 7.87”
• Height: 1.97” to 4.72”
• Feed length/index: 15.75”
• Max feed (9 times): 141.75”
• Coolant: Recirculating
• Coolant Capacity: 16.8 gallons
• Hydraulic oil capacity: 10.5 gallons
• Hydraulic pump motor: 1HP
• Electrical Requirements: 230V Three Phase 60Hz
• Machine Dims: 74” x 73” x 62”
• Approx Weight: 2,660 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Vise press regulator, auto models (VP10)
• Chip conveyor (CM1000)
• Hydraulic bundle clamp (CM1001)
• Roller table, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KC10AX
• Shipping Method: LTL Freight
• Weight: 2,830 lb
• Dimensions: 80 × 80 × 65 in
