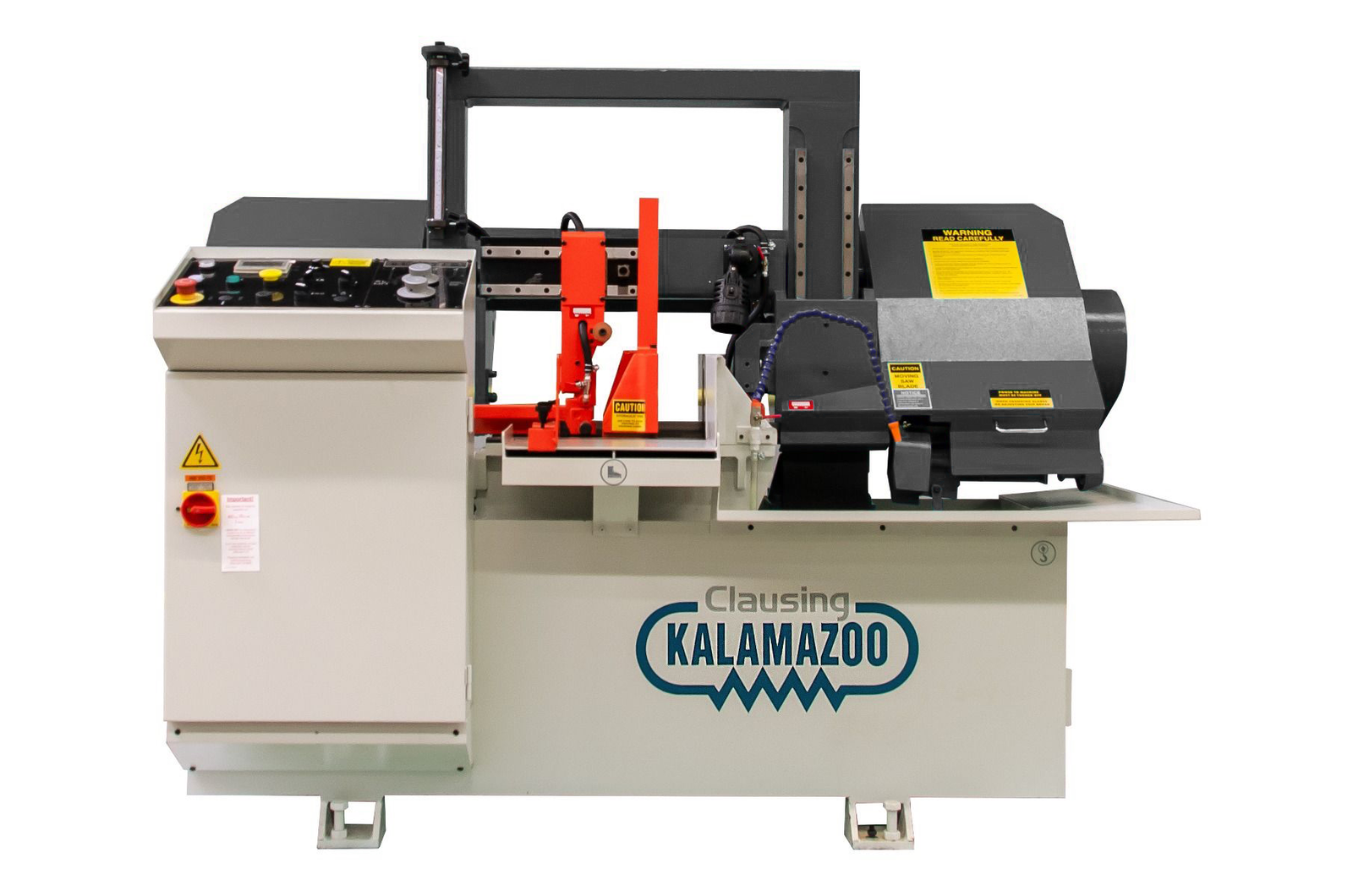

Clausing Kalamazoo 230V Three Phase 10” Semi-Automatic Double-Column Variable-Speed Horizontal Bandsaw H1013SA

Clausing Kalamazoo 230V Three Phase 10” Semi-Automatic Double-Column Variable-Speed Horizontal Bandsaw H1013SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Size: 1.25” x 0.042” x 161”
• Blade Speeds (variable): 49-262 FPM
• Bed Height: 31.1”
• Coolant Capacity: 10.57 gallons
• Description
• This Semi-Automatic Double Column Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance is semi-automatic operation.
• Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Infinitely variable speed
• Digital blade indicator
• Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads, and an additional wire brush
• Operation and parts manual
• Specifications
• Blade Tension: hydraulic
• Hydraulic Pump Motor: 1 HP
• Hydraulic Oil Capacity: 6.6 gallons
• Coolant: recirculating 1/8HP
• Electrical Requirements: 230V Three Phase 5HP
• Machine Dims: 47” x 78” x 61”
• Approx Weight: 2,100 lbs
• Cutting Capacities @ 90°
• Round: 10.2”
• Square: 10.2”
• Rectangular: 10.2” x 13.4”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock Stand Assembly 21”-30” Height (P11)
• Vise Pressure Regulator Single Vise (VP10SA)
• Hydraulic Bundle Clamp (CM1002SA)
• HD Roll Tables, Various Sizes
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H1013SA
• Shipping Method: LTL Freight
• Weight: 2,500 lb
• Dimensions: 52 × 83 × 66 in
