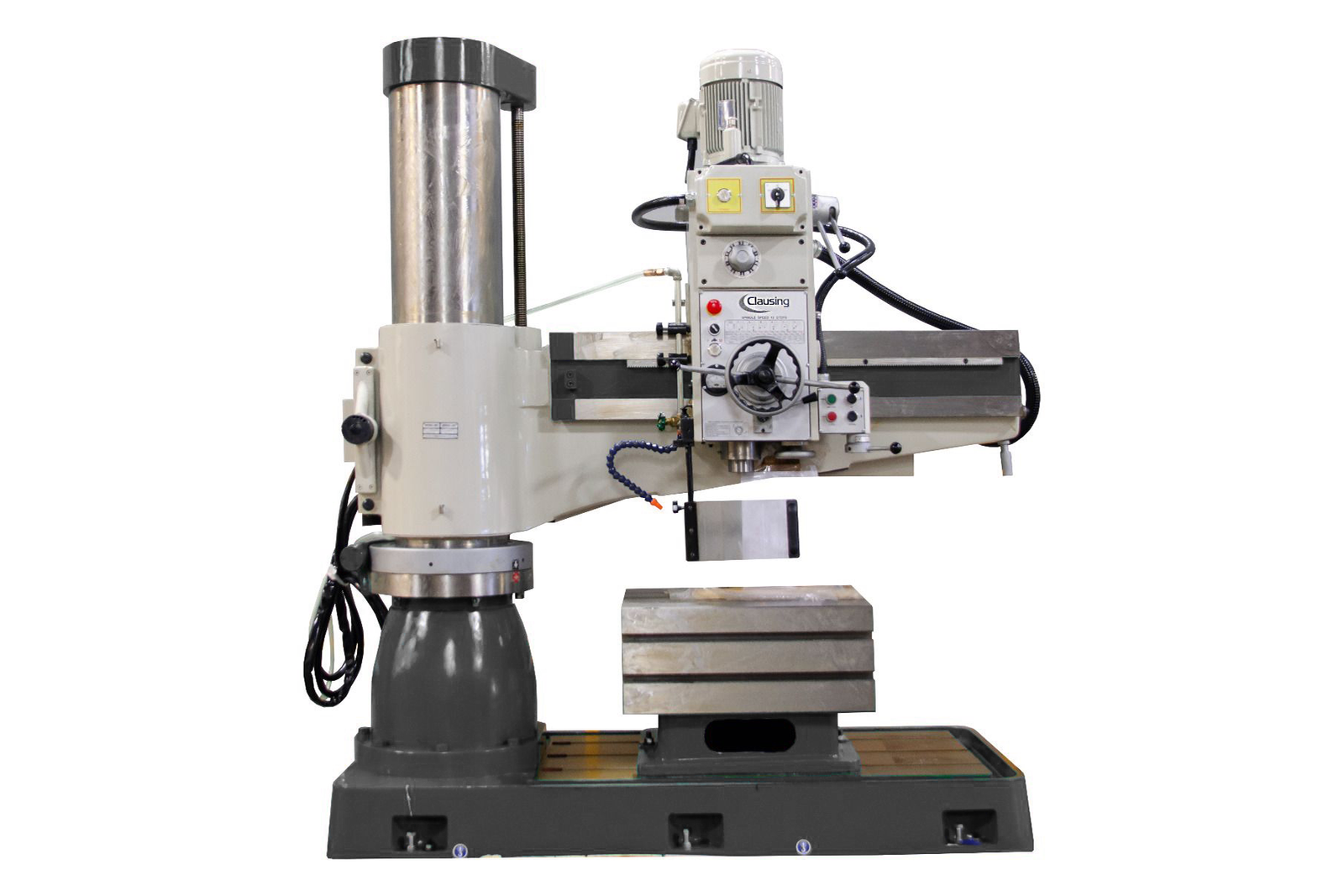

Clausing 230V Three Phase 63” Arm 12-Speed Radial Drill with Hydraulic Clamping System CLC1600H

Clausing 230V Three Phase 63” Arm 12-Speed Radial Drill with Hydraulic Clamping System CLC1600H is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: MT5
• Spindle stroke: 10.63”
• Quill diameter: 3.15”
• Spindle speeds (12): 56-1450 rpm
• Description
• Radial Arm Drills allow for drilling and boring small to massive holes in large oversized work pieces. Clausing’s Radial Drill design allows for the spindle head to move along the length of the arm and the arm height to be adjusted and rotated. This allows for precise drilling along many angles. Special spindle balance mechanism, superior to a traditional balance mechanism extends Balance Spring life.
• Hardened and ground steel gears, double walled column, large bearing surface for easy arm rotation, hardened steel wear strips for excellent head travel, power spindle feeds with an efficient coolant system, make Clausing Radial Dills your choice for the tough jobs.
• Features
• Equipped with hydraulic step-by-step clamping system, with proper selection on push button switch. Column, arm, gear-box can be clamped/released independently. Very easy to be operated and tools will always stay at the same point after tools shifting
• Gears in gear-box are cooled by oil cycled by an oil pump to minimize gear wear
• Friction type disc clutch absorbs impact force caused by vertical movement of spindle and protects all transmission units inside gear-box. With quick spindle return, the clutch will help speed-up the tapping operation
• Specially designed manual tools ejector (drift)
• Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage
• Speed preselection, speed change is hydraulically actuated. Fast and very easy to operate
• Coolant system
• Work light
• Toolkit and manuals
• 25”x19”x19” Box Table
• CSA Electrics (non-certified)(Spindle guard, UL safety door & main disconnect)
• CSA/UL listed motors
• Capacities
• Drilling Steel: 1.97” Cast iron: 2.36”
• Steel: 1.97”
• Cast iron: 2.36”
• Tapping Steel: 1.57” Cast iron: 1.97”
• Steel: 1.57”
• Cast iron: 1.97”
• Specifications
• Number of feeds: 3
• Spindle feed rate (in/rev): 0.0023”, 0.004”, 0.008”
• Column sleeve dia: 12.6”
• Column face to spindle center (min/max): 13.78” / 63”
• Spindle head travel: 49.2”
• Base surface to spindle end (min/max): 18.31” / 55.9”
• Arm vertical travel: 36.7”
• Arm rotation (right & left): 180°
• Max machine height: 108.7”
• Baseplate working surface: 70.9” x 40.4”
• Box table dims: 24.8” x 19.7” x 19.7”
• Base dims: 100.4” x 38.2” x 7.9”
• Spindle drive motor: 5HP (2sp)
• Elevating motor: 2HP
• Clamping motor: 1HP
• Coolant pump motor: 1/8HP
• Electrical Requirements: 230V Three Phase
• Machine Dims: 101” x 38” x 86”
• Approx Weight: 7,275 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• 7.5HP motor upgrade in lieu of 5HP motor UL listed (CLS-7UL)
• Large tilt table (CLS100)
• Small tilt table (CLS101)
• Extra large box table (CLS102)
• Extra standard box table (CLS102C)
• UL spindle motor 5HP normal brake system active at e-stop (CLS-SMB5UL)
• UL spindle motor 5HP power off brake system active at e-stop and forward/reverse lever (CLS-SMB5ULP)
• UL spindle motor 10HP normal brake system active at e-stop (CLS-SMB7UL)
• UL spindle motor 10HP power off brake system active at e-stop and forward/reverse lever (CLS-SBM7ULP)
• Auto reversing tapping feature 5MT (CLS-200A)

Specifications

• Manufacturer: Clausing Industrial
• SKU: CLC1600H
• Shipping Method: Flatbed
• Weight: 8,378 lb
• Dimensions: 105 × 44 × 95 in
