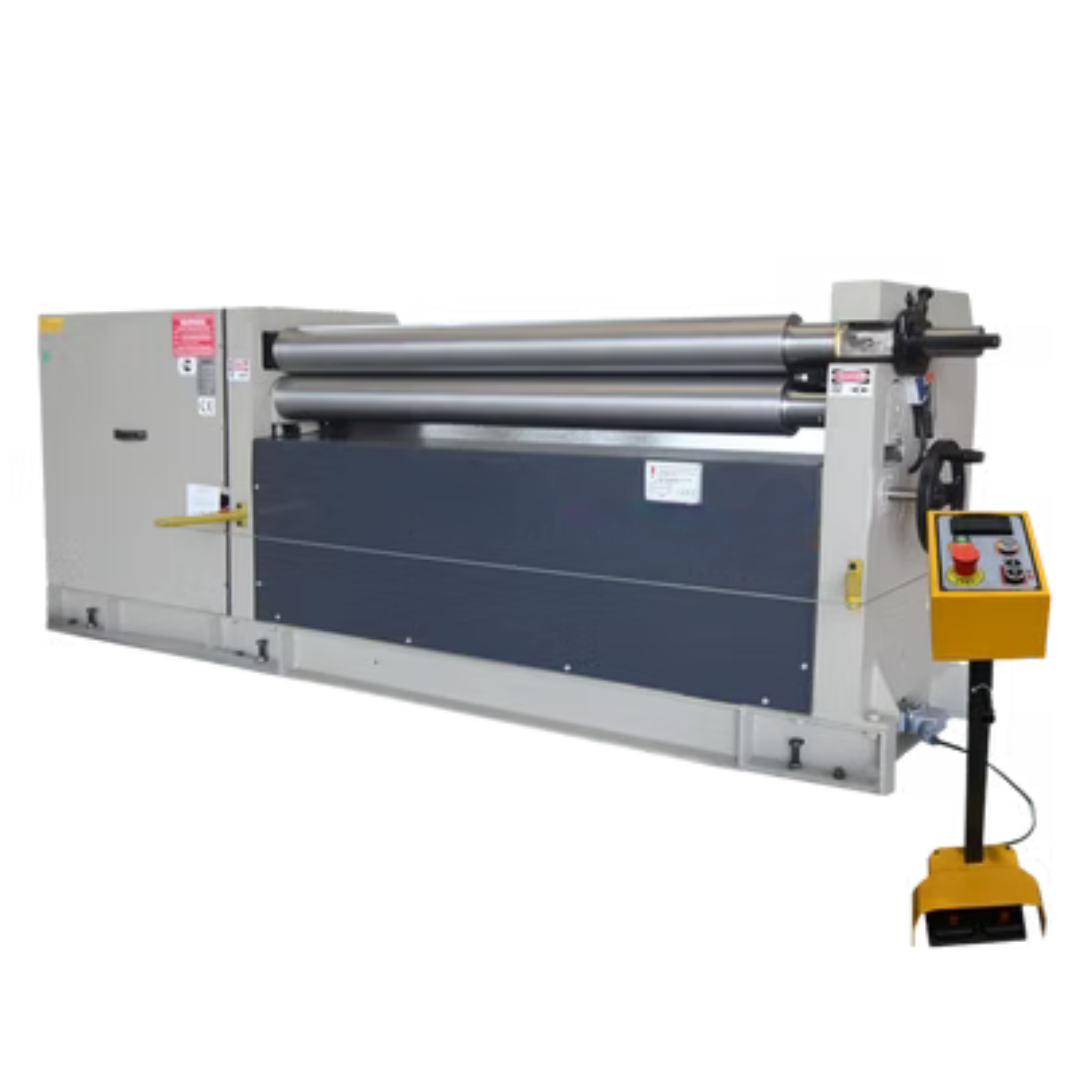

Carell Industrial MRM-S Series 5’ x ¼” 220V Three Phase 3-Roll Powered Initial Pinch Plate Roll 1550×170

Carell Industrial MRM-S Series 5’ x ¼” 220V Three Phase 3-Roll Powered Initial Pinch Plate Roll 1550×170 is a Carell Industrial Solutions product in the Plate Roll collection.

Product Details

• Bending maximum: ¼”
• Top & Pinch Roll OD: 6.7” (170mm)
• Lateral bending roll OD: 6.7”
• Production velocity: 12 fpm
• Description
• Carell’s MRM-S series model 1550×170 unit is a 5’ x ¼”, 3 roll, single initial pinch plate bending machine with powered adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls using high efficiency motor/reduction units.
• Features
• Both upper roll and central pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears
• Base in steel, electro-welded and stress relieved
• Lateral roll, idle and moving on roller bearings
• Pinch roll pinch pressure adjustable by precision worm gear movement
• Front quick release top roll with rotation lock out safety switch
• Lateral roll movement via electric motor and heavy duty worm gear drive for precise positioning and maximum power
• Lateral bending roll and pinch roll incline for cone working
• Push button controls, low voltage 24VAC for safety
• Multi point safety system including circumferential trip wire
• Instruction manual
• Standard Equipment
• Cone rolling attachment
• Induction hardened rolls
• Polished rolls
• LED readout on bending roll
• Powered pinch roll adjustment up/down
• Add-on foot pedal for CW and CCW
• Specifications
• Useful length: 5’ (total roll 62”)
• Rolling maximum: 5/16” to large IDs
• Min ID with think sheet equal to 1.4 x TR OD
• Installed power: 7 HP
• Electrical Requirements: 128” x 30” x 42”
• Approx Weight: 4,070 lbs
• Optional Add-Ons
• LED Readout on pinch roll
• Shaft extensions for section bending rolls
• Section bending dies

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: MRM-S 1550×170
• Shipping Method: Flatbed
• Weight: 4,200 lb
• Dimensions: 135 × 40 × 50 in
