Carell Industrial Comac 3000 Series 220V Three Phase 2” Pipe Double Pinch Hydraulic Angle Roll 304HV

Carell Industrial Comac 3000 Series 220V Three Phase 2” Pipe Double Pinch Hydraulic Angle Roll 304HV is a Carell Industrial Solutions product in the Roll Benders collection.

Product Details

• Rolling Speed: 17 fpm
• Roll Diameters: 8.07”
• Shaft Diameters: 2.36”
• Total Shaft Height: 2.5”
• Description
• The Carell 3000 series of angle rolls gives fabricators a wide range of choices from small footprint to large plant equipment, all designed for long life, reliability, consistent fabrication output, and heavy-duty application. This is particularly beneficial when companies and clients need angle rolls for applications where the workspace is limited in size and scope. When you need manufacturing equipment that is going to deliver consistently, get the right choice for your shop or production line the first time – start with Solutions from Carell.

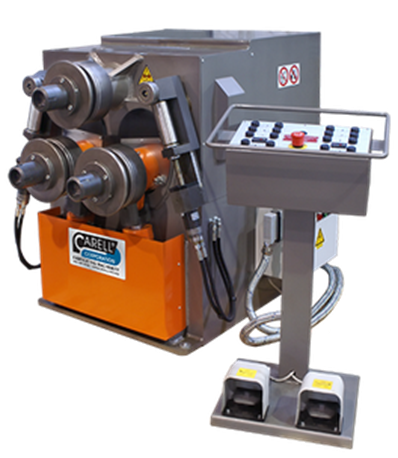

• Carell’s 304HV double initial pinch universal bending machines are available with independent hydraulic adjustment of both lateral bending rolls and powered rotation of all three bending rolls. Lateral guides are fully adjustable in all three axes. This versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper, and other materials.
• Machines are furnished with a set of standard universal rolls suitable for bending standard sections including angle iron leg-in and leg-out. Rolls bend flat bar (on flat and on edge), square bar, tees, channel as well as round bar, angles, square and rectangular tube sections.
• Features
• Double pinch geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine
• Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
• Tri-Directional Lateral Guides with cam rollers for correction inherent twist when rolling angle leg-in
• Operates in both horizontal and vertical orientations
• Rugged rigid, one piece solid steel weldment frame, normalized and precision machined, ample sized access panels and ventilation for internal hydraulic unit
• Larger, high strength steel shafts, heat treated and ground, journaled in dual self-aligning spherical roller bearings for optimum performance, loading and efficiency
• Independent hydraulic adjustment of both lower rolls for double pre-bending
• All 3 rolls driven by heavy dimensioned solid stock cut gears, motor/reducer group for efficiency in torque transmission to all rolls, top shaft protected by adjustable clutch system with speed compensation feature. Rotation control via foot pedals
• Hydraulic power unit integral to the machine frame, well ventilated and protected from overload by maximum pressure relief valves and thermal pump motor switchgear with reset control. Solenoid valve bank situated for easy access, coils equipped with LED illumination indicating its activation
• Multi axis, 6 way, fully adjustable lateral guides for bending angle iron leg-in and leg-out. Linear position readable on graduated scale for precise repeat positioning. Cam follow roller can be positioned at different locations along the cylindrical support roller
• Universal bending rolls with modular components, hardened and wear resistant. Use of components in various configurations permits bending of most all-standard section types including angle iron leg-in and leg-out. Main components, telescoping, allow swift throat width changes for maximizing production. Shaft single keyed for easy tooling changeover
• Forced lubrication system providing full security in the worst possible working conditions
• Satellite mobile control desk equipped with pushbuttons for all roll positions, dual LED digital readouts to monitor bending roll positions, dual foot pedals for left/right rotation, key lock out switch, power on, hydraulic unit on and other controls for maximum operator safety. Controls in low voltage 24V, multipoint safety system
• Standard Equipment
• LED digital displays on all 3000 series angle rolls
• Telescoping modular multi-component roll set
• Tri-Directional Lateral Guides with cam rollers
• Operating and maintenance tools, instruction manual provided
• Specifications
• Section Modulus: 0.61 in³
• Power Output: 5 HP
• Key Width: ¾”
• Usable Shaft: 5”
• Thread Length: 2-7/8”
• Shaft O.D.: 2-3/8”
• Overall Roll O.D.: 8-1/8”
• Oil Capacity: 5 gallons
• Electrical Requirements: 220V Three Phase
• Machine Dims: 53” x 39”x 50”
• Approx Weight: 2,420 lbs
• Capacities
• Flats, Hard Max Section Size: 2¾” x ½” Min ID: 24”
• Max Section Size: 2¾” x ½”
• Min ID: 24”
• Flats, Easy Max Section Size: 4” x 1” Min ID: 26”
• Max Section Size: 4” x 1”
• Min ID: 26”
• Square Bar Max Section Size: 1½” Min ID: 20”
• Max Section Size: 1½”
• Min ID: 20”
• Angle, Leg-Out Max Section Size: 2½” x 5/16” Min ID: 32”
• Max Section Size: 2½” x 5/16”
• Min ID: 32”
• Angle, Leg-In Max Section Size: 2-3/8” x ¼” Min ID: 32”
• Max Section Size: 2-3/8” x ¼”
• Tee, Leg-Out Max Section Size: 2½” x 5/16” Min ID: 26”
• Tee, Leg-In Max Section Size: 2” x 5/16” Min ID: 30”
• Min ID: 30”
• C, Legs-Out Max Section Size: 4” x 2” Min ID: 28”
• Max Section Size: 4” x 2”
• Min ID: 28”
• C, Legs-In Max Section Size: 3” x 2” Min ID: 28”
• Max Section Size: 3” x 2”
• Round Bar Max Section Size: Ø 1¾” Min ID: 20”
• Pipe, Sch 40 Max Section Size: Ø 2” Min ID: 24”
• Max Section Size: Ø 2”
• Round Tube Max Section Size: 3” x 14Ga Min ID: 48"
• Max Section Size: 3” x 14Ga
• Min ID: 48"
• Square Bar Max Section Size: 2¼” x 11Ga
• Max Section Size: 2¼” x 11Ga
• Rectangular Tube Max Section Size: 2½” x 1¼” x 11Ga
• Max Section Size: 2½” x 1¼” x 11Ga
• I-Beam, EZ Max Section Size: S4 x 2” Min ID: 28”
• Max Section Size: S4 x 2”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Additional machine sizes available (please contact a sales rep for more info)
• Variable speed Rotation via Electronic Inverter
• Rolls for tubes, pipes, and special profiles
• Tooling for production of half tubes
• Overhead supports for coil production
• Compression and Tension tooling for C & I hard way
• NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends
• Powered movements on lateral material guides
• LED digital displays for movements on lateral material guides

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: 304HV
• Shipping Method: LTL Freight
• Weight: 2,640 lb
• Dimensions: 53 × 59 × 50 in
