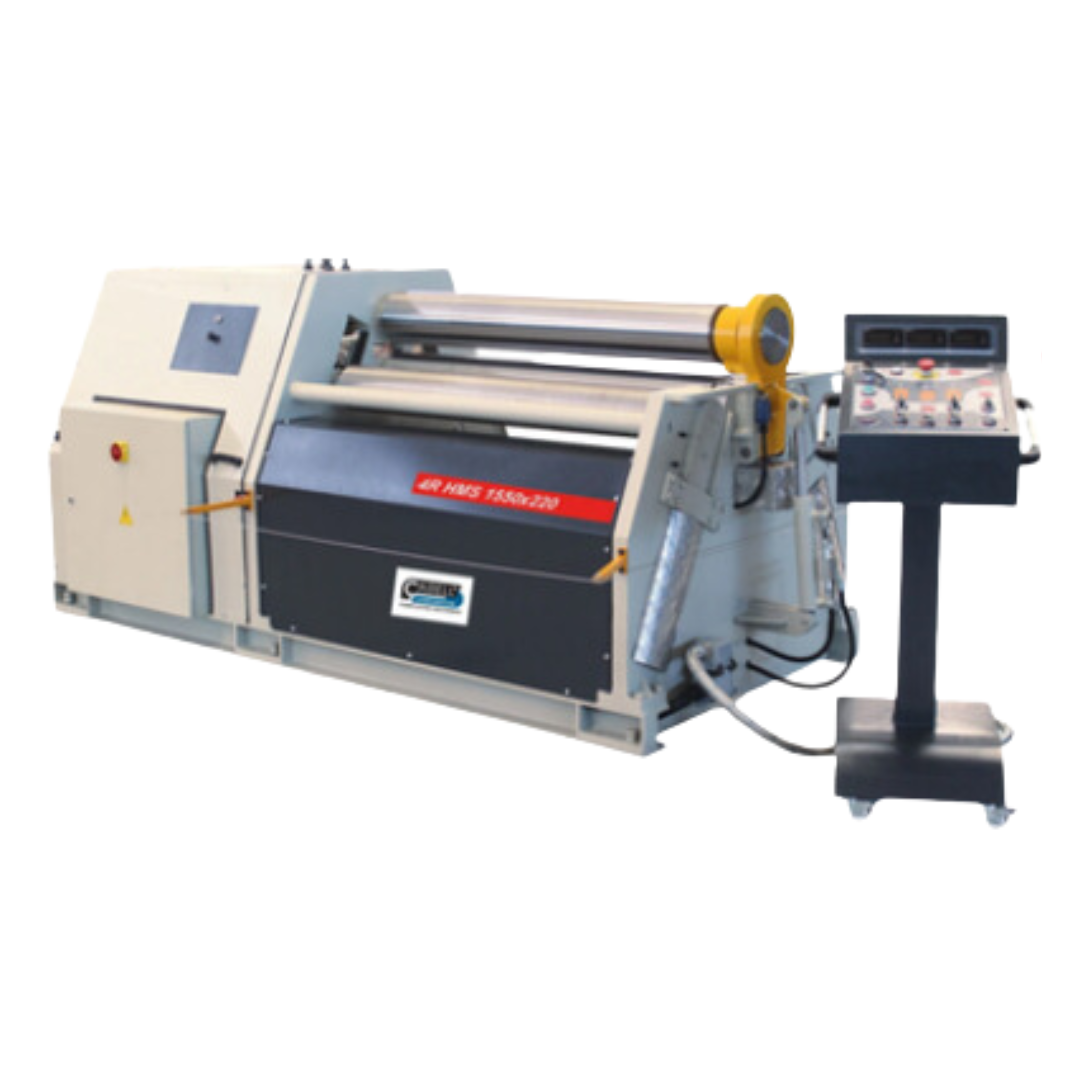

Carell Industrial 4R-HMS Series 220V Three Phase 5’ x ¼” 4-Roll Double-Pinch Hydraulic Plate Roll 1550×180

Carell Industrial 4R-HMS Series 220V Three Phase 5’ x ¼” 4-Roll Double-Pinch Hydraulic Plate Roll 1550×180 is a Carell Industrial Solutions product in the Plate Roll collection.

Product Details

• Top & Pinch Roll Diameter: 7.09” (180mm)
• Lateral Rolls Diameter: 5.90” (150mm)
• Rotation speed: 18 fpm
• Working height: 39”
• Description
• Carell’s Series 4R-HMS Model 1550×180 is a 4 roll, double initial punch, hydraulic plate bending machine which will pre-bend 5’ x ¼” plate at full length and roll 3/8” plate to large diameters. 4R-HMS Machines have hydraulic adjustment and inclination of lateral bending rolls, hydraulic pinch, and electro-mechanical powered rotation. Units are standard with 3 LED readouts, cone device & hardened roll surfaces.
• Features
• Increase productivity on repetitive jobs with shorter cycle times
• Enhance safety with the plate between rollers at most times
• Reduce material handling by flat feeding of sheet into the machine
• Reduce fitup as it is generally easier to produce shorter leading & trailing flats
• Drive System
• Top & pinch rolls driven by electric drive motor coupled with planetary speed reducer unit with pinch roll using cardanic shaft final drive for lower maintenance
• Operation & Construction
• Direct thrust roll movements eliminate swing arms and deliver power direct to the rolls
• Hydraulic drop end with long opening stroke and heavy yoke, operated from control desk
• Hydraulic volumetric parallelism system on rolls for instant, continuous parallelism operated from control desk without use of mechanical moving parts or torsion bars, maintenance free
• Hydraulic cone tilting of lateral rolls from console, no manual cams/jacks, maintenance free
• Pinch pressure regulation, allows operator to compensate for various sheet thickness
• Heavy solid plate steel ends frames distribute loads and reduce torsional deflection
• Push buttons on detached mobile rolling console
• 3 LED Readouts, one for each lower roll
• Electrics/Hydraulics Systems
• Top brand OEM non proprietary components in a NEMA type enclosure with IEC/DIN switchgear, overload protection, low voltage 24VAC controls and TEFC/IEC electric motors
• Integral hydraulic unit uses SAE/DIN modular top brand name OEM components
• PONRV + Pressure Relief Valves ensure steady positioning and protect against overload
• Flexible hose system reduces noise, vibration and fittings
• Safety Systems
• Multiple safety stops with circumferential trip wire and console mounted E-Stop, 24VAC
• Drop end area protected by fixed heavy steel guard, control console has keyed lockout
• Specifications
• Useful length maximum: 60”
• Bending Capacities, 36,000 psi Rolling max large diameters: 0.375” Pre-bending 5.0 x Top Roll OD: 0.250” Pre-bending 1.5 x Top Roll OD: 0.195”
• Rolling max large diameters: 0.375”
• Pre-bending 5.0 x Top Roll OD: 0.250”
• Pre-bending 1.5 x Top Roll OD: 0.195”
• Bending Capacities, 50,000 psi Rolling max large diameters: 0.300” Pre-bending 5.0 x Top Roll OD: 0.200” Pre-bending 1.5 x Top Roll OD: 0.150”
• Rolling max large diameters: 0.300”
• Pre-bending 5.0 x Top Roll OD: 0.200”
• Pre-bending 1.5 x Top Roll OD: 0.150”
• Pump Motor: 7.5 HP
• Oil Capacity & Type: ISO 46
• Main pump: continuous duty – vane type
• Hydraulic motors: Radial piston – high torque
• Speed reduction: planetary, oil bath
• Electrical Requirements: 220V Three Phase 60Hz
• Machine Dims: 132” x 54” x 51”
• Approx Weight: 6,380 lbs
• Optional Add-Ons
• Additional machine sizes available (please contact a sales rep for more info)
• Additional LED Readouts
• 2 Speed Rotation
• Variable Speed Rotation
• Hydraulic lateral material support arm, single articulation
• Hydraulic operated central overhead support for sustaining thin sheet when rolling large diameters
• 4 Axis NC Controls 7.7” Weintek/Easy View Touch Screen HMI

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: 4R-HMS 1550×180
• Shipping Method: Flatbed
• Weight: 6,500 lb
• Dimensions: 140 × 60 × 60 in
