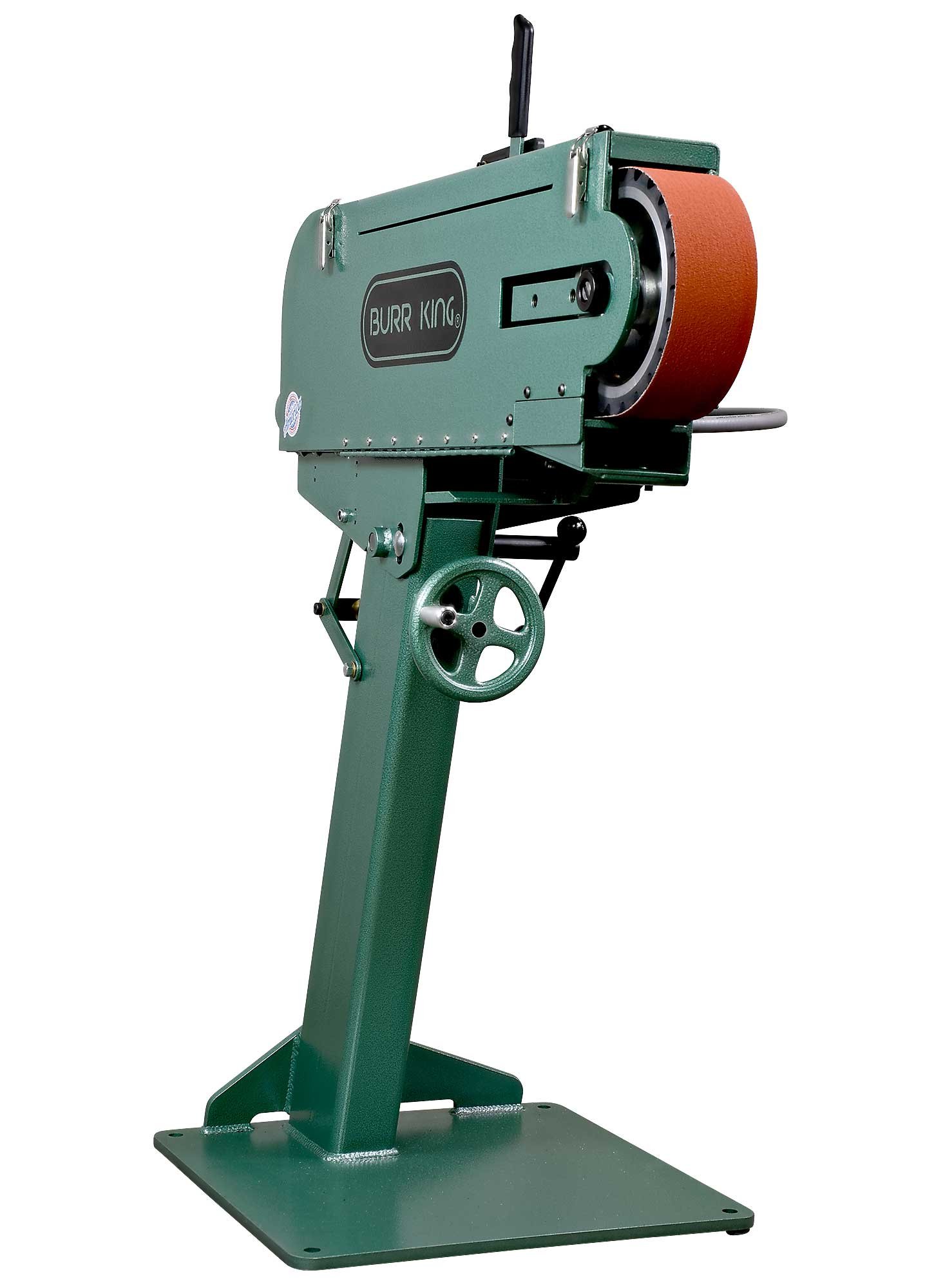

Burr King 3” x 79” Two Wheel Model 979 3 HP 440V Three Phase Belt Grinder with Elevation Control 17413

Burr King 3” x 79” Two Wheel Model 979 3 HP 440V Three Phase Belt Grinder with Elevation Control 17413 is a Burr King product in the Grinding & Sanding collection.

Product Details

• Fixed Speed: 7200 SFPM
• Contact Wheel Size: 8” x 3"
• Elevation Control Option Included
• Motor: 3 HP 440V Three Phase
• Description
• Burr King's model 979 is an aggressive belt grinder featuring a 3 x 79 inch belt track with heavy steel construction to deliver material finishing with the quiet, smoothness that customers expect from a quality grinding machine year after year. This version of the 979 comes with the optional elevation control built into the the heavy duty steel pedestal, making it easy to find that right angle.
• Features
• 3" x 79" belt
• 7200 surface feet per minute (SFPM) belt speed
• 3 horsepower American made motor
• Heavy welded steel construction with cast iron accessories
• 8" diameter – 90 durometer serrated contact wheel with deep groove sealed ball bearings
• Integrated, heavy steel pedestal with optional elevation control
• Ventilated 3" x 18" steel platen
• Can adapt as a swing grinder (attachment not included)
• Quick easy belt change with positive simple belt tracking control.
• Quiet smooth running minimizes operator fatigue
• Adjustable work rest
• Small footprint uses less shop space
• O.S.H.A. compliant belt track and pinch points guarding
• UL/CSA motors and electrical controls
• Specifications
• Motor: 3 HP 440V Three Phase 60Hz
• Wheels: 2
• Throat Clearance: N/A
• Contact Wheel Hardness: 90 Duro
• Belt Tension Quick Change Assembly: Yes
• Positive Belt Tracking Adjustment: Yes
• Overall Height, Width, Depth: 48" x 26" x 44"
• Safety Belt Guard: Yes
• Base Area: 18" x 18"
• Steel Backup Platen: 3" x 18" x 3/8”
• Adjustable Work Rest: Yes
• Elevation Control: Yes
• Construction: Fabricated Steel
• Floor Mount: Yes
• Main Application: Belt Grinding
• Available Accessories
• Dust Scoop
• Magnetic Starter
• Swing Frame Grinder Adapter

Specifications

• Manufacturer: Burr King
• SKU: 17413
• Shipping Method: LTL Freight
• Weight: 460 lb
• Dimensions: 48 × 48 × 58 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
