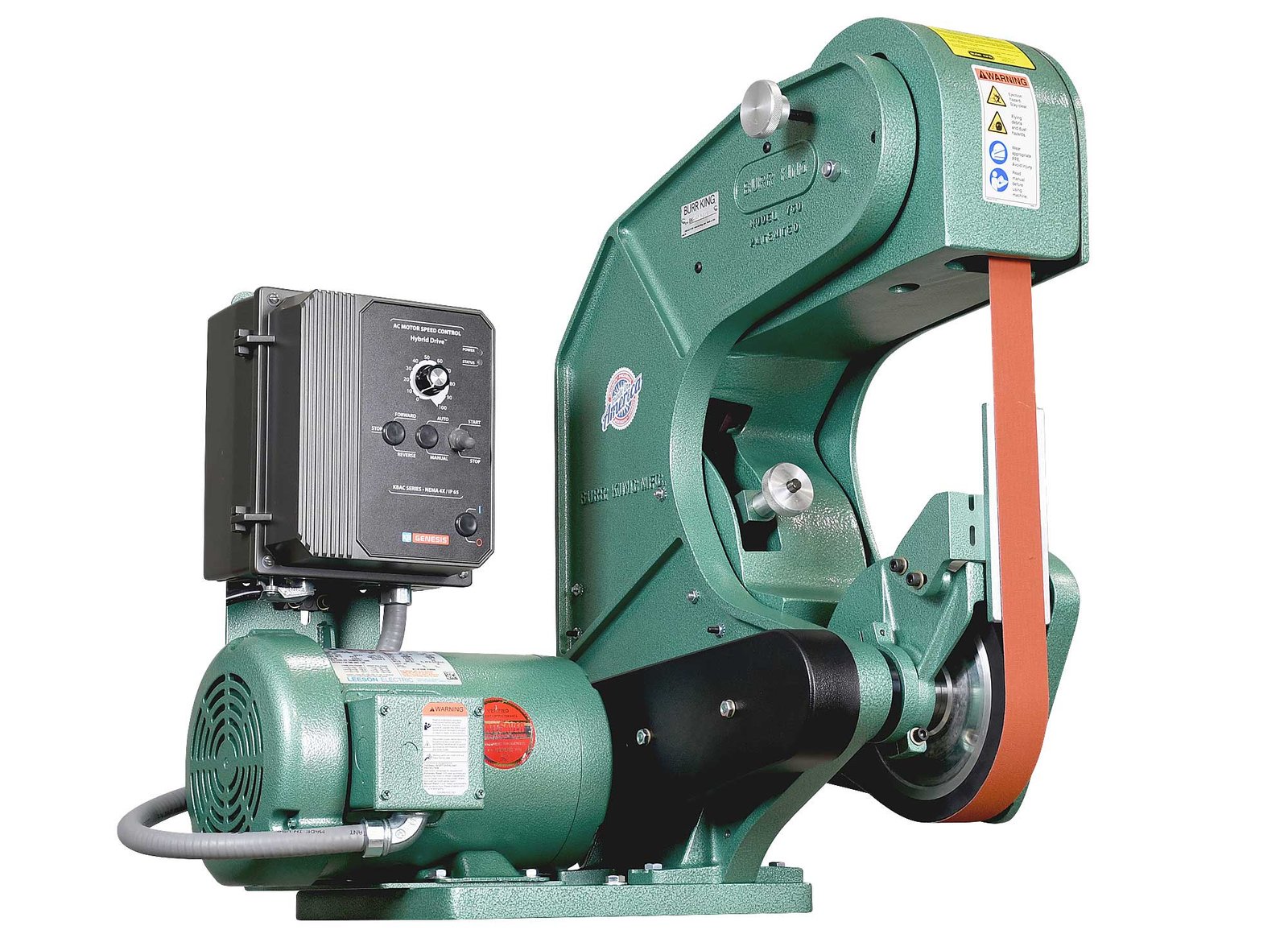

Burr King 1.5” x 60” Three Wheel Model 760 Variable Speed 1.5 HP 120V Single Phase Belt Grinder 72110

Burr King 1.5” x 60” Three Wheel Model 760 Variable Speed 1.5 HP 120V Single Phase Belt Grinder 72110 is a Burr King product in the Grinding & Sanding collection.

Product Details

• Variable Speed: 800-8000 SFPM
• Contact Wheel Size: 7” x 1.5"
• Throat Clearance: 8-7/8”
• Motor: 1.5 HP 120V Single Phase
• Description
• Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension. Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability. Available in easily adjusted variable speed and aggressive single speed.
• Model 760 has a standard 60" belt up to 2" wide and can be bench or pedestal mounted (pedestal not included). It is the largest example of Burr King’s versatile three wheel belt grinders. Model 760 offers contact, backup platen, worktable and loose belt grinding at 8000 SFPM.
• Features
• Rotating parts covered eliminating parts entanglement, greater operator safety
• Contact wheel, platen and workrest support grinding
• New urethane covered idler wheels for longer life
• New idler wheels are electrostatically conductive
• Improved dust extraction
• Slack belt grinding
• New and improved door latching system
• Adjustable belt tension
• Positive belt tracking/patented design
• Quick belt change
• Large throat clearance for enhanced work point access
• Precision machined cast aluminum frame
• Accepts internal grinding attachments
• Accepts nylon, buffing, wire, fiber wheels
• Compact footprint friendly to "cell" manufacturing
• OSHA compliant, enclosed guarding.
• Specifications
• Motor: 1.5 HP 120V Single Phase 50-60Hz
• Wheels: 3
• Contact Wheel Hardness: 55 Duro
• Belt Tension Quick Change Assembly: Yes
• Positive Belt Tracking Adjustment: Yes
• Overall Height, Width, Depth: 26" x 24" x 23"
• Safety Belt Guard: Yes
• Base Area: 10" x 13"
• Steel Backup Platen: 2" x 6" x ¼”
• Adjustable Work Rest: Yes
• Construction: Cast Aluminum
• Bench or Pedestal Mounted: Yes
• Pedestal Included: No
• Main Application: Belt Grinding
• Available Accessories
• Optional Pedestal Mounts
• Dust Scoop
• Magnetic Starter

Specifications

• Manufacturer: Burr King
• SKU: 72110
• Shipping Method: LTL Freight
• Weight: 115 lb
• Dimensions: 24 × 22 × 27.5 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
