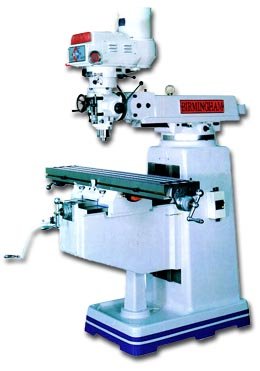

Birmingham Vertical Milling Machine 10″ x 54″ Variable Speed BPV-1054

Birmingham Vertical Milling Machine 10″ x 54″ Variable Speed BPV-1054 is a Birmingham Machine Tools product in the Milling Machines collection.

Product Details

• Class 7 Spindle, R-8 Spindle, Chromed Quill
• Certified Meehanite Castings, Turcite B on Female Surfaces, 10″ x 54″ Table
• Easy to Read Dials, One Shot Lubrication, Dove Tail Ways Table and Knee
• Square Ways on Saddle, Hardened and Ground Table, Hardened and Ground X and Y Slideways
• Description
• This is our choice for those who need more work space. The 10 x 54 table allows you plenty of room for fixtures, multiple vises etc. The saddle is larger and rides on square ways.
• Features
• Dual Table Locks, Cool Ready Base
• Specifications
• Table Size: 10″ x 54″
• Table load capacity: 800 lbs.
• Table T-slot size: 5/8″ x 3″
• Longitudinal travel hand only: 38″
• Longitudinal travel w/power feed: 34 1/4″
• Cross travel: 18″
• Vertical travel: 18″
• Ram travel: 18″
• Quill travel: 5″
• Spindle taper: R8
• Head swivel RH.LH: 90°/90°
• Head tilting f/b: 45°/45°
• Ram turret swivel: 360°
• Spindle motor: 3 hp 3Ø(2 hp 1ph 8 speeds)
• Spindle speeds type: step pulley OPTIONAL
• Spindle speeds (rpm) Step Head: 90-5600 (16 speeds)
• 90-2800 (8 speeds)
• Variable Speed Head: 60-4300 STANDARD….
• Net weight: 3400 lbs
• A x B x C: 89″ x 81″ x 72
• Options:
• Digital read out two and three axis… call for pricing many brands available.
• Power feeds, X, Y and Z
• Vises, Clamp Sets, Collet Sets, Coolant System, Power Draw Bar

Specifications

• Manufacturer: Birmingham Machine Tools
• SKU: BPV-1054
• Shipping Method: LTL Freight
• Weight: 3,400 lb
• Dimensions: 89 × 81 × 72 in
