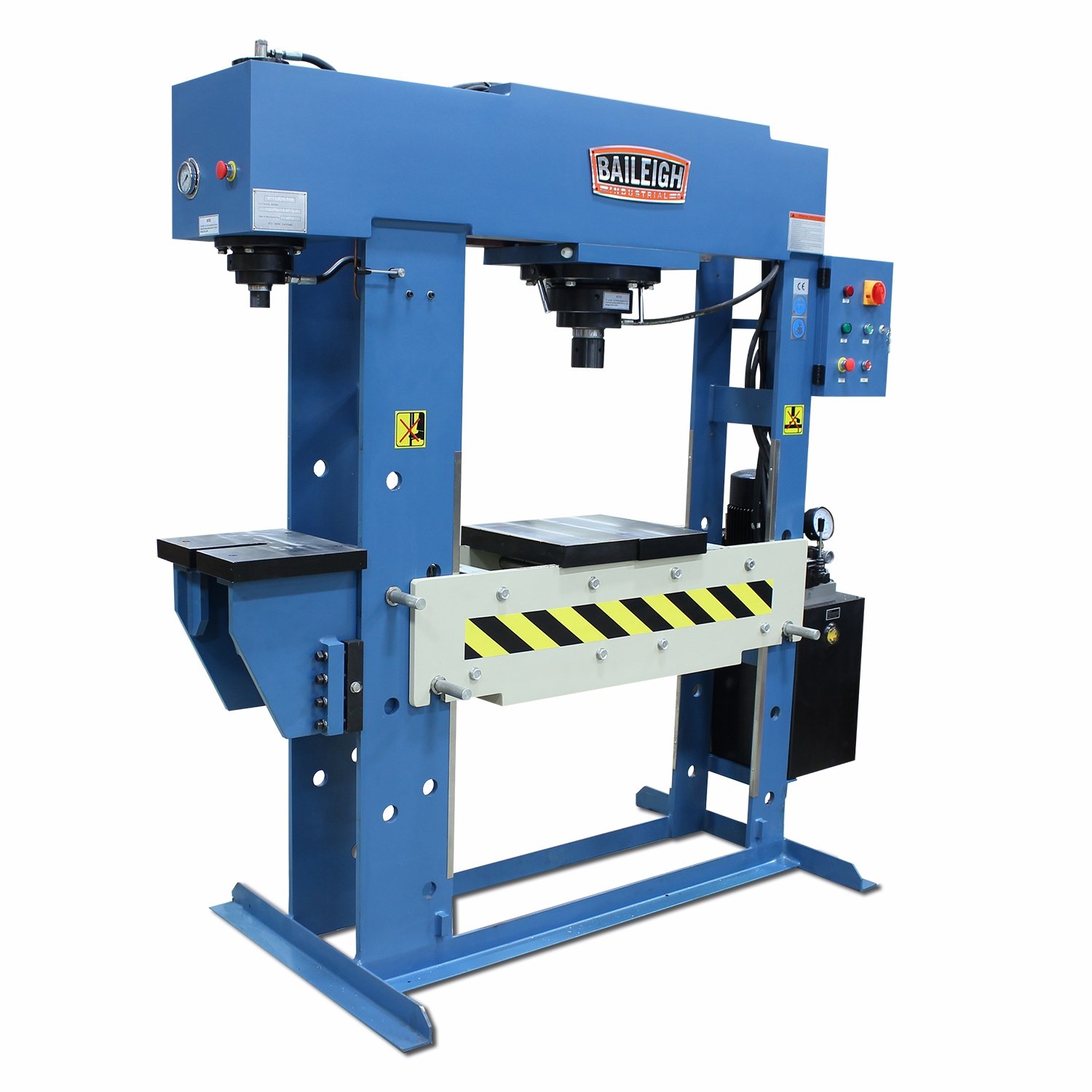

Baileigh Two Station Hydraulic Press HSP-60M-C

Baileigh Two Station Hydraulic Press HSP-60M-C is a Baileigh Industrial product in the Hydraulic Presses collection.

Product Details

• Unique two station design.
• 60-ton capacity on main press.
• 15-ton capacity on side press.
• 41.25” working width on main press
• Description
• If you’ve outgrown your pneumatic press, this hydraulic press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame. Antoher plus of the HSP-60M-C is the abilty to use a second 15 ton station with an open C-frame design. both presses come in one compact design.
• 7.5” cylinder moves left and right within the frame, ideal for off-center parts.
• Controlled by piston-style hydraulic pump.
• Includes 2-piece V-block set.
• Pressure gauge comes standard on both presses.
• Welded steel structure withstands the machine’s full force without flexing.
• Baileigh covers this hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone.
• Specifications
• Return Speed: .303" / sec.
• Motor: 5.25 hp
• Piston Head Diameter: 3.15" (Main), 1.77" (Side)
• Pump Speed: 1.85 gal/min
• Oil Capacity: 13 gal.
• Working Speed: .32" / sec. (Main), .75" / sec. (Side)
• Working Width: 41.3" (Main)
• Maximum Capacity: 60 ton (Main), 15 ton (Side)
• Cylinder Stroke: 11.8" (Main), 11.75" (Side)
• Cylinder Movable: Yes (Main only)
• Cylinder Diameter: 7.55" (Main), 3.95" (Side)
• Distance From Table To Ram: Min. 8" – Max. 38" (Main), Min. 9.84" – Max. 38.97" (Side)
• Power: 220 Volt Three Phase
• Shipping Weight: 2960 lbs.
• Shipping Dimensions: 60" x 36" x 85"
• * specifications subject to change without notice.

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1019290
• UPC: 731325479706
• Shipping Method: LTL Freight
• Weight: 2,960 lb
• Country of Origin: China
