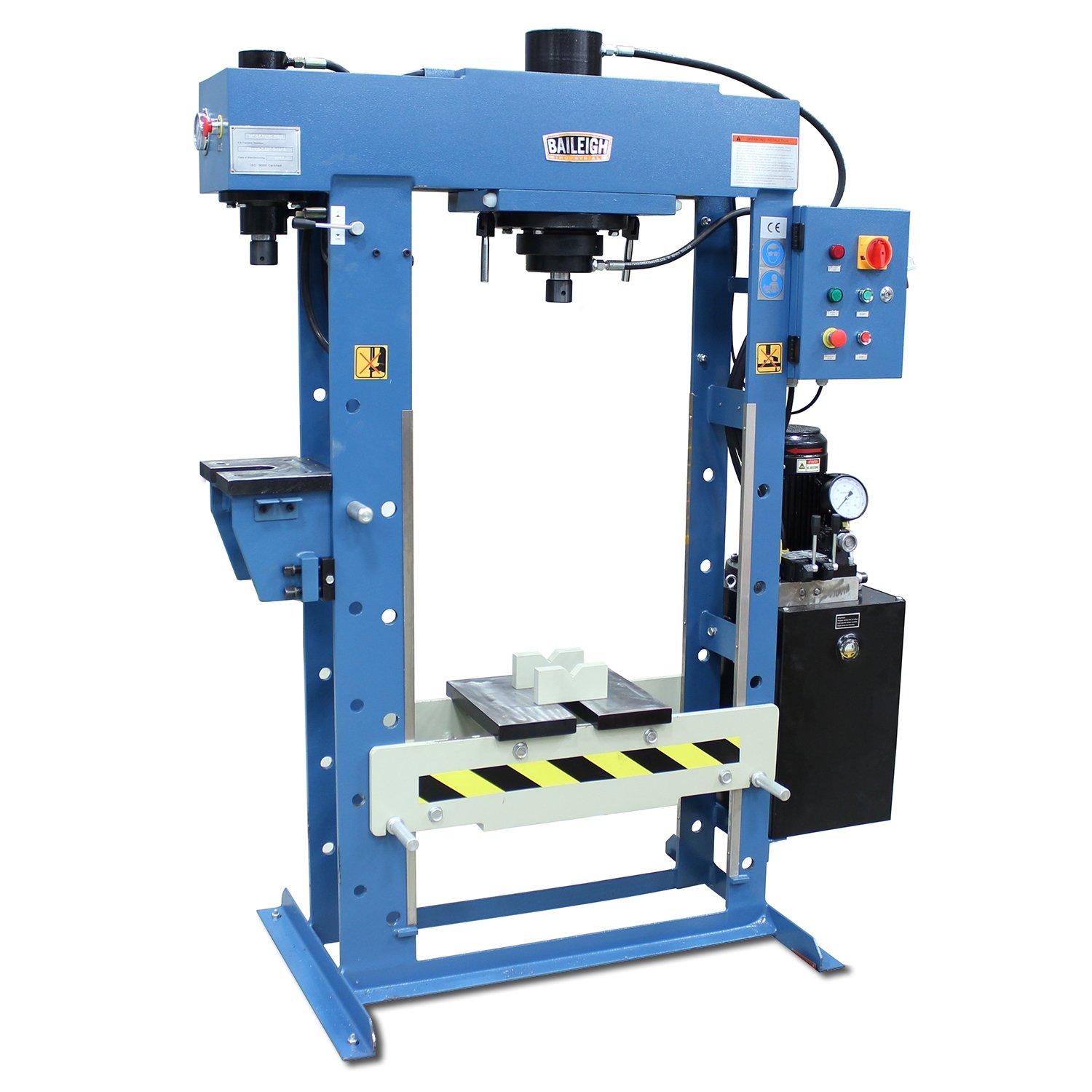

Baileigh Two Station Hydraulic Press HSP-30M-C

Baileigh Two Station Hydraulic Press HSP-30M-C is a Baileigh Industrial product in the Hydraulic Presses collection.

Product Details

• Return Speed .30" / sec. (Main), .60"/ sec. (Side)
• Motor 3 hp
• Piston Head Diameter 2" (Main), 1.97" (Side)
• Pump Speed .95 gal/min
• Description
• With its additional work station, sturdy plate steel construction and piston-style hydraulic pump, this hydraulic H-frame press offers one of the best values on the market.
• 30-ton capacity on main press.
• 15-ton capacity on side press.
• 27.5” working width.
• 5.74” diameter cylinder with 9.8” stroke on main press.
• 2.76” diameter cylinder with 7.75” stroke on side press .
• 3 hp motor runs on 200-volt single-phase power.
• Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
• Comes standard with dual pressure gauges.
• Includes 2-piece V-block.
• Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
• Specifications
• Item Number HSP-30M-C
• Oil Capacity 13 gal.
• Working Speed .25" / sec. (Main), .78" / sec. (Side)
• Working Width 27.25"
• Maximum Capacity 30 ton (Main), 15 ton (Side)
• Cylinder Stroke 9.8" (Main), 7.75" (Side)
• Cylinder Movable Yes (Main)
• Cylinder Diameter 5.74" (Main), 2.76" (Side)
• Distance From Table To Ram Min. 8.25" – Max. 40.25" (Main), Min. 7.25" – Max. 43.25"
• Power 220 Volt Single Phase
• Shipping Weight 926 lbs.
• Shipping Dimensions 63" x 44" x 73"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1019289
• UPC: 731325479690
• Shipping Method: LTL Freight
• Weight: 1,240 lb
• Country of Origin: China
