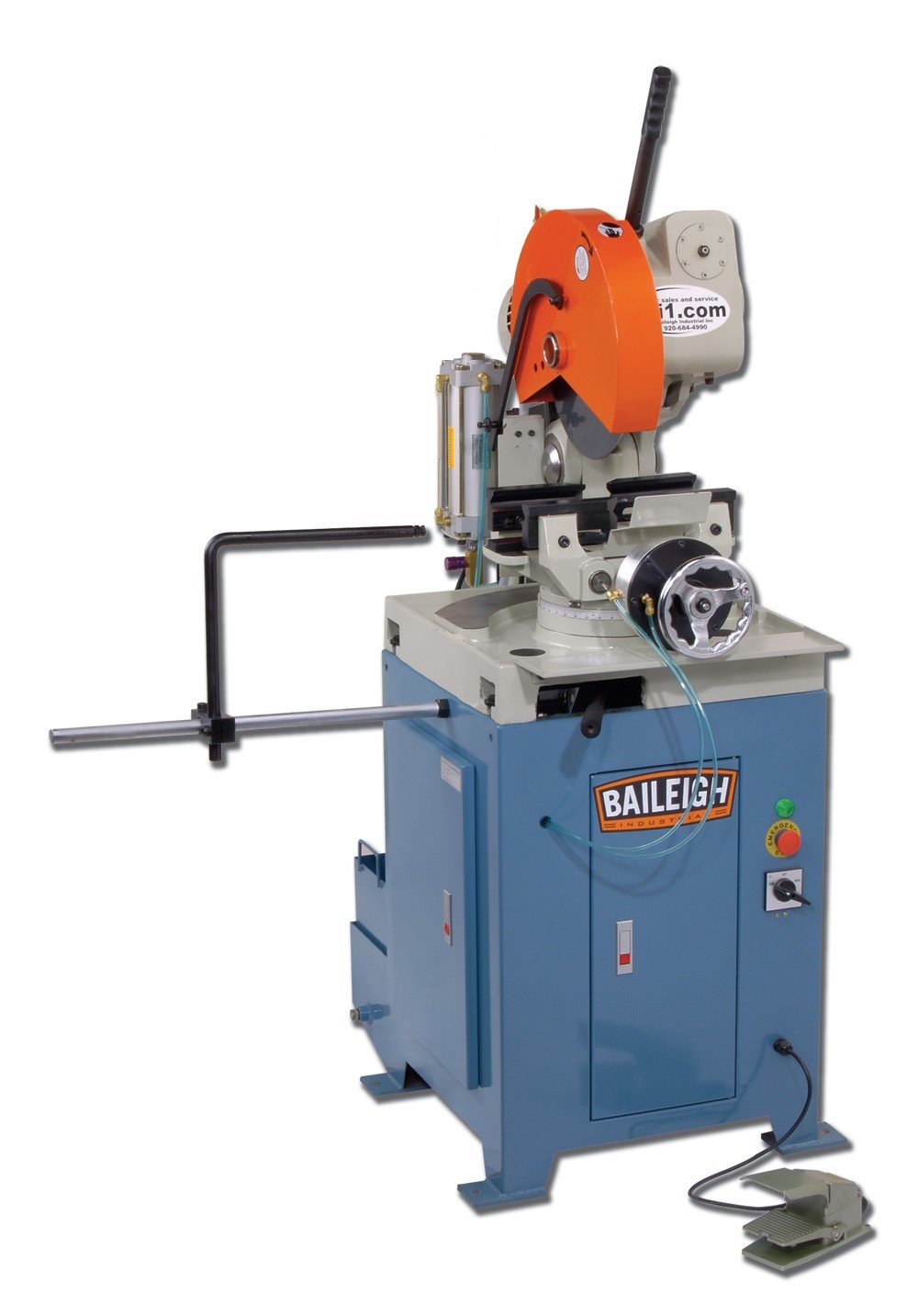

Baileigh Semi-Automatic Cold Saw – CS-350SA

Baileigh Semi-Automatic Cold Saw – CS-350SA is a Baileigh Industrial product in the Cold Saws collection.

Product Details

• 41/4" Capacity
• Pneumatic centering vise, hydraulic blade descent
• Automatic shut-off and vise release
• 220V, 3PH
• Description
• Do you have the need for more production from your current cut off saw? The CS-350SA from Baileigh industrial might just be the right choice. It is a great production saw for any shop that is cutting thin, medium, or thick walled pipe, tubing, extrusions, or solid bar stock. Designed from the CS-350M, this design has proven itself to be one of the best production saws available. The head of the CS-350SA is made from heavy duty cast iron and has a self centering vise that is unique because it keeps the material perfectly centered with the blade for absolutely perfect cuts. The blade of the CS-350SA is direct drive and run by a 4 hp motor that requires 220 volt three phase power. The head features all metal gears that are ground and hardened for long life, and to ensure tight tolerances are kept throughout the life of the saw, the CS-350SA has a backlash adjustment. The CS-350SA has two operating speeds, 26 and 52 rpm.
• Capacity on the CS-350SA cut off saw is also impressive because of its massive 14" blade. It features a 4.25" round capacity at 90 degrees and has the ability to cut 45 degrees to the right and 90 degrees to the left. The 90 degree cut is important if you have any applications that call for slotting.
• Operation of the CS-350SA semi-automatic cold saw is easy as well, place the material in the vise and push the foot pedal. The vise will clamp the material; the blade will start up and lower itself cutting the material. Once the cut is complete the blade will shut off and the head will raise back up. This process save time and effort of the operator and will also make the shop more efficient.
• The CS-350SA is almost always in stock for quick deliveries; give us a call with questions.
• Max. Blade Diameter: 14"
• Operation: Semi-Automatic
• Head Miter: 90º Slotting, 45º Left & Right
• Square Tube at 45º: 2.953" x 2.953"
• Round Tube at 45º: 2.953"
• Rectangle Tube at 45º: 2.953" x 2.362"
• Round Solid at 90º: 2.362"
• Rectangle Tube at 90º: 4.25" x 3.5"
• Square Tube at 90º: 4.25" x 4.25"
• Round Tube at 90º: 4.331"
• Coolant System: Yes
• Slotting Capable: Yes, Left & Right
• Vice Style: Dual Action, Self Centering
• Max Vice Opening: 6"
• Head Style: Pivot
• Arbor Size: 1.26"
• Shear Capacity Plate: .393"
• Motor: 4.0/3.0HP
• Blade Motor: 5HP
• Blade Size: 14"
• Blade Speed: 2 Speeds: 26 / 52 rpm
• Power: 220V, 3PH
• Shipping Weight: 900Ibs
• Shipping Dimensions: 60" x 44" x 48"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1002578
• UPC: 19907702962
• Shipping Method: LTL Freight
• Weight: 900 lb
• Dimensions: 60 × 44 × 77 in
• Country of Origin: Taiwan
