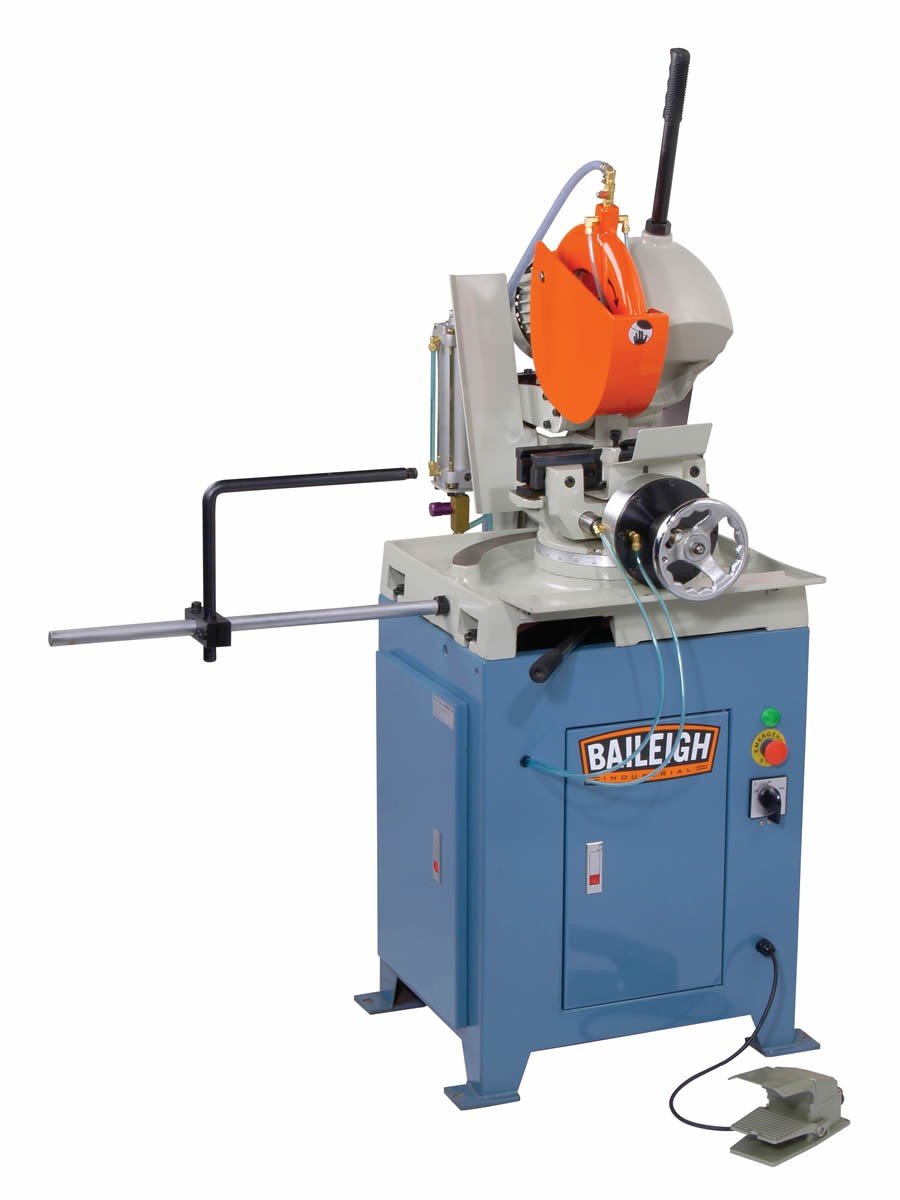

Baileigh Non-Ferrous Metal Cutting Cold Saw CS-355SA

Baileigh Non-Ferrous Metal Cutting Cold Saw CS-355SA is a Baileigh Industrial product in the Cold Saws collection.

Product Details

• Miters left and right
• Centering vise
• Cuts non-ferrous metals
• Blade turns at 3200 rpm
• Description
• Cutting production runs of aluminum or copper? Need pristine results? This semi-automatic cold saw runs at a high speed to make cuts with ripple-free edges every time.
• Accepts up to a 14” blade.
• Turns at 3,200 rpm, perfect for cutting soft metals known for gumming up blades.
• Maximum capacity of 4.25” round tube at 90°.
• Miters 45° right and 90° left.
• 5.5 hp high-speed motor runs on 220-volt 3-phase power.
• Motor drives the blade with a belt to reach the maximum RPM as quickly as possible with few moving parts that could break down.
• Easy to operate: just put the material in the pneumatic (air-powered) vise and step on the foot pedal to clamp.
• Semi-automatic system will start the blade, lower it, and cut the material.
• Once the cut is complete, the blade shuts off and the head automatically rises to the top.
• Automatic descent and return save time, reduce operator effort, and prolong blade life due to the consistent descent speed.
• American-style vise is self-centering, so you don’t have to adjust it when you change between diameters of tube or pipe.
• Vise securely holds the material in place with jaws on both the left and right sides of the blade.
• Design adds semi-automatic features to our manual CS-355M, a time-tested staple of our of cold saw line.
• Stop rod lets you set up repeatable lengths for production runs.
• Cast iron head and base reduce vibrations so that the blade produces accurate cuts for many productive years.
• Rugged steel stand supports the saw base and stabilizes the machine.
• Flood coolant system helps the blade cut more smoothly for cleaner, higher-quality results.
• Coolant system also makes blades last longer and extends the entire circular saw’s lifetime of use.
• Replacement parts are in stock at our Wisconsin headquarters, so we can ship them quickly.
• This circular saw is covered by a 1-year parts warranty.
• We offer lifetime technical support by phone. Call our team of knowledgeable reps whenever you have questions.
• Max. Blade Diameter: 14"
• Operation: Semi-Automatic
• Head Miter: 90° Slotting, 45° Left / 45° Right
• Round Solid at 45°: 1.575"
• Square Tube 45°: 2.953" x 2.953"
• Round Tube 45°: 2.953"
• Rectangle Tube at 45°: 2.953" x 2.362"
• Round Solid at 90°: 2.362"
• Rectangle Tube at 90°: 4.25" x 3.5"
• Square Tube at 90°: 4.25" x 4.25"
• Round Tube at 90°: 4.331"
• Coolant System: Yes
• Slotting Capable: Yes, Left and Right
• Vice Style: Dual Action, Self Centering
• Max. Vice Opening: 6.5"
• Head Style: Pivot
• Arbor Size: 1"
• Motor: 5.5 hp
• Blade Speed: 3200 (rpm)
• Power: 220 V / 3-phase
• Shipping Weight: 798 lbs.
• Shipping Dimensions: 60" x 44" x 48"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1002591
• UPC: 731325403121
• Shipping Method: LTL Freight
• Weight: 860 lb
• Dimensions: 60 × 44 × 48 in
• Country of Origin: Taiwan
