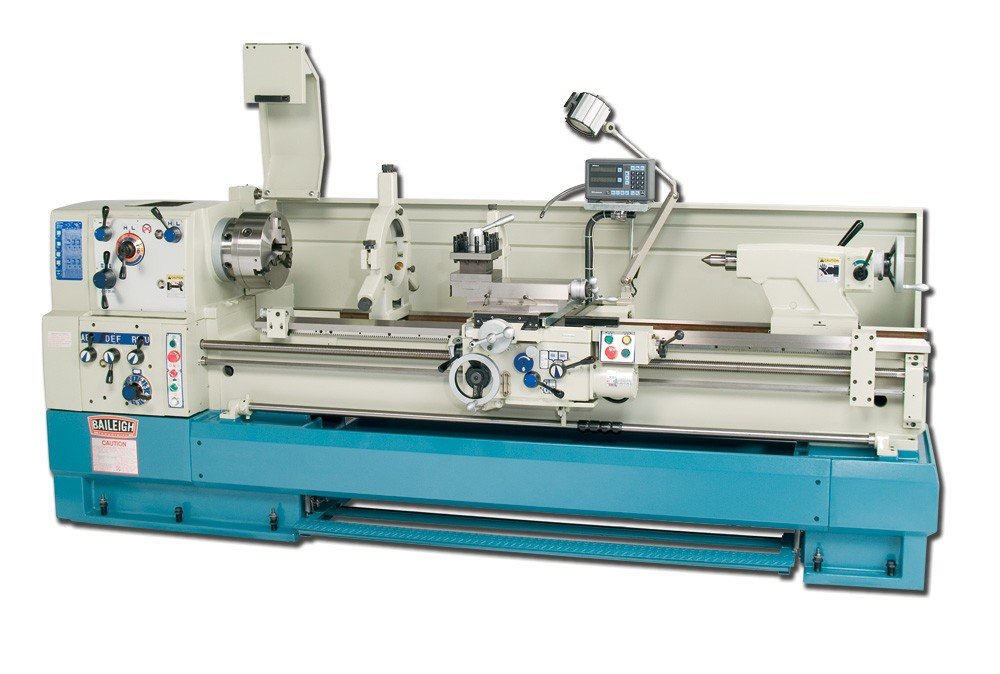

Baileigh Precision Metal Lathe PL-2080

Baileigh Precision Metal Lathe PL-2080 is a Baileigh Industrial product in the Lathes collection.

Product Details

• Capacity: 20″ Swing Over Bed, 80″ Between Centers
• 12-Step Spindle Speed
• 12″-Three-Jaw Chuch
• Mitutoyo 2-Axis DRO – Standard
• Description
• When size of your lathe does matter, look at the PL-2080 precision metal lathe from Baileigh Industrial. This engine lathe has an ample 20″ swing over bed with 80″ between centers and a powerful 15HP motor. This powerful motor turns the precision gear head with different 12 speeds to a range of rpms from 20 to 1500. Everything about the PL-2080 says power.
• The body of the PL-2080 is made from the best cast iron to ensure a rigid and stable platform in which to work. The cast pieces are fully integrated with the head stock, making sure every joint is tight. The ways are polished and have integrated wipers to keep them moving like the day they were new for years to come.
• But just because this is one monster of a machine, don’t think we forgot the features. The PL-2080 precision metal lathe comes with Mitutoyo® 2 axis digital readout system, 12″ 3-jaw universal chuck, longitudinal rapid traverse , 10″ back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, micrometer saddle stop, rear splash guard, and halogen work light.
• Speed: 20 – 1550 rpm
• Spindle Bore: 3.125″
• Spindle Nose: D1-8″
• Threads Diametrical Qty Speed: 50 / 4-112 D.P.
• Threads Imperial Qty Speed: 60 / 2-112 T.P.I
• Threads Metric Qty Speed: 60 / .2-14 mm pitch
• Threads Module Qty Speed: 50 / .2-7 M.P
• Spindle Taper Speed: Morse #5
• Spindle Taper Nose: Morse #7
• Tailstock Quill Dia: 2.9375″
• Tailstock Quill Taper: Morse #5
• Tailstock Quill Travel: 6.3125″
• Compound Rest Travel: 10″
• Center Length: 80.313″
• Center Height: 10″
• Bed Width: 16.125″
• Longitudinal Feeds Metric Qty Speed: 50 / .037 – .983 mm / rev.
• Main Motor: 15 HP
• Longitudinal Feeds Imperial Qty Speed: 50 / .0014″ – .0387″ / rev.
• Lead Screw Diameter: 1.5″
• Lead Screw Thread Pitch: 4 T.P.I
• Max. Swing In Gap Length: 7.0625″
• Max. Swing Over Bed: 20″
• Max. Swing Over Cross Slide: 13″
• Max. Swing In Gap Dia.: 26.375″
• Cross Feeds Imperial Qty Speed: 50 / .0007″ – .01935″ / rev.
• Cross Feeds Metric Qty Speed: 50 / .0185 – .52 mm / rev.
• Cross Slide Travel: 12.5″
• Power: 220V / 3-Phase
• Shipping Weight: 6,050
• Distance Between Centers: 80″
• Shipping Dimensions: 121″ x 54″ x 67″

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006176
• UPC: 19907414889
• Shipping Method: Flatbed
• Weight: 6,050 lb
• Country of Origin: Taiwan
