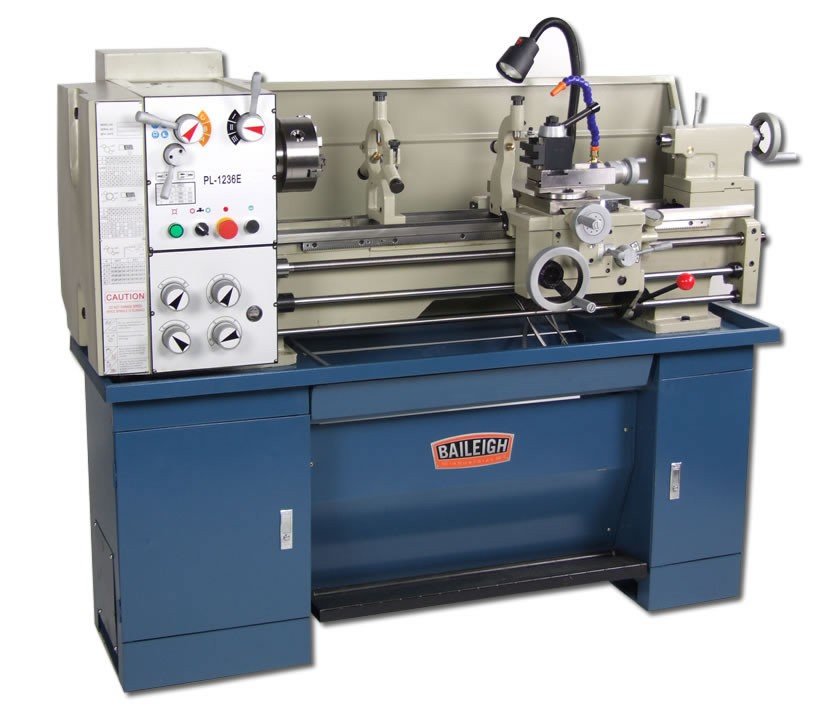

Baileigh Metal Lathe PL-1236E

Baileigh Metal Lathe PL-1236E is a Baileigh Industrial product in the Lathes collection.

Product Details

• 6" Three Jaw Chuck
• 8" Four Jaw Chuck
• Face Plate
• Steady and Follow Rest
• Description
• The PL-1236E is a great metal lathe for anyone that is looking an economical lathe that is high in quality and features. Like all Baileigh Industrial lathes, the PL-1236E gear head metal lathe has an integrated gear system that allows for taping, turning, and polishing with a range of speeds from 70 to 1400 RPM. The PL-1236E is built to last with only top quality components and all ways are ground and hardened to ensure long life.
• The Baileigh Industrial PL-1236E metal lathe is powered by a 220v system.
• As far as entry level metal lathes go, this one has all the features of the more expensive models. The included accessories are, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light.
• Sleeve Travel: 4"
• Spindle Bore: 1.50"
• Spindle Bore Taper: Morse #5
• Sleeve Taper: Morse #3
• Sleeve Diameter: 1.250"
• Range of Inch Threads: 4 – 56 T.P.I
• Metric Thread Range: 0.4 – 7 mm
• Spindle Nose: D1-4"
• Travel Of Cross Slide: 5.312"
• Travel Of Top Slide: 3.250"
• Width Of Bed: 7.125"
• Spindle Speed: 9 (70 – 1400 rpm)
• Swing In Gap: 17"
• Swing Over Bed: 12"
• Swing Over Cross Slide: 7.625"
• Longitudinal Feed Range: 0.002" – 0.0548"/rev
• Lead Screw Thread Pitch: 8 T.P.I
• Length Of Gap: 6"
• Max. Tool Selection: .625" x .625"
• Cross Feed Range: 0.007" – 0.0187"/rev
• Power: 110 / 220V, 1-Phase
• Shipping Weight: 1,232 lbs.
• Distance Between Centers: 3666
• Shipping Dimensions: 67" x 31" x 60"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1016616
• UPC: 731325462708
• Shipping Method: LTL Freight
• Weight: 1,395 lb
• Dimensions: 67 × 31 × 60 in
• Country of Origin: China
