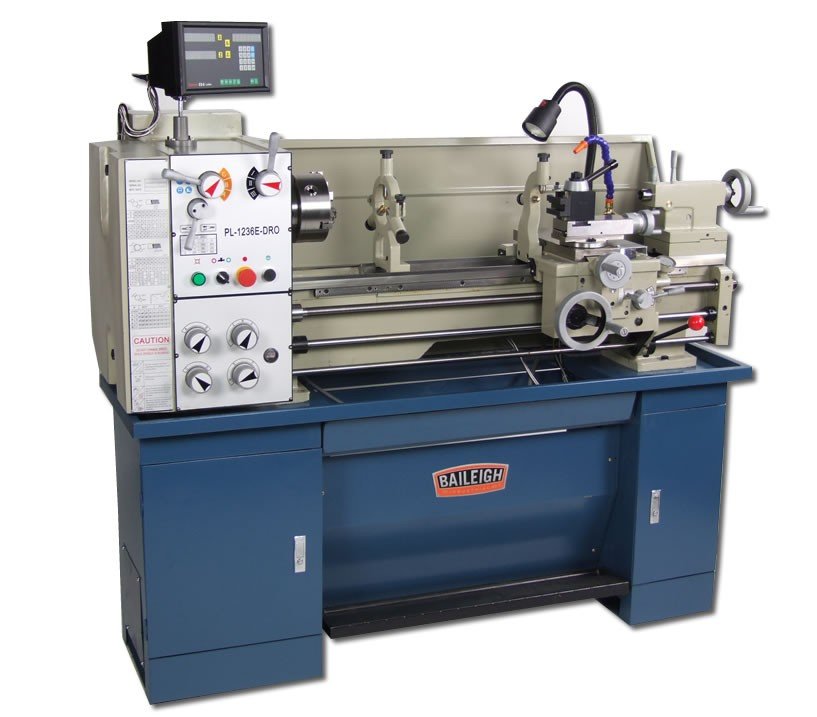

Baileigh Metal Lathe PL-1236E-DRO-1.0

Baileigh Metal Lathe PL-1236E-DRO-1.0 is a Baileigh Industrial product in the Lathes collection.

Product Details

• Integrated digital readout
• Distance Between Centers: 36"
• 70 to 1,400 rpm variable speed
• Input Power: 220V / 1-phase
• Description
• We added a DRO to our popular PL-1236E Metal Lathe, so you can adjust your settings more precisely. This model includes a quick-change tool post and a coolant system. Recommended for small fabricators, schools, or garages.
• Covered by a 1-year parts warranty. You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.
• Features
• Integrated digital readout (DRO) helps you get repeatable results
• Quick-change tool post makes tooling changes more efficient and helps you save time
• Gear system allows for taping, turning, and polishing
• All ways are ground and hardened to ensure long life
• Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed – Capable of standard and metric threading
• 3-jaw and 4-jaw chucks can hold both square and rounded materials
• Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy
• Facing plate lets you shape materials that are large but not long – Bolt your metal to the plate to keep it square and symmetrical
• Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed
• Foot brake helps keep your shop safe and Halogen work light comes standard
• Specifications
• Stock Number: BA9-1016617
• Distance Between Centers (In.): 36"
• Leadscrew Thread Pitch: 8 T.P.I.
• Length of Gap (In.): 6"
• Model Number: PL-1236E-DRO-1.0
• Nose Radius (In.): D1-4"
• Prop 65: Cancer and Reproductive Harm
• Quick Change Collet Size (Mm.): .625" x .625"
• Range of Cross Feeds (IPR): 0.007" – 0.0187"/rev
• Range of Inch Threads (TPI): 4 – 56 T.P.I.
• Range of Longitudinal Feeds (IPR): 0.002" – 0.0548"/rev
• Range of Metric Threads: 0.4 – 7 mm
• Shipping Dimensions (L x W x H) (In.): 69x44x62
• Spindle Bore (In.): 1.50"
• Spindle Diameter (In.): 1.250"
• Spindle Taper: Morse #3
• Spindle Travel (In.): 4"
• Weight (Lbs.): 1420
• Gross Weight: 1420.0
• Net weight: 1420.0

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1016617
• UPC: 731325462715
• Shipping Method: LTL Freight
• Weight: 1,420 lb
• Dimensions: 69 × 44 × 62 in
• Country of Origin: China
