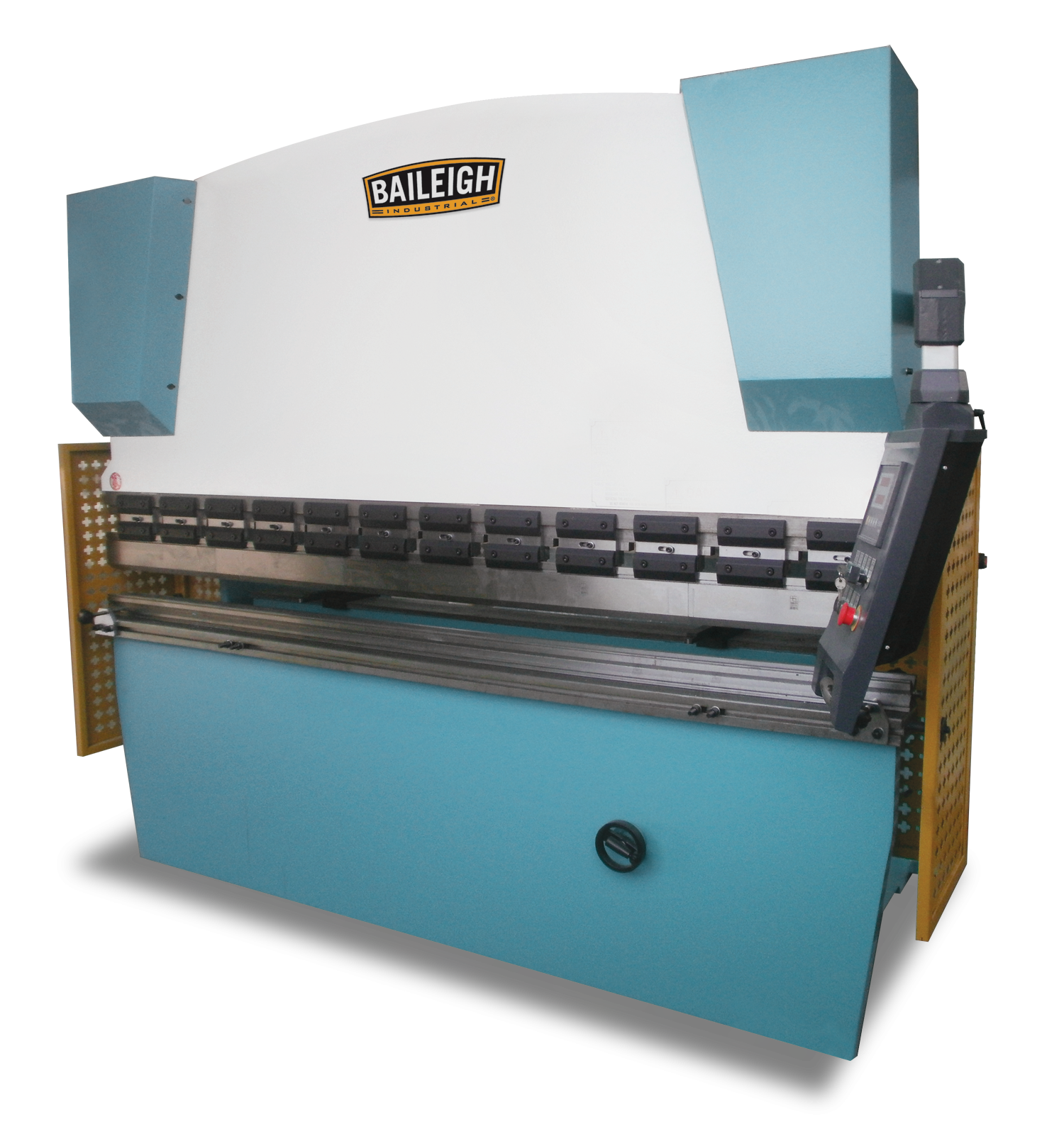

Baileigh Hydraulic Press Brake BP-17913 CNC

Baileigh Hydraulic Press Brake BP-17913 CNC is a Baileigh Industrial product in the Press Brakes collection.

Product Details

• Available In Both 10' and 13' Tables
• Puts Out 179 Tons Of Force
• Multi-Vee Botton Die and Gooseneck Punch Come Standard
• Great For Doing Multiple Bends Over The Entire Length Of The Press Brake
• Description
• Need to bend long lengths of ¼" mild steel? Then the BP-179CNC bending press is the perfect machine for your shop. It is available in both 10 foot and 13 foot lengths. The advantage of the 13 foot length is that it will allow 10 foot sheets to slide between the beams.
• The BP-179CNC is built to withstand the rigors of everyday use and is built to last. The BP-179CNC is made for all steel plate designed to interlock and be welded for maximum rigidly and minimum deformation. A pair of synchronized hydraulic cylinders handles the bending functions on the BP-179CNC and put out a whopping 179 tons of force, thanks to its Rexroth® and NOK® hydraulic components.
• The functions of the back gauge and the bend depth are handled by the Estun® E200 controller. The E200 controller can hold up to 40 programs with 25 bends per program and has an accuracy of .01mm. All of the other main electrical components are supplied by Schneider® from Germany except the light curtains and they are from the German brand Fiessler®.
• The multi vee bottom die and gooseneck punch on the BP-179CNC bending press are standard issue and made from hardened tool steel for long bending life. The three piece top punch is secured to the bending ram through the use of quick release tooling holders. These types of holders are great for doing multiple bends over the entire length of the press brake.
• Table Length: 125 / 157"
• Back Gauge Length: 23.62"
• Max. Pressure: 170 Tons
• Throat Depth: 12.5"
• Stroke Distance: 7"
• Approach Speed: 2.0" / Sec.
• Back Gauge Motor: 1/2 HP
• Bending Speed: .236" / Sec.
• Main Motor: 15 HP
• Distance Between Housings: 100 / 123"
• Distance From Table To Ram: 17.7"
• Power: 220V / 3 Phase
• Shipping Dimensions
• 10 Foot: 134" x 64" x 103"
• 13 Foot: 166" x 64" x 103"
• Shipping Weight
• 10 Foot: 21,280 lbs.
• 13 Foot: 24,640 lbs.

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1000789
• UPC: 731325394351
• Shipping Method: Flatbed
• Weight: 24,000 lb
• Dimensions: 134 × 64 × 103 in
• Country of Origin: China
