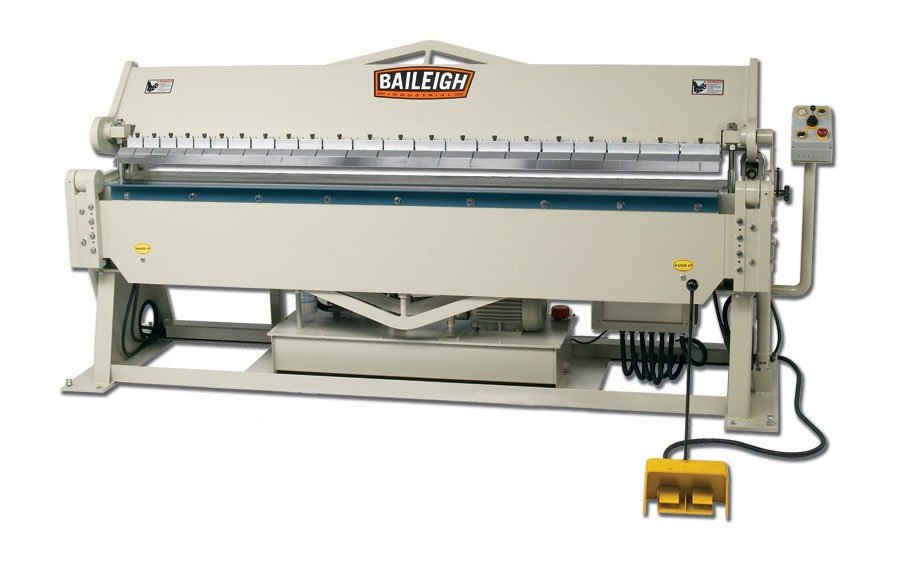

Baileigh Hydraulic Box and Pan Brake BB-9612H

Baileigh Hydraulic Box and Pan Brake BB-9612H is a Baileigh Industrial product in the Sheet Metal Brakes collection.

Product Details

• 96" x 12-gauge mild steel capacity
• Box, pan, and straight
• 22-finger assortment
• Programmable bend angle
• The BB-9612H hydraulic box and pan brake is a powerful machine capable of bending up to 12 gauge sheet metal at a width up to 8' wide. This machine has 6-3", 4-4", 10-5" and 2-6" 6"fingers that allows any fabricator to adjust for different size boxes and pans they wish to fabricate. This machine is rigidly built with an electro welded beam and leaf and further stabilized with truss rod support minimizing any deflection when bending at full capacity. The BB-9612H hydraulic box and pan brake uses powerful industrial grade hydraulics to lift the leaf and can be run in a manual or semi-automatic mode via toggle or the foot pedal controls. The beam is also lifted and clamped hydraulically. This machine has a programmable bend adjustment making this a very production oriented hydraulic sheet metal brake. To get closer between bends the apron can be detached. Like all other Baileigh Industrial sheet metal equipment, this machine has been designed and built to very high standards and offers years of profitable service to the fabricator.
• Motor: 3 hp
• Min Reverse Bend: .630"
• Thickness (SS): 12 ga. (16 ga.)
• Box Depth: 6"
• Beam Adjustment: 1"
• Bend Angle: 0 – 135°
• Finger Sizes: 3" – 4" – 5" – 6"
• Power: 220V / 3-phase
• Shipping Weight: 5,192 lbs.
• Length: 96"
• Shipping Dimensions: 132" x 46" x 67"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1021004
• UPC: 731325489927
• Shipping Method: LTL Freight
• Weight: 4,060 lb
• Dimensions: 132 × 46 × 67 in
• Country of Origin: Taiwan
