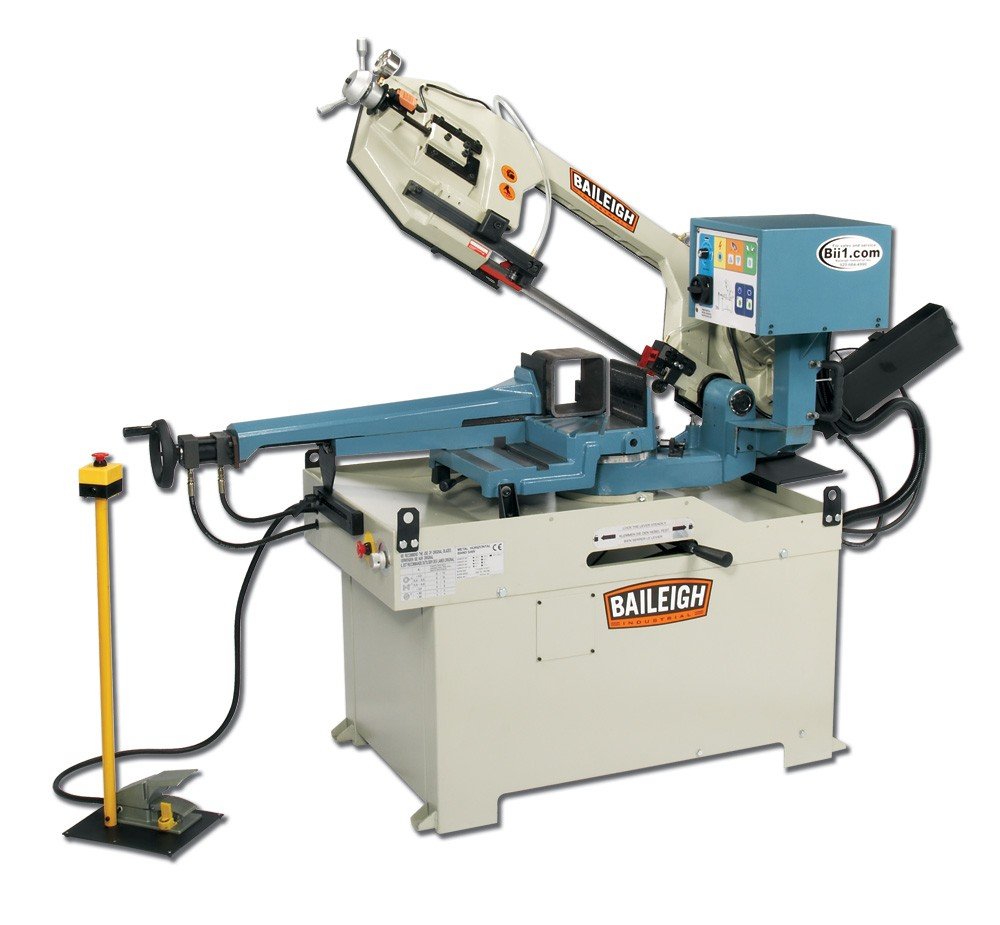

Baileigh Gear Driven Dual Miter Band Saw BS-350SA

Baileigh Gear Driven Dual Miter Band Saw BS-350SA is a Baileigh Industrial product in the Band Saws collection.

Product Details

• Dual swivel head – 0-60º, 45ºL
• 220V, 1PH
• 2HP
• 10" Round Capacity
• The BS-350SA semi-automatic band saw is the perfect saw in shops where light production is normal. The BS-350SA runs on 220V single phase power and has a cutting capacity of 10-1/2", but the best part of the BS-350SA is that is has a full cast iron head and bow can miter 60 degrees right and 45 degrees left.
• The BS-350SA blade motor features a 3hp motor which is driven by an AC inverter built to deliver the reliability that most shops demand. The best thing about being inverter driven is that you can make speed changes on the fly from 66-280 fpm. Being able to change speeds help blade life and give the best possible cut. Other feature of the BS-350SA that help achieve great cuts are full cast iron head and bow that are machined to exacting tolerances, precision ball bearing guides, and a large capacity flood coolant system.
• The BS-350SA uses an industrial grade hydraulic system to power all semi-automatic actions. These actions include raising and lowering of the head as well as clamping and releasing the vise. These actions are initiated with the use of a foot pedal and settings are set at the control panel.
• The best part is that the BS-350SA semi-automatic band saw is typically in stock for fast deliveries.
• Return: Hydraulic
• Miter Adjustment: Dual Swivel Head
• Miter Angle: 0 – 60º , 45ºL
• Motor: High Torque 1.5Kw (AC)
• Motor Hp: 2
• Capacity Round 90 x 45 x 60 x 45L: 10.63" x 9.45" x 6.3" x 8.28"
• Table Height: 35"
• Capacity Rectangular 90 x 45 x 45L: 13.77" x 8.66" x 9.45" x 6.3" x 7.3" x 4.33"
• Capacity Square 90º x 45º x 60º: 10.24" x 8.66" x 5.9" x 7.09"
• Blade Guide: Carbide x Roller
• Blade Size (H x W x L): 1" x .035" x 124.5"
• Blade Speed (fpm): 66 – 280 Variable
• Descent Control: Pressure Assist Hydraulic
• Drive: Gear
• Power: 220V / 1-Phase
• Shipping Weight: 1,167 lbs.
• Shipping Dimensions: 72" x 30" x 66"
• Dimensions L x W x H: 72" x 30" x 66"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1001570
• UPC: 731325398526
• Shipping Method: LTL Freight
• Weight: 1,080 lb
• Country of Origin: Taiwan
