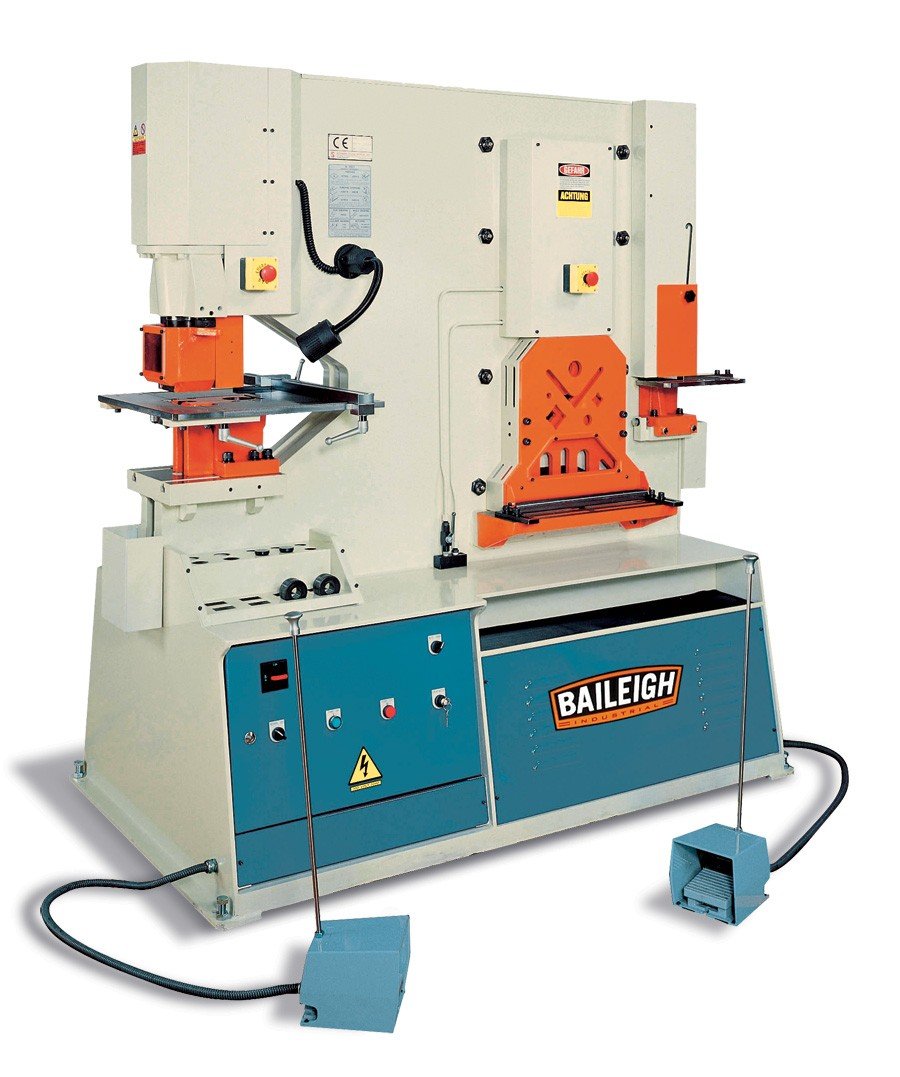

Baileigh 95 Ton Iron Worker SW-95

Baileigh 95 Ton Iron Worker SW-95 is a Baileigh Industrial product in the Ironworkers collection.

Product Details

• Dual Cylinder / Dual Operator Design
• Oversize Tables With Quick Adjust Material Stops
• Electric Back Gauge With Adjustable Timer
• Quick Release Coupler Enables Easy Tool Changeover
• An ironworker is a staple for any metal working shop, the must have do all tool. And when those shops are looking to increase productivity, they look to a dual operator style machine for the answer. With 95 tons of punching power and 123 tons of shearing and notching pressure, the SW-95 is the perfect option. Being a dual operator machine, the SW-95 will allow two operators on each end of the machine to work simultaneously without loss of power at either station.
• The SW-95 is a true five station ironworker, these stations include punching, notching, flat bar shearing, angle shearing, and bar shearing. Although these stations are not unique to the SW-95, what is unique is the way in which they function. The SW-95 uses all vertical movement to perform all functions. This is achieved through the use of vertical hydraulic cylinders. The big advantage to the vertical movement is less material waste due to less clearance being needed and punch tooling will last longer as the stress is spread out over the entire circumference of the punch instead of just one edge.
• The SW-95 dual operator ironworker is constructed from heavy structural plate for rigidity. The punch station has an extra deep 16" throat depth and the shear station has hydraulic hold downs for safe operation. Other great features of the SW-95 are an electric back gauge, swing away stripper, oversized work tables, foot pedal operation, and waste buckets. Many different tooling sets are available as well.
• FEATURES:
• -Dual Cylinder/Dual Operator Design -True vertical movement at all stations -Hydraulic material hold downs at shear station -Oversize tables with adjustable material stops -Two position die holder on easy adjust T-slots -Electronic stroke control -Swing away material stripper -Material waste bins -Electric back gauge with adjustable timer -Jog feature for easy tooling setup -Quick release coupler enables easy tool changeover -Safety interlock switches -Halogen work light
• SPECIFICATIONS:
• PUNCHING:
• -Punching Pressure: 95 tons -Punch Capacity: 1.062" x .875" (Diameter x Thickness) 2" x .5" -Throat Depth: 16" -Max. Stroke Length: 3.93" -Cycles/Min. 38 @ 15mm -Working Height Up to Die: 41.3"
• FLAT SHEARING:
• -Flat Bar Shearing: 16" x .75" -Blade Length: 16.125" -Angle Flange Trim: 4" -Working Height: 28.5"
• ANGLE SHEARING:
• -At 90-degrees Shearing: 5.125" x 5.125" x .5" -Working Height: 40.9"
• BAR SHEARING:
• -Round Bar Shear: 1.75" -Square Bar Shear: 1.75" x 1.75"
• NOTCHING:
• -Rect. Notcher (WxDxT): 2" x 3.5" x .5" -Working Height: 41.3"
• SPECIAL TOOLING:
• -Single Vee Press Brake (LxT): 9.875" x .625" -Multi-Vee Press Brake (LxT): 19.625" x .187" -Angle Bending: 4" x .312" -Pipe Notching: 4.4" -Large V-Notcher (Side x Side x T): 5.75" x 5.75" x .375" -Vee-Notcher (Side x Side x T): 4.1" x 4.1" x .5"
• OTHER:
• -Electrical Requirements: 15 Hp-220V 3-phase -Net Weight (Apr.): 6,050 lbs. -Dimensions (LxWxH): 70.6" x 40.1" x 73.4"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1007865
• UPC: 731325417869
• Shipping Method: Flatbed
• Weight: 6,050 lb
• Dimensions: 71 × 41 × 74 in
• Country of Origin: Taiwan
