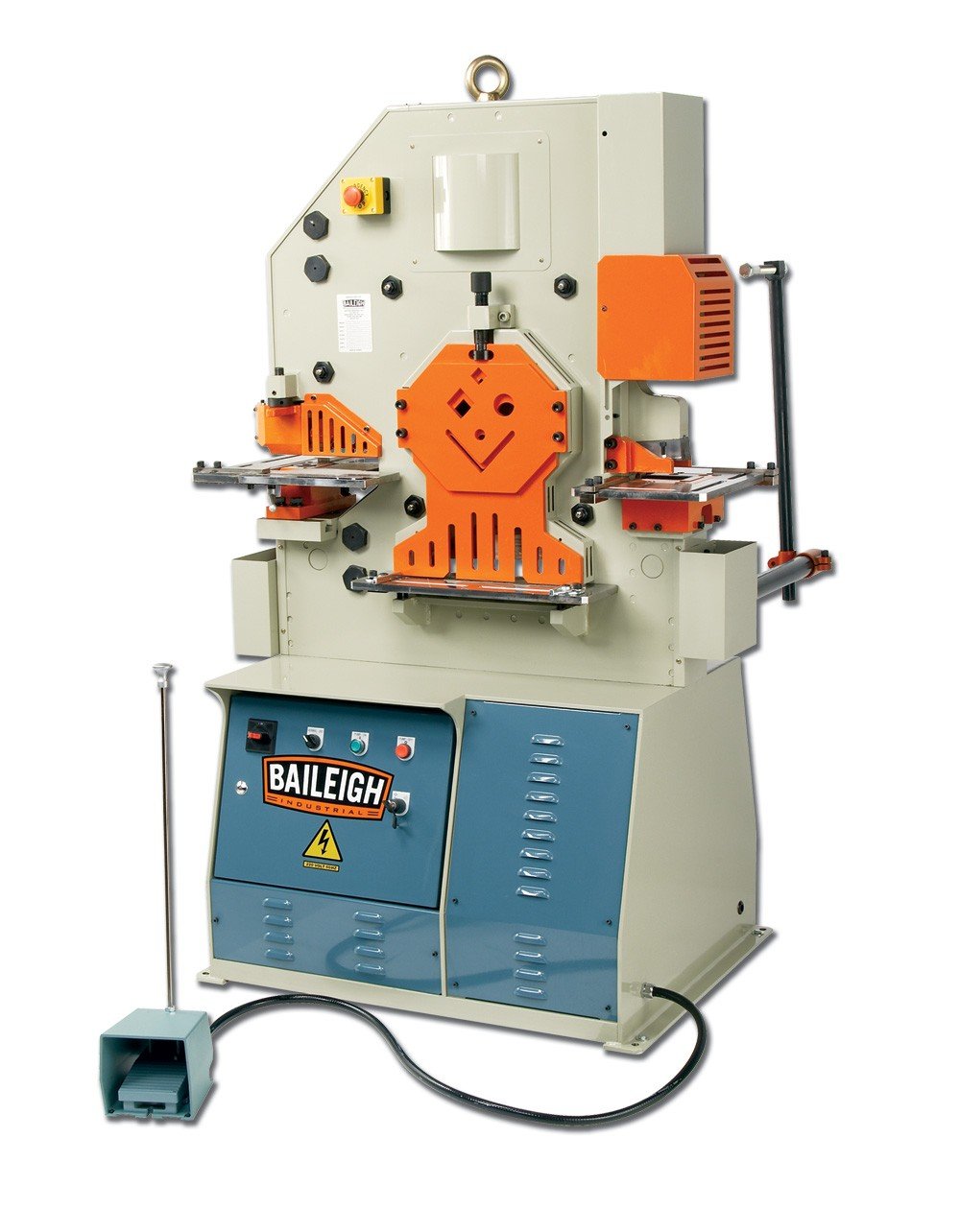

Baileigh 62 Ton Ironworker SW-621

Baileigh 62 Ton Ironworker SW-621 is a Baileigh Industrial product in the Ironworkers collection.

Product Details

• 62 Ton
• Single Phase 220 Volt
• Easy Tooling Setup
• Electronic Stroke Control
• The SW-62 ironworker from Baileigh Industrial is the next step in Baileigh Industrial hydraulic ironworkers. It takes the concept of the SW-50 and adds a little more power or capacity. This 62 ton has industry leading features, such as vertical movement for all stations and oversized work tables. The heavy duty, versatile design of the SW-62 iron worker offers 62 tons of true vertical pressure to each of its five integrated stations, making the SW-62 able to power through most any requirement that may arise. The vertical movement of the SW-62 prolongs tooling life by producing less deformation and cleaner cuts than the competition. The SW-62 iron worker is manufactured to the highest standards in the industry, ensuring a lifetime of use in any environment.
• The SW-62 is available in both single and three phase power versions depending on your power requirements. Making this hydraulic ironworker is the perfect addition to any fabrication or machine shop where punching, shearing and notching is required.
• The Baileigh Industrial SW-62 steel worker comes standard with oversized working tables, quick change punch system, wastebaskets, swing away material stripper, back gauge, and much more. Giving the SW-62 the best bang for the buck in its class.
• FEATURES:
• -True vertical movement at all stations -Hydraulic material hold downs at shear station -Oversize tables with adjustable material stops -Electronic stroke control -Swing away material stripper -Material waste bins -Jog feature for easy tooling setup -Quick release coupler enables easy tool changeover -Safety interlock switches
• SPECIFICATIONS:
• PUNCHING:
• -Punching Pressure: 62 tons -Punch Capacity: 1.125" x .625" (Diameter x Thickness) 1.625" x .437" -Throat Depth: 8" -Max. Stroke Length: 2" -Cycles/Min. 28 @ 15mm -Working Height Up to Die: 39.5"
• FLAT SHEARING:
• -Flat Bar Shearing: 13.50" x .625" -Blade Length: 14.125" -Angle Flange Trim: 4" -Working Height: 31.5"
• ANGLE SHEARING:
• -At 90-degrees Shearing: 4" x 4" x .375" -Working Height: 40"
• BAR SHEARING:
• -Round Bar Shear: 1.5" -Square Bar Shear: 1.5" x 1.5"
• NOTCHING:
• -Rect. Notcher (WxDxT): 2" x 3.5" x .312" -Working Height: 40"
• SPECIAL TOOLING:
• -Single Vee Press Brake (LxT): 6.312"" x .312" -Multi-Vee Press Brake (LxT): 9.875" x .156" -Angle Bending: 2.5" x .312" -Pipe Notching: 2.5" -Large V-Notcher (Side x Side x T): 3.5" x 3.5" x .312" -Vee-Notcher (Side x Side x T): 4.1" x 4.1" x .6"
• OTHER:
• -Electrical Requirements: 5 Hp-220V Single Phase -Net Weight (Apr.): 2,310 lbs. -Dimensions (LxWxH): 45" x 30" x 68"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1007809
• UPC: 731325417500
• Shipping Method: LTL Freight
• Weight: 2,310 lb
• Country of Origin: Taiwan
