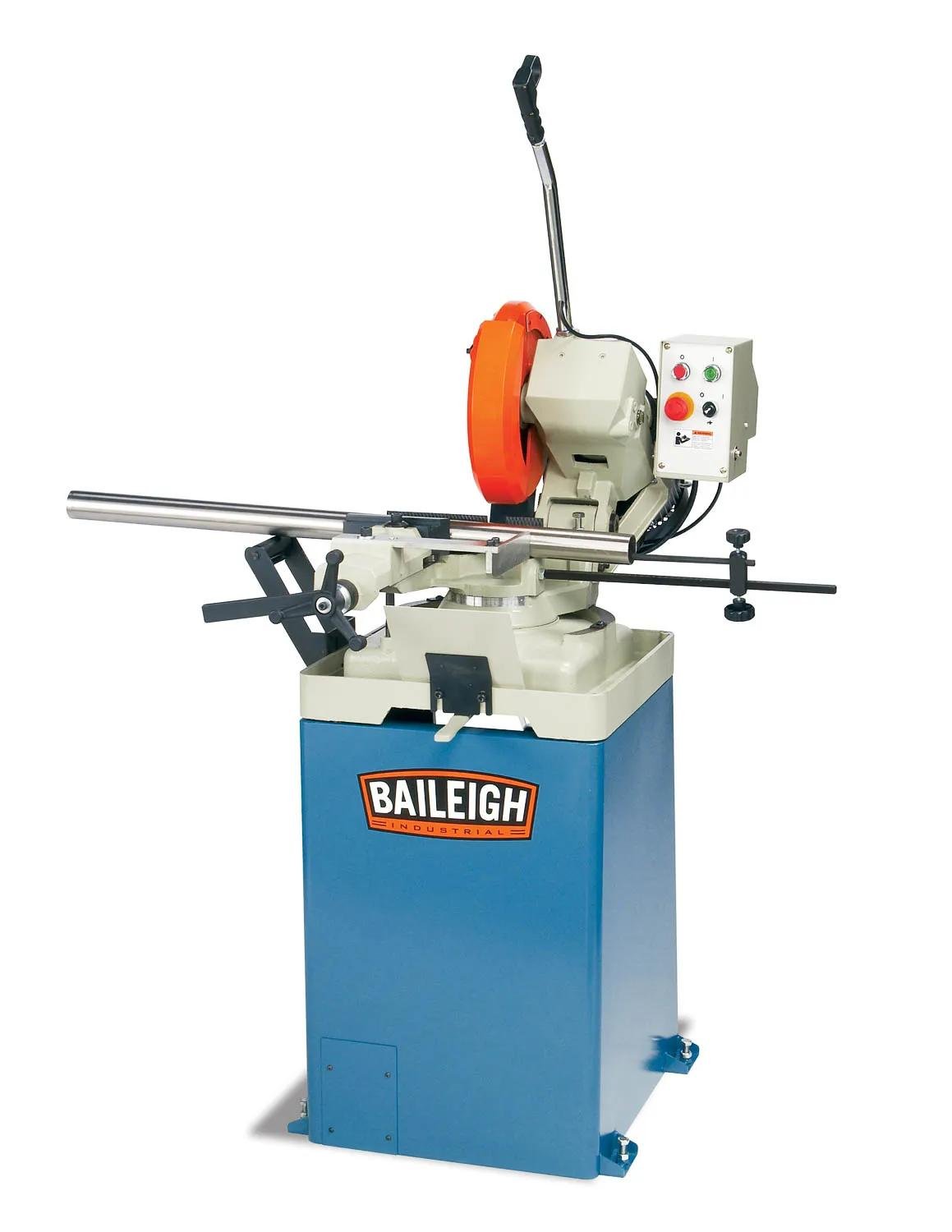

Baileigh 12.5 In Single Phase Manual Cold Saw CS-315EU

Baileigh 12.5 In Single Phase Manual Cold Saw CS-315EU is a Baileigh Industrial product in the Cold Saws collection.

Product Details

• 220V 1-phase manual cold saw
• 12.5" blade
• 3.5" round tube capacity
• 45° Mitering Capability
• Description
• Heavy-Duty Cutting Performance: The Baileigh CS-315EU is a manually operated circular coldsaw engineered for industrial fabrication shops that require reliable, chatter-free cuts in solids, tubing, and pipe. Its powerful 2.5 HP motor and rigid base deliver consistent performance across a wide range of materials.
• Precision & Control: Designed with a European-style vise featuring serrated jaws and a taper-lock clamp, the CS-315EU secures material firmly for accurate, repeatable cuts. The saw head can miter 45° left and right for versatile cutting angles.
• Integrated Coolant System: A powerful integrated coolant pump delivers continuous lubrication to the blade to reduce heat, clear chips, and extend blade life, while the sturdy cast-iron base minimizes vibration for precise cuts.
• Features
• Blade size: Accepts a 12.5″ (315 mm) cold saw blade.
• Motor power: Driven by a 2.5 HP motor for industrial cutting performance.
• Input power: Requires 220 V single-phase power.
• Blade speed: 52 RPM blade rotation for optimal cold cutting.
• Capacity: Up to 3.5″ round tube at 90° cutting capacity.
• Miter range: Miters from 45° left to 45° right.

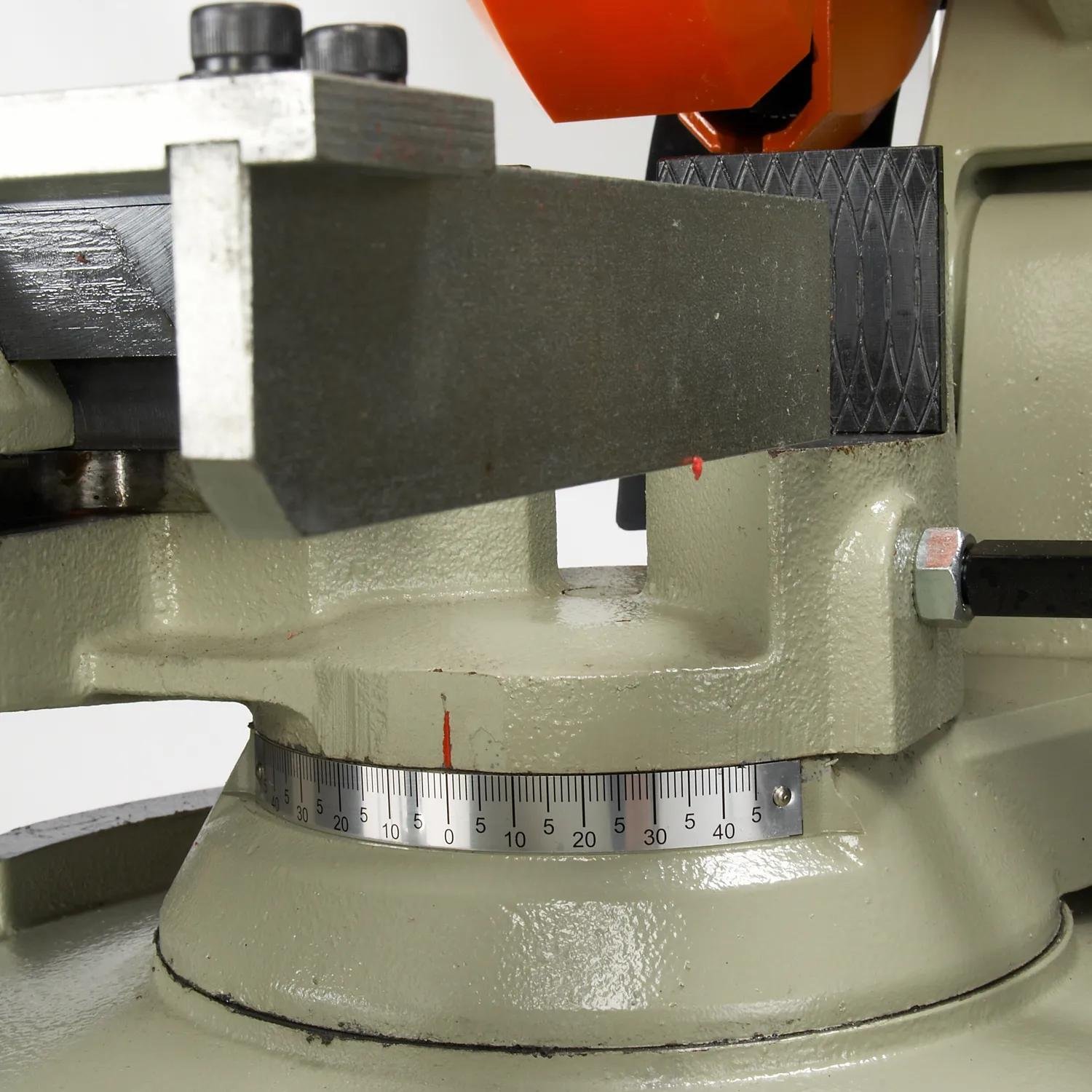

• Vise style: European-style vise with taper lock and serrated jaws for secure material hold.
• Coolant system: Integrated coolant pump to lubricate blade and remove chips.
• Construction: Rigid cast-iron base and molded steel stand for stability.
• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
• Specifications
• SKU: BA9-1002450
• Gross Weight: 405.0
• Horse Power (HP): 2.5
• Input Power: 220V Single Phase
• Miter Angle Range: 45 R, 45 L
• Model Number: CS-315EU
• Motor HP: 2.5
• Motor Phase: Three
• Motor Speed: 52 RPM
• Net weight: 405.0
• Notch Capacity OD: 3.5 in.
• Product Type: Machines
• Prop 65: Cancer and Reproductive Harm
• Warranty: 1 Year

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1002450
• UPC: 731325402049
• Shipping Method: LTL Freight
• Weight: 405 lb
• Dimensions: 48 × 31 × 44 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
